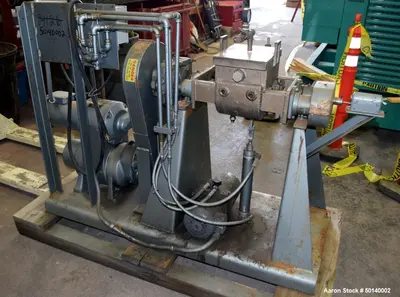

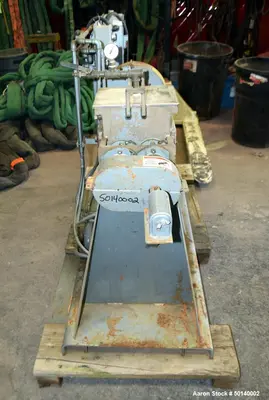

USED PAUL O ABBE 1SBM

Manufacturer Information:

Brand: Paul O. Abbe

Model: 1SBM

Type: Lab Double Arm Mixer

Material: 316 Stainless Steel Bowl, Carbon Steel Jacket

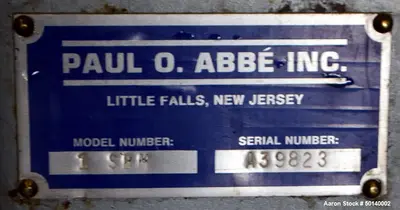

Serial #: A39823

Description:

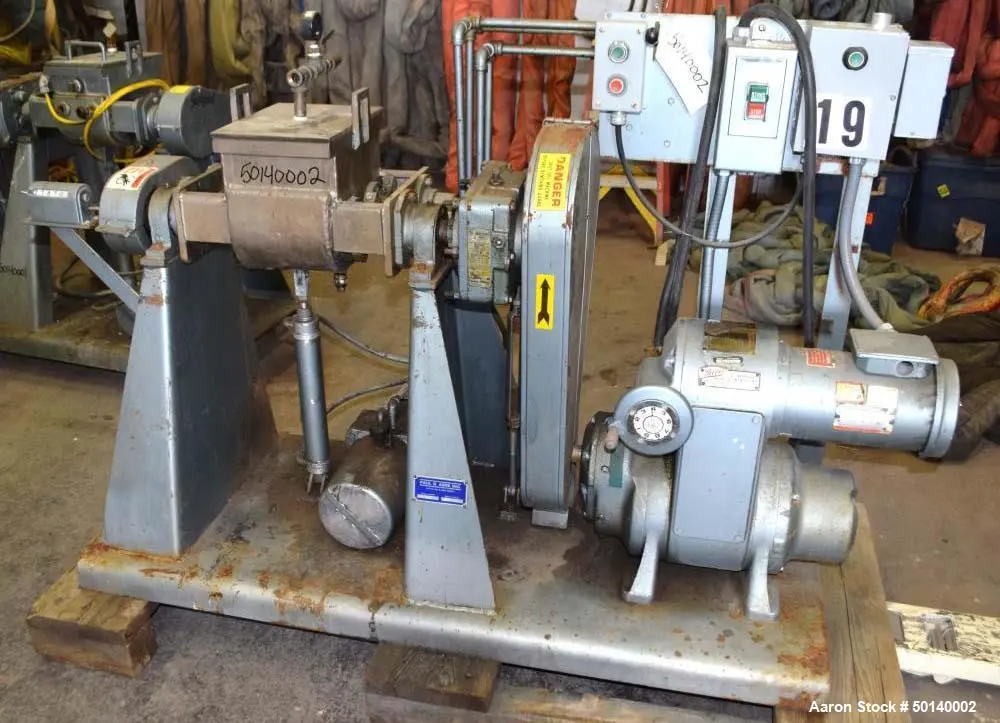

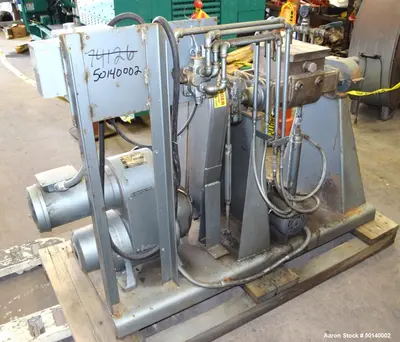

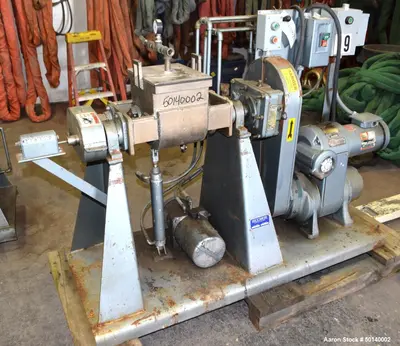

This used Paul O. Abbe Model 1SBM lab double arm mixer is a high-performance small-batch mixing solution, designed for precise blending of high-viscosity materials in pharmaceutical, chemical, food, and industrial applications.
Featuring a 1-gallon operating capacity (2-gallon total capacity), the 316 stainless steel mixing bowl is jacketed with carbon steel, rated for 14 PSI, providing temperature-controlled mixing for heat-sensitive materials.

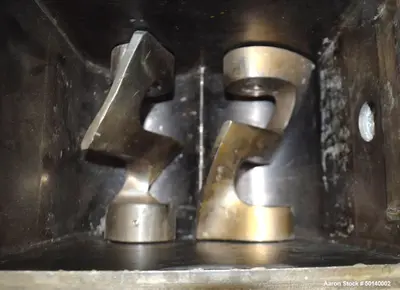

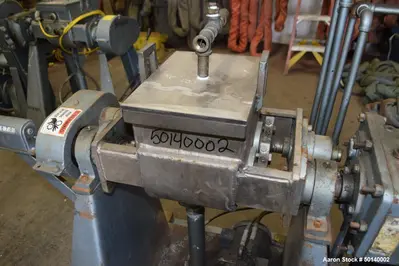

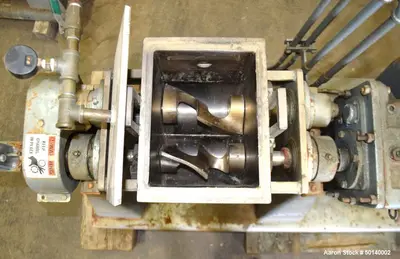

The overlapping sigma blades operate at a consistent speed of 53.9 to 13.9 RPM for both front and rear blades, ensuring thorough blending and uniform consistency. The mixer includes a flat top cover and is equipped with a single ram hydraulic tilt with power pack, allowing for easy discharge of mixed materials.

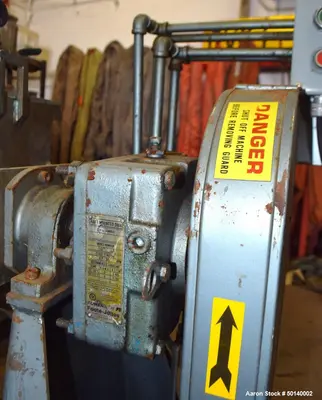

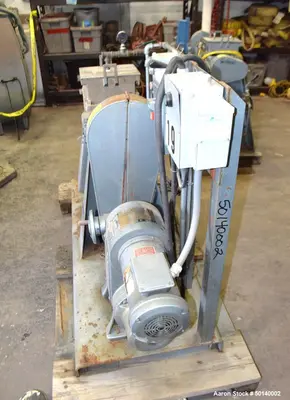

Powered by a 2 HP, 3/60/230/460V, 1725 RPM variable speed motor with reducer, this unit ensures efficient and reliable operation. The entire system is mounted on legs with a stable base, making it suitable for laboratory and small-scale industrial applications.
Specifications:

Model: 1SBM

Operating Capacity: 1 Gallon

Total Capacity: 2 Gallons

Material: 316 Stainless Steel Bowl

Jacket: Carbon Steel, Rated 14 PSI

Bowl Dimensions: 7” L x 9” W x 7-3/4” D

Blades: Overlapping Sigma Blades

Blade Speeds:

Front Blade: 53.9 to 13.9 RPM

Rear Blade: 53.9 to 13.9 RPM

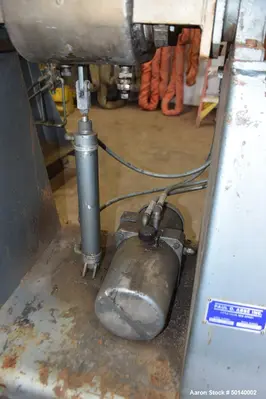

Tilt Mechanism: Single Ram Hydraulic Tilt with Power Pack

Cover Type: Flat Top Cover

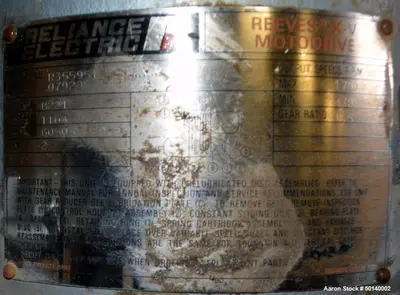

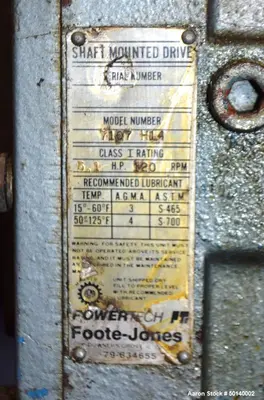

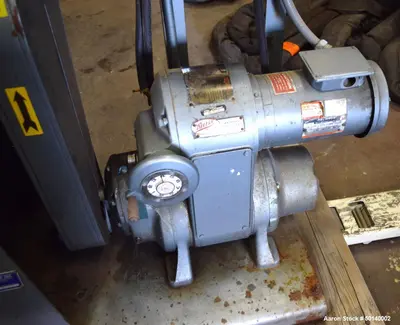

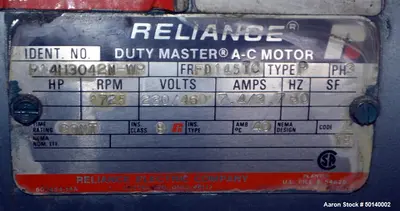

Motor: 2 HP, 3/60/230/460V, 1725 RPM Variable Speed Motor with Reducer

Mounting: Legs with Base

Serial #: A39823

Applications:

Pharmaceutical & Biotech – Mixing of active ingredients, creams, and ointments

Chemical Processing – Blending of adhesives, sealants, and reaction compounds

Food Processing – Mixing of confectionery pastes, doughs, and emulsions

Cosmetics & Personal Care – Homogenization of skincare products and lotions

Research & Development – Small-batch pilot-scale processing

What Products Would This Be Used For?

Pharmaceutical creams, gels, and ointments
Food pastes, confectionery fillings, and emulsions
Adhesives, epoxies, and chemical formulations
Cosmetic lotions, balms, and personal care products
Polymer and resin blending
