USED PAUL O ABBE 1BSB

Manufacturer Information:

Brand: Paul O. Abbe

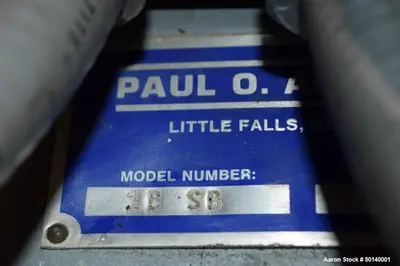

Model: 1BSB

Type: Lab Double Arm Mixer

Material: 316 Stainless Steel Bowl, Carbon Steel Jacket

Serial #: A41282

Description:

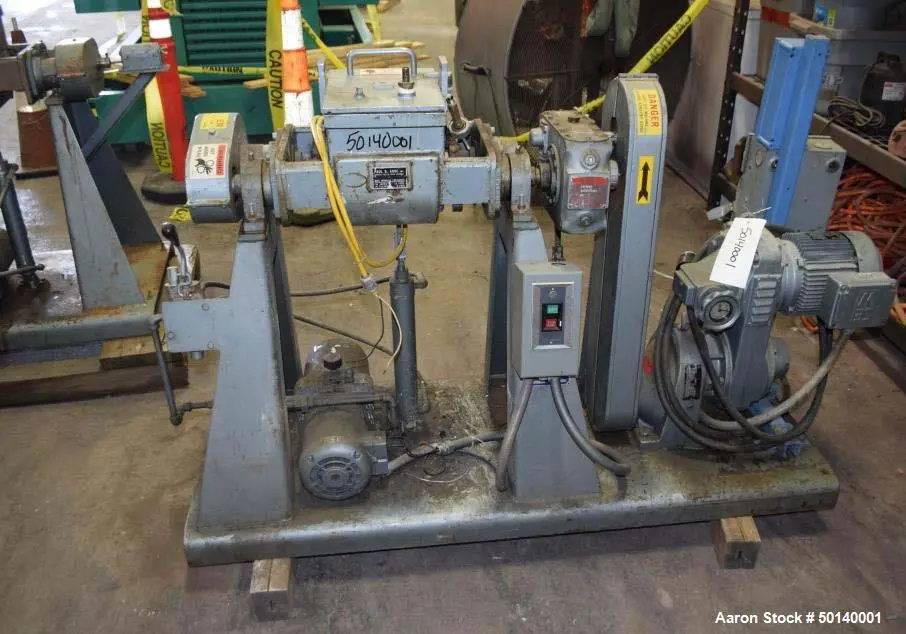

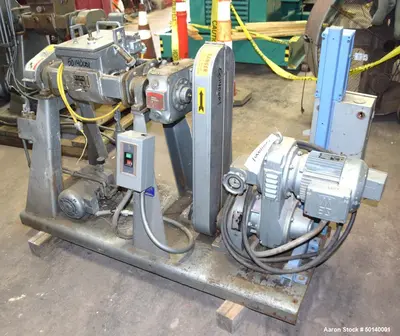

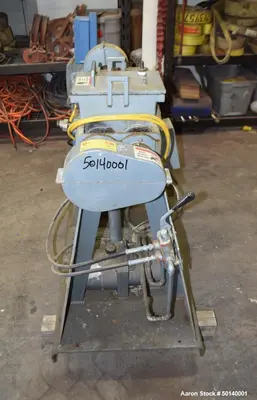

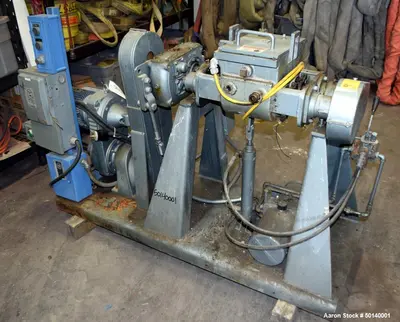

This used Paul O. Abbe Model 1BSB lab double arm mixer is a high-precision small-batch mixer, designed for pharmaceutical, chemical, food, and industrial applications requiring controlled mixing of high-viscosity materials.

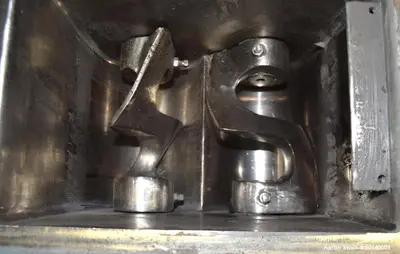

With a 1-gallon operating capacity (2-gallon total capacity), the 316 stainless steel bowl is jacketed with carbon steel, rated for 14 PSI, allowing for temperature-controlled mixing. The tangential sigma blades operate at adjustable speeds (front blade: 70-17 RPM, rear blade: 41-10 RPM), ensuring precise mixing consistency.

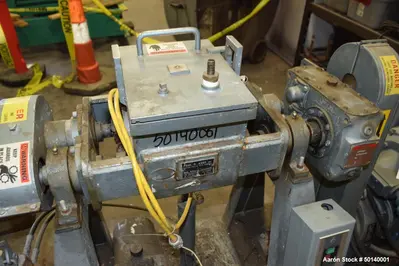

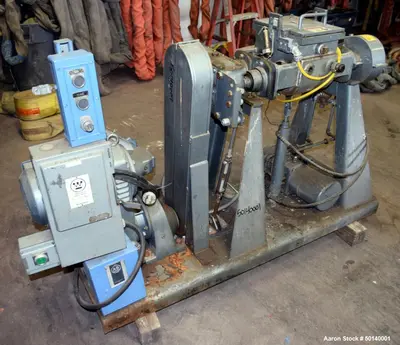

The mixer includes a flat top cover and features a single ram hydraulic tilt with power pack, enabling easy discharge of processed materials. Driven by a 2 HP, 3/60/230/460V, 814 RPM variable speed motor with reducer, this unit ensures efficient and reliable operation.
Mounted on legs with a sturdy base, this mixer is designed for durability, stability, and long-term industrial use.
Specifications:

Model: 1BSB

Operating Capacity: 1 Gallon

Total Capacity: 2 Gallons

Material: 316 Stainless Steel Bowl

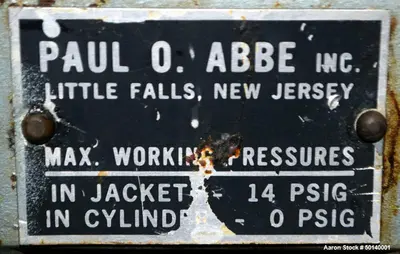

Jacket: Carbon Steel, Rated 14 PSI

Bowl Dimensions: 7” L x 9.5” W x 6.75” D

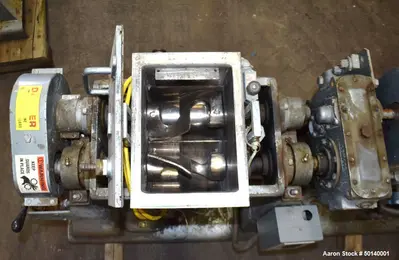

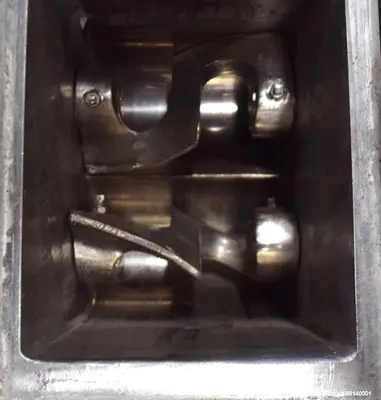

Blades: Tangential Sigma Blades

Blade Speeds:

Front Blade: 70 to 17 RPM

Rear Blade: 41 to 10 RPM

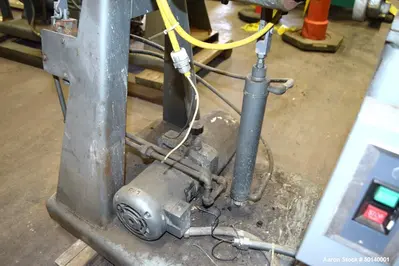

Tilt Mechanism: Single Ram Hydraulic Tilt with Power Pack

Cover Type: Flat Top Cover

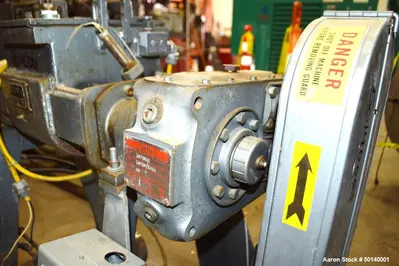

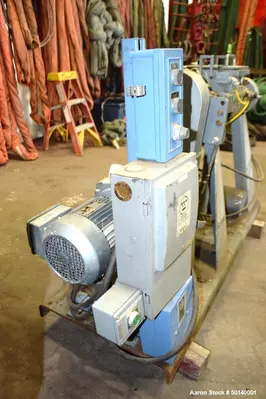

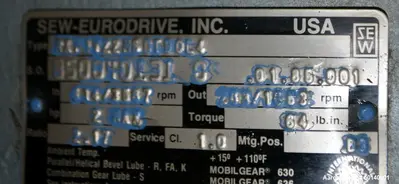

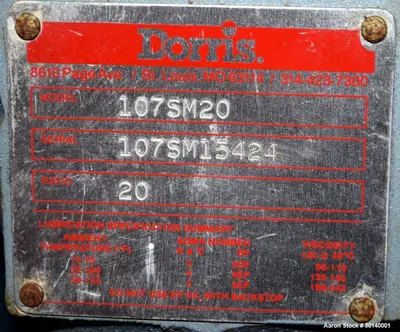

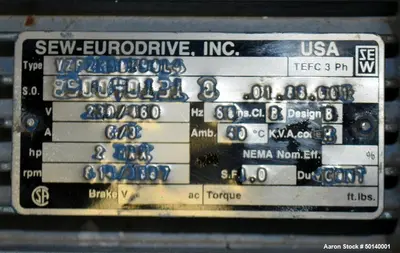

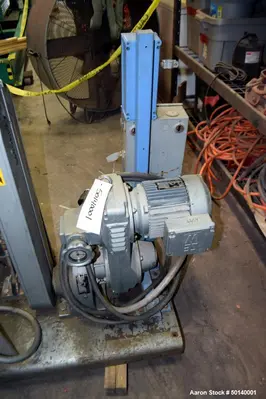

Motor: 2 HP, 3/60/230/460V, 814 RPM Variable Speed Motor with Reducer

Mounting: Legs with Base

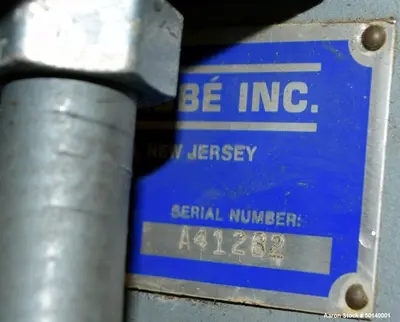

Serial #: A41282

Applications:

Pharmaceutical & Biotech – Precision blending of creams, ointments, and active ingredients

Chemical Processing – Mixing adhesives, sealants, and reaction compounds

Food Processing – Mixing of confectionery pastes, doughs, and emulsions

Cosmetics & Personal Care – Homogenization of skincare products and lotions

Research & Development – Small-batch pilot-scale production

What Products Would This Be Used For?

Pharmaceutical creams, gels, and ointments
Food pastes, confectionery fillings, and emulsions
Adhesives, epoxies, and chemical formulations
Cosmetic lotions, balms, and personal care products
Polymer and resin blending
