USED PAUL O ABBE JBM

Manufacturer Information:

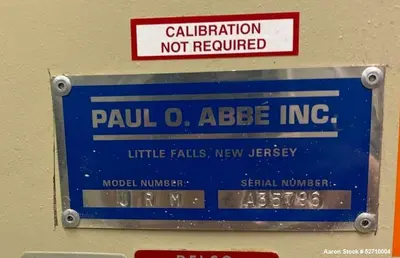

Brand: Paul O Abbe

Model: JRM

Material: Heavy-Duty Industrial Construction

Serial Number: A35796

Description:
The Paul O Abbe JRM Single-Tier Jar Rolling Mill is a high-performance milling solution, designed for ceramic, chemical, and material processing applications.
This rolling mill features 3-inch diameter x 60-inch wide rolls, with a variable speed range of 86 to 258 RPM, set at 169 RPM for optimal operation. Powered by a 3/4 HP, 3/60/230/460V motor, the system provides consistent and efficient rolling for mixing, grinding, and blending.

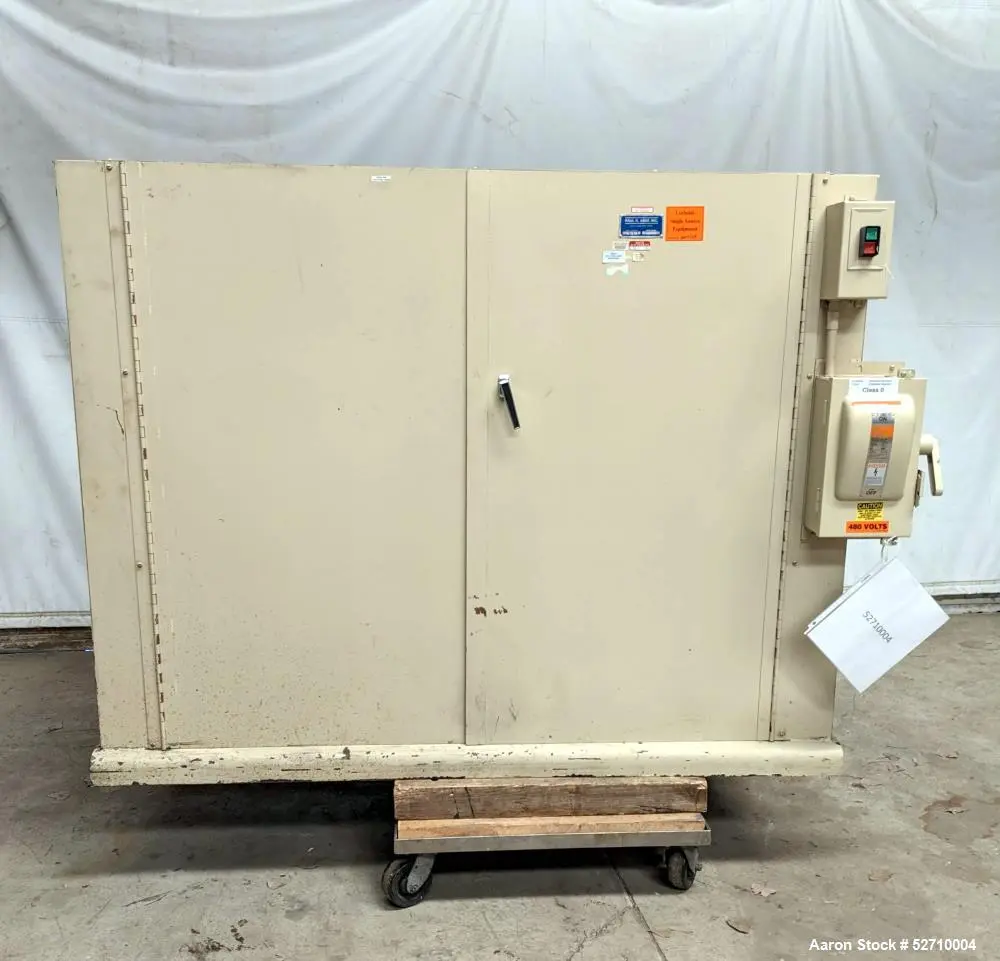

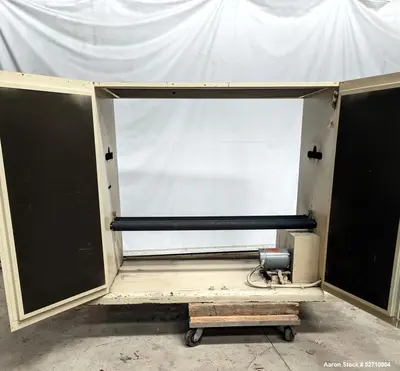

The unit is enclosed in a sound-attenuated housing, reducing noise for a safer and quieter work environment. It is mounted on a forkliftable base, ensuring easy transport and integration into production lines. Additionally, it is capable of being upgraded to a two-tier system for enhanced capacity.
Key Features:

3” Diameter x 60” Wide Rolls for efficient rolling and mixing

Roll Speed: 86 to 258 RPM (set at 169 RPM) for variable processing

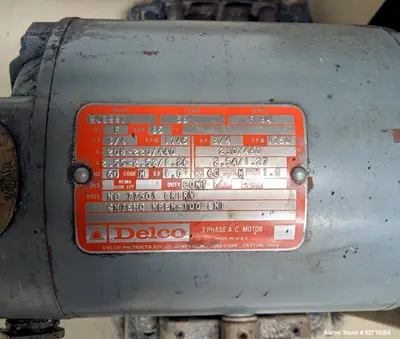

3/4 HP Motor (3/60/230/460V) for reliable performance

Sound-Attenuated Enclosure for noise reduction

Forkliftable Base for easy transport and setup

Expandable to Two-Tier System for increased capacity

Specifications:

Machine Type: Jar Rolling Mill

Brand: Paul O Abbe

Model: JRM

Roll Size: 3” Diameter x 60” Wide

Roll Speed: 86 - 258 RPM (Set at 169 RPM)

Motor Power: 3/4 HP, 3/60/230/460V

Enclosure: Sound-Attenuated

Base: Forkliftable for Easy Transport

Expandability: Capable of Two-Tier Configuration

Serial Number: A35796

Applications:

Ceramics & Glass: Mixing and blending powders for ceramics production

Chemical Processing: Rolling for precise formulation of chemical compounds

Pharmaceuticals: Blending active ingredients for pharmaceutical production

Metallurgy & Materials Science: Fine grinding and particle size reduction

Laboratory & R&D: Small-scale testing and material development

What Products Would This Be Used For?

Ceramic and glass material blending
Powder and pigment rolling for industrial coatings
Chemical mixing and formulation
Pharmaceutical and biotech material preparation
Research and development material testing
