USED STURTEVANT 3B

Brand: Sturtevant

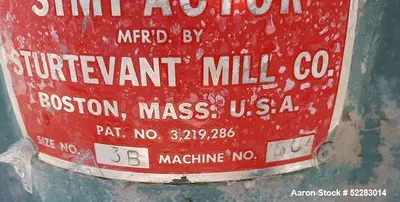

Model: 3B Simpactor Mill

Serial Number: 504

Condition: Used

Description

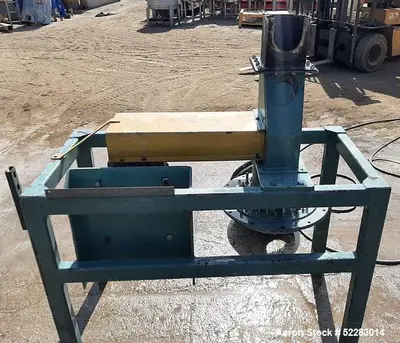

The Sturtevant Model 3B Simpactor Mill is a high-speed impact mill, designed for size reduction, fine grinding, and particle processing across chemical, food, pharmaceutical, and industrial applications. Constructed from carbon steel, this mill provides durability and efficiency for high-capacity material processing.

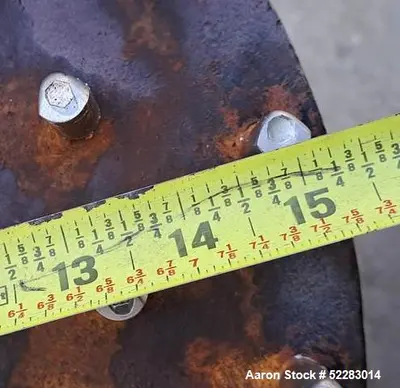

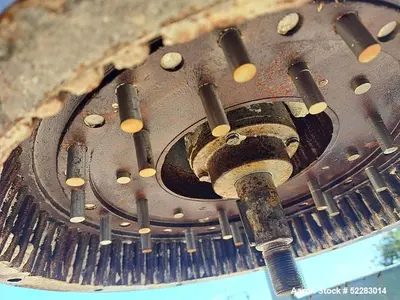

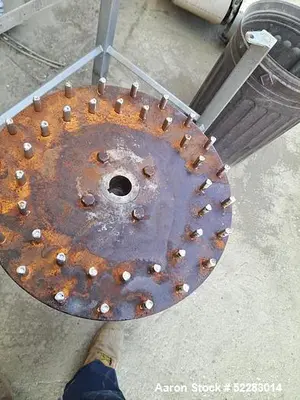

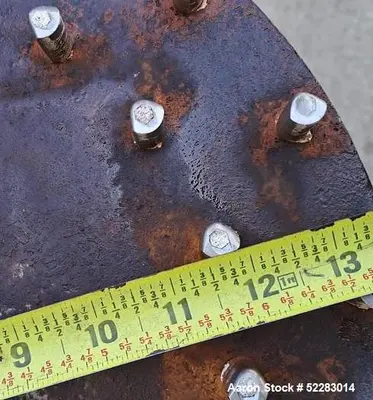

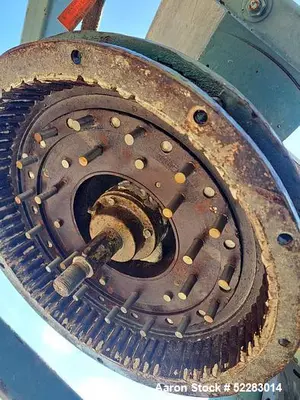

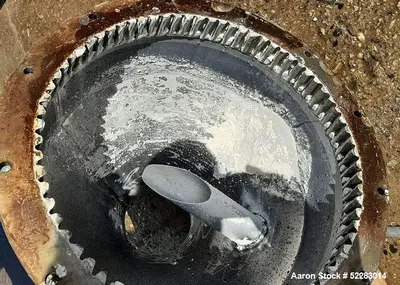

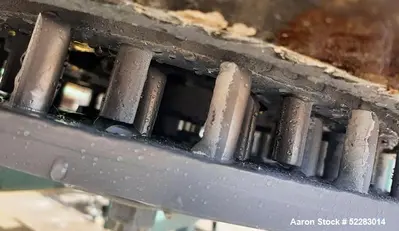

The 16" diameter mill is set up with a 6" x 6" flanged inlet and a 6" center bottom discharge, allowing for efficient material flow and easy product collection. This unit includes two-part rotating discs, designed to maximize impact and shear forces for uniform particle size reduction.

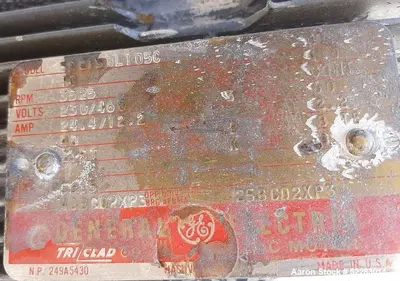

Powered by a 10 HP inverter motor (230/460V, 3-phase, 60 Hz, 3425 RPM), the mill operates efficiently with adjustable speed control via a V-belt drive with guard for safe operation. The approximate throughput capacity is 3.5 tons per hour, depending on the material.
Specifications

Mill Type: Simpactor Impact Mill

Material: Carbon Steel

Rotor Diameter: 16"

Capacity: ~3.5 Tons Per Hour (Product Dependent)

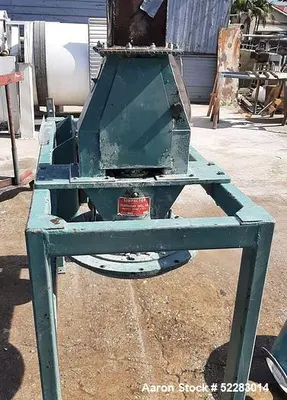

Inlet: 6" x 6" Flanged

Discharge: 6" Center Bottom Outlet

Drive System:

Motor Power: 10 HP Inverter Motor

Voltage: 230/460V, 3-Phase, 60 Hz

Speed: 3425 RPM

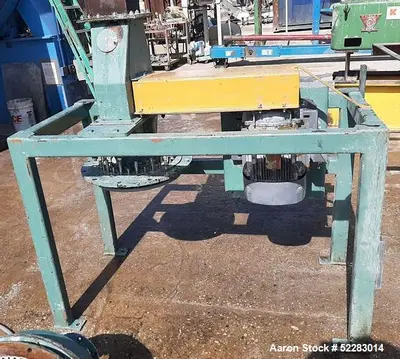

Drive Type: V-Belt with Guard

Applications

Chemical Processing – Grinding and size reduction of powders and granular materials

Food & Beverage Industry – Milling of ingredients, spices, and food additives

Pharmaceutical & Biotech – Fine particle size control for active ingredients

Industrial Minerals & Pigments – Powder processing for coatings and ceramics

Agricultural & Biomass Processing – Size reduction of feed, grains, and organic materials
