USED ENTOLETER ECM

Manufacturer Information:

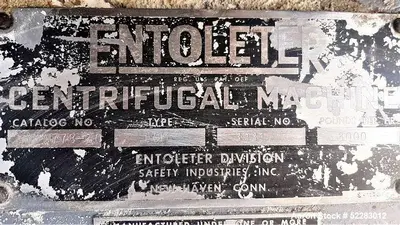

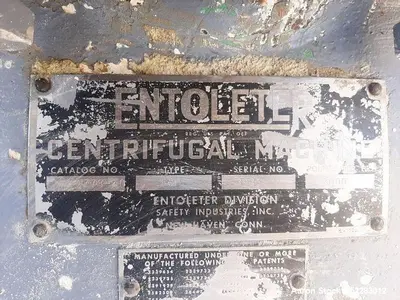

Brand: Entoleter

Model: Centrimil ECM

Catalog Number: 110778-20

Serial Number: 3931

Material: Carbon Steel

Mounting: Frame-Mounted

Description:

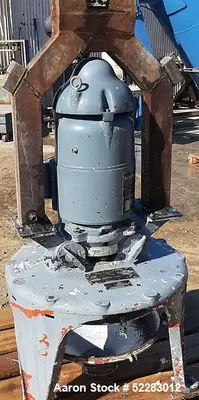

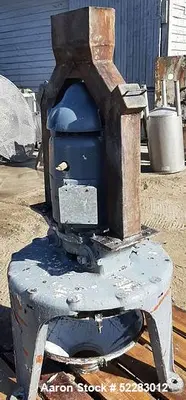

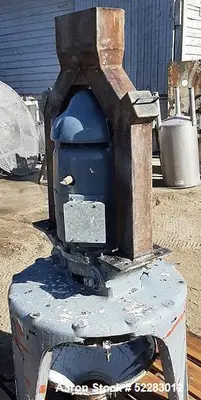

The Entoleter Centrimil ECM Impact Mill is a high-speed pulverizer, designed for particle size reduction and material processing in industrial, food, chemical, and pharmaceutical applications. Featuring a 16" diameter rotor with 3/8" pins and a 2-part rotating disc, this unit ensures efficient impact milling for fine grinding and material refinement. The system includes an 8" x 3-1/2" top infeed and a 6" diameter center bottom discharge, allowing for controlled material flow. Powered by a 5 HP, 220/440V, 3-phase, 60 Hz, 3600 RPM motor, this impact mill delivers consistent, high-speed operation for a variety of applications. Frame-mounted for stability, it is an ideal solution for high-efficiency material processing.

Specifications:

Model: ECM

Construction: Carbon Steel

Rotor Size: 16" Diameter

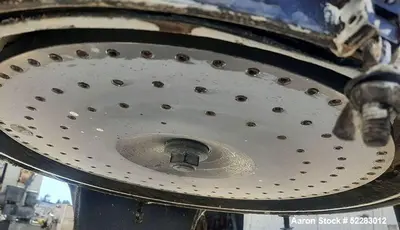

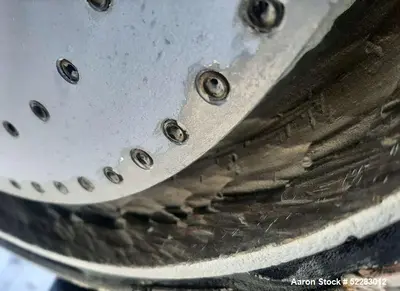

Rotor Type: 3/8" Diameter Pins with 2-Part Rotating Disc

Infeed Size: 8" x 3-1/2"

Discharge Size: 6" Diameter (Center Bottom)

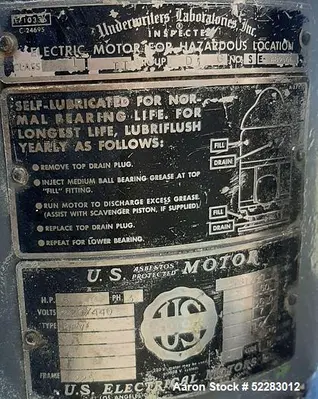

Motor: 5 HP, 220/440V, 3-Phase, 60 Hz, 3600 RPM

Mounting: Frame-Mounted

Catalog Number: 110778-20

Serial Number: 3931

Applications:

Food Processing Industry – Grain milling, flour production, and ingredient refinement

Chemical Processing – Pulverizing chemicals and active ingredients

Pharmaceutical Industry – Size reduction of powders and formulations

Minerals & Abrasives – Fine grinding of minerals and industrial materials

Industrial Manufacturing – Material processing and particle refinement

Compatible Products:

Grains and flours
Dry chemicals and powders
Pharmaceutical formulations
Industrial abrasives
Minerals and fine particulates
