USED PULVA FS

Manufacturer Information:

Brand: Pulva

Model: FS (Micro Pulverizer)

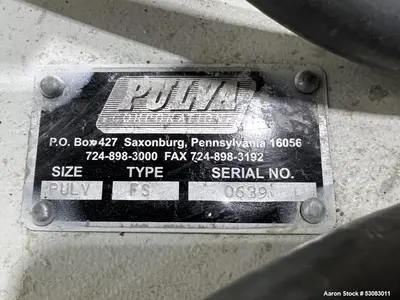

Serial Number: 0639

Description:

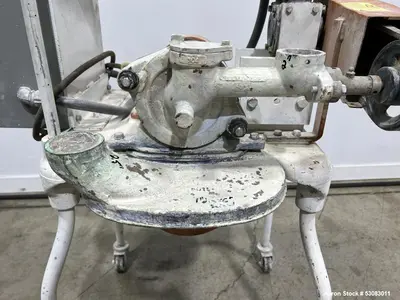

The Pulva Type FS Micro Pulverizer is a high-speed milling machine designed for fine powder grinding in pharmaceutical, food, chemical, and industrial applications. Featuring a 5” diameter x 2” deep housing, this unit is built for precision particle size reduction.
The pulverizer includes:

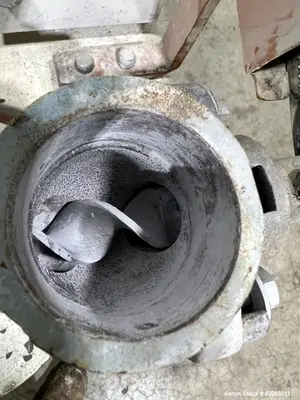

2” Diameter Inlet with a 1” Diameter x 6” Long Feed Screw

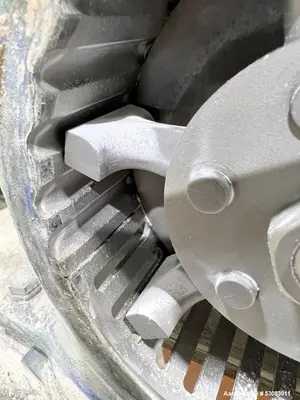

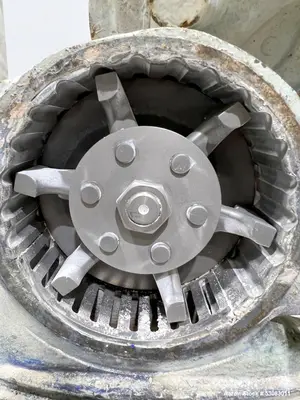

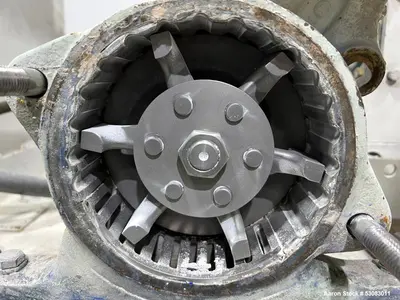

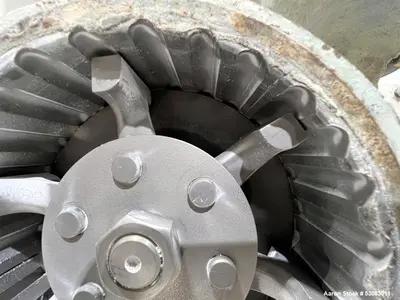

2-3/4” Diameter Rotor with (6) 1” Long x 1/2” Wide Blades for efficient grinding

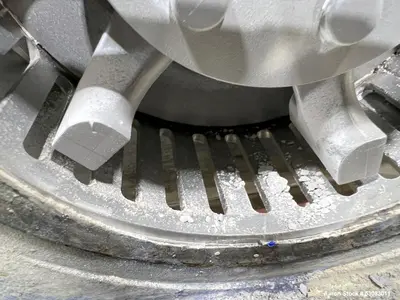

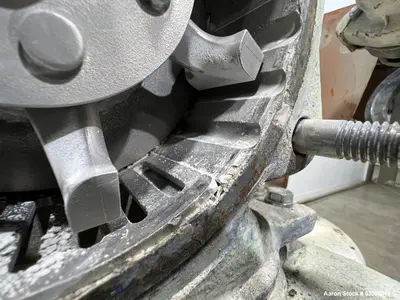

Bottom Screen Discharge with 3/16” Wide Grates for controlled particle output

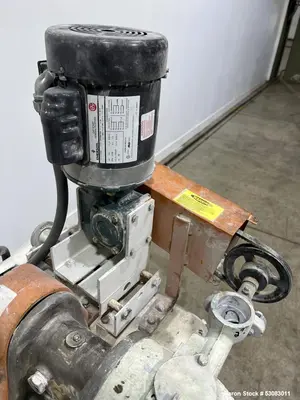

Dual Motor System:

1/3 HP, 1725 RPM Motor (1/60/115/230V) for feed screw

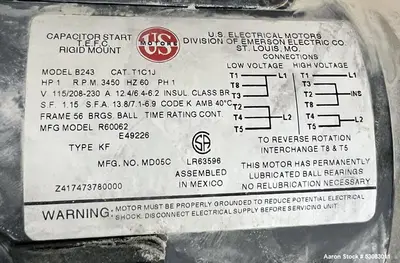

1 HP, 3450 RPM Motor (1/60/115/208-230V) for rotor operation

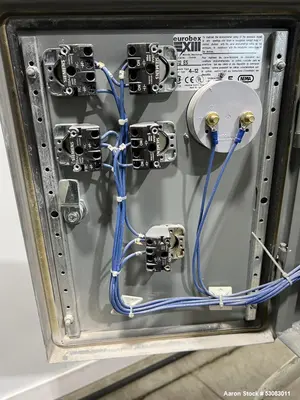

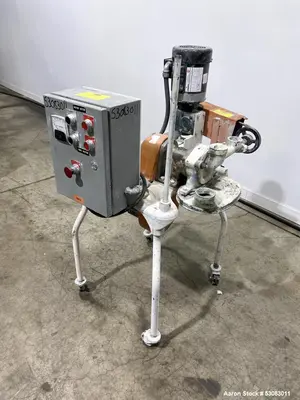

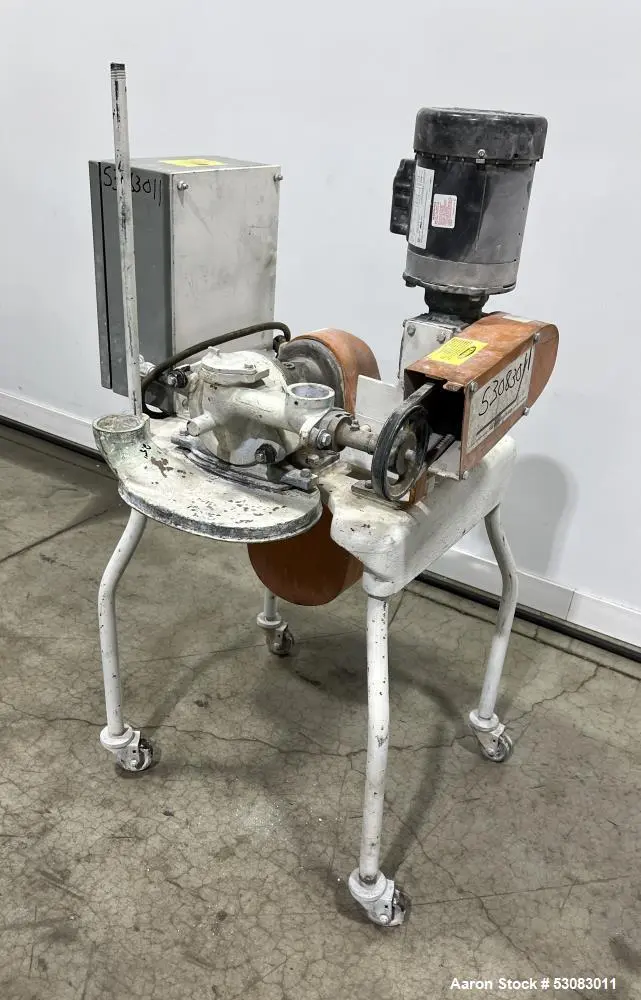

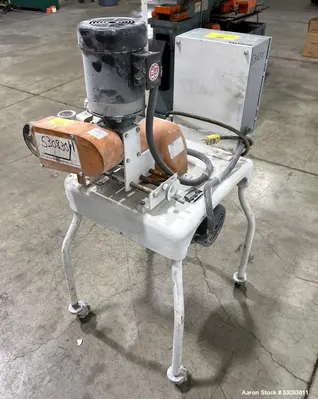

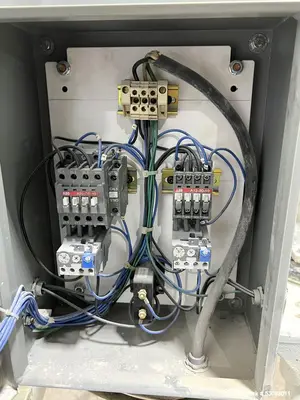

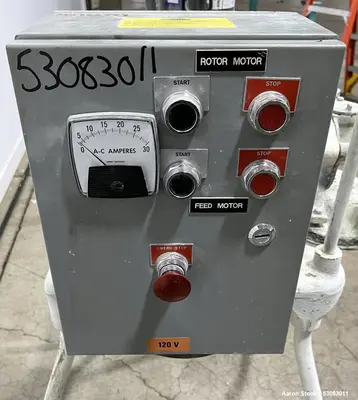

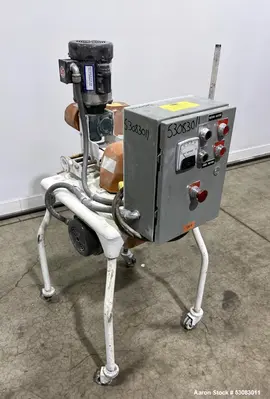

The system also includes a mounted control panel and is mounted on (4) legs with casters, making it easily portable and adaptable for various production environments.
Key Features:

Compact & High-Speed Pulverizing System
Precision Grinding with (6) 1” x 1/2” Blades
Bottom Screen Discharge with 3/16” Wide Grates
Dual Motor System for Optimized Material Flow & Grinding
Mounted Control Panel for Easy Operation
Portable Design with (4) Legs & Casters

Specifications:

Machine Type: Micro Pulverizer

Model: Pulva FS

Material Inlet: 2” Diameter

Feed Screw: 1” Diameter x 6” Long

Housing Size: 5” Diameter x 2” Deep

Rotor Size: 2-3/4” Diameter with (6) 1” x 1/2” Blades

Screen Discharge: 3/16” Wide Grates

Motor System:

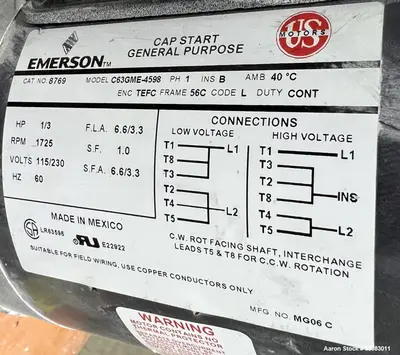

Feed Screw Motor: 1/3 HP, 1725 RPM, 1/60/115/230V

Rotor Motor: 1 HP, 3450 RPM, 1/60/115/208-230V

Mounting: 4 Legs with Casters for Mobility

Applications:

Pharmaceutical Industry: Fine powder processing of active ingredients

Food Processing: Spice, flour, and grain pulverization

Chemical Industry: Pigment, resin, and material micronization

Industrial Manufacturing: Powder coating and composite material grinding

What Products Would This Be Used For?

Fine powders for pharmaceutical formulations
Powdered spices and food ingredients
Chemical and industrial powder processing
Cosmetic and personal care product grinding
Specialty powders for research and development
