USED GIFFORD 40GALV/PA

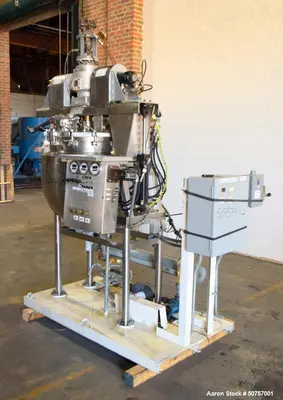

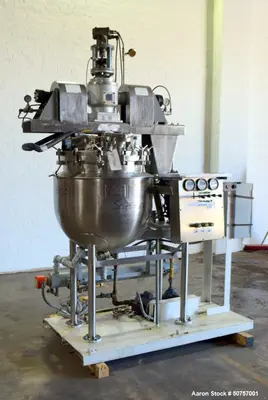

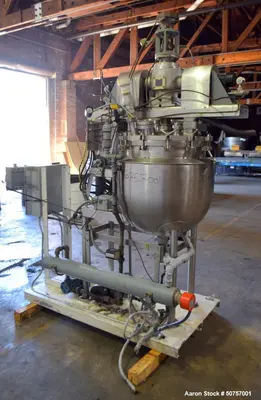

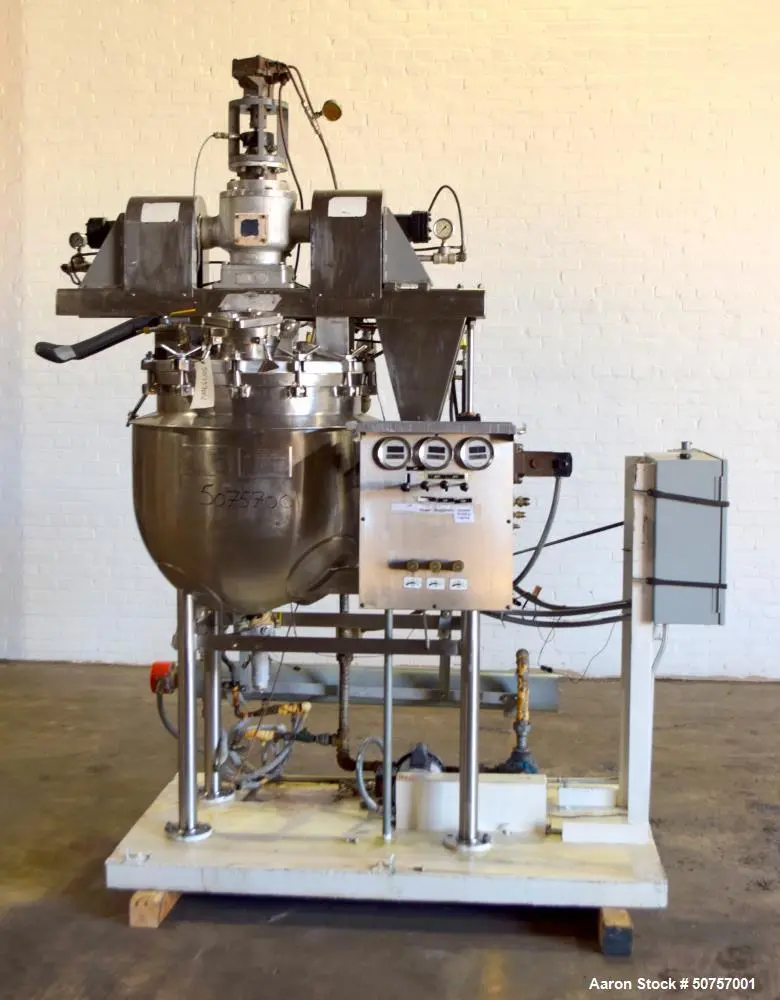

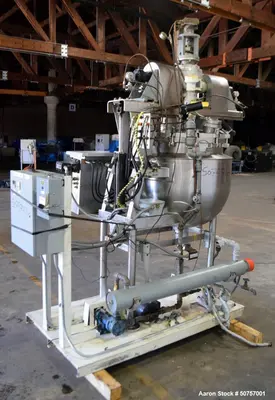

Used Gifford-Wood AGI-Mixer, Model V/P-A, Consisting of: (1) J.C. Pardo & Sons Vacuum Kettle, 40 Gallon, 316 Stainless Steel. Approximate 26" diameter x approximate 26" deep. Lift out clamp on domed top cover, hemispherical bottom. Internal rated 15 psi or full vacuum at 250 degrees F. 304 Stainless steel jacket rated 40 psi at 287 degrees F. Tilt out agitator bridge with inner bar agitator and an anchor style scrapper agitator. (1) Gifford Wood homogenizer mixer, all set up for hydraulic drive. 2" Center bottom outlet. Mounted on (4) legs. Serial# 4402, National Board# 2158. Includes an operator panel, control panel, 0.75hp circulation pump and a Watlow electric heater. Mounted on a common carbon steel base.

Used Equipment Facts About This Machine
Manufacturer Information:

Manufacturer: Gifford-Wood

Model: V/P-A AGI-Mixer

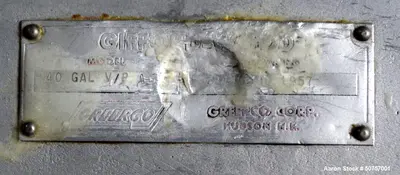

Serial Number: 4402

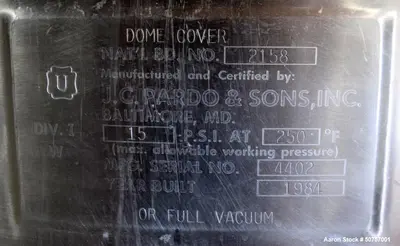

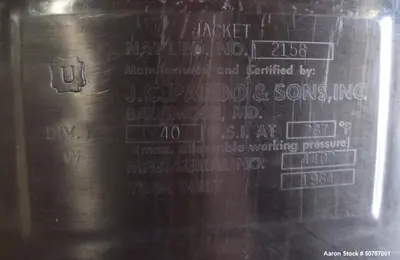

National Board Number: 2158

Specifications:
J.C. Pardo & Sons Vacuum Kettle:

Capacity: 40 Gallons

Material: 316 Stainless Steel

Dimensions:

Diameter: Approx. 26"

Depth: Approx. 26"

Top Configuration: Lift-out clamp-on domed cover

Bottom Configuration: Hemispherical Bottom

Pressure Ratings:

Internal: 15 PSI or Full Vacuum at 250°F

Jacketed: 304 Stainless Steel, 40 PSI at 287°F

Agitation System:

Tilt-out agitator bridge
Inner bar agitator
Anchor-style scraper agitator

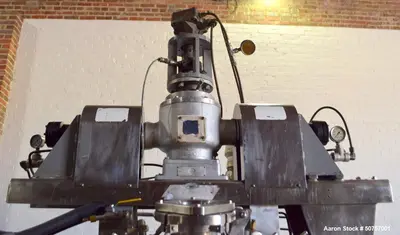

Gifford-Wood Homogenizer Mixer:

Drive System: Set up for Hydraulic Drive

Discharge Outlet: 2" Center Bottom Outlet

Additional Components:

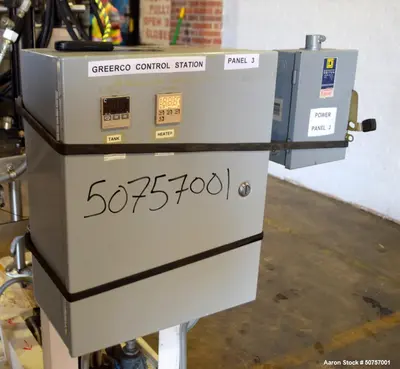

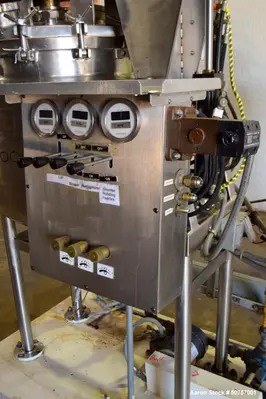

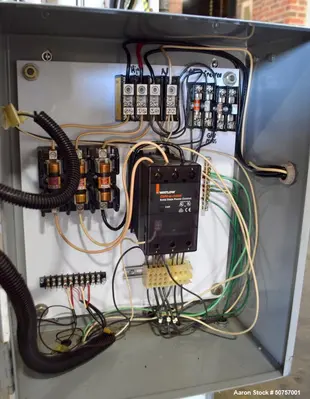

Operator Panel & Control Panel

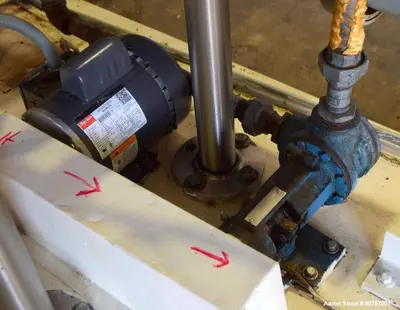

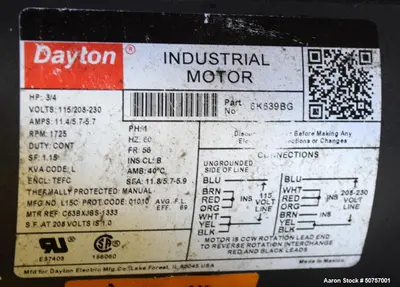

0.75 HP Circulation Pump

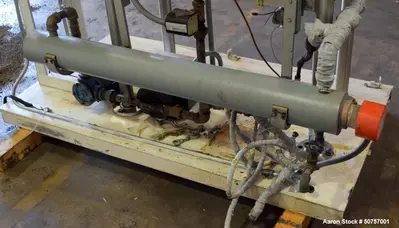

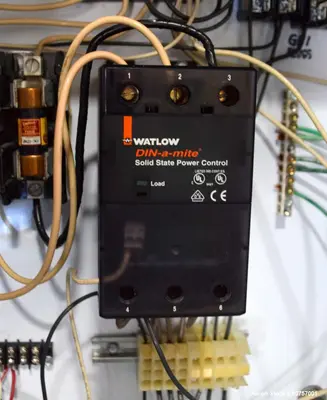

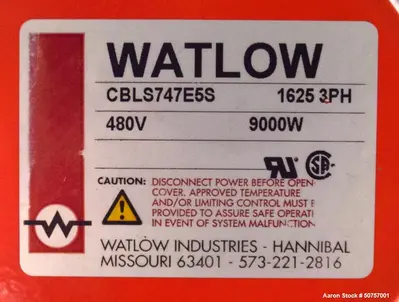

Watlow Electric Heater

Mounting: Common Carbon Steel Base with (4) Legs

Applications:

Food & Beverage Industry:

Emulsifying sauces, creams, and dairy-based products
Vacuum processing of purees and concentrated ingredients

Pharmaceutical Manufacturing:

Homogenization of active pharmaceutical ingredients (APIs)
Vacuum mixing of ointments, creams, and gels

Chemical Processing:

Production of adhesives, emulsions, and specialty chemicals

Cosmetics & Personal Care:

Formulating lotions, shampoos, and serums
Homogenization of essential oil blends and fragrances

Nutraceuticals & Supplements:

Processing vitamin suspensions and liquid dietary supplements
