USED ILSUNG CORPORATION AEL

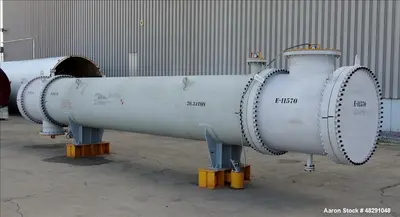

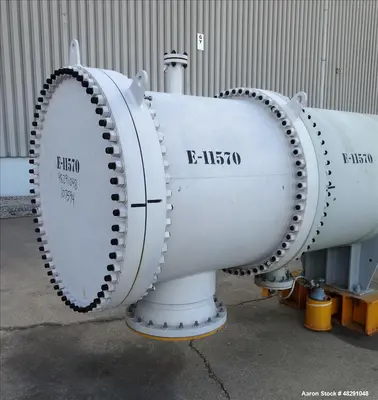

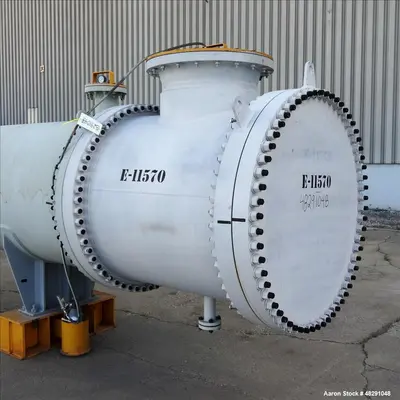

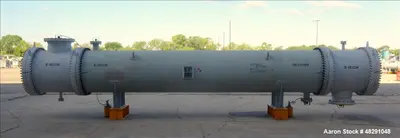

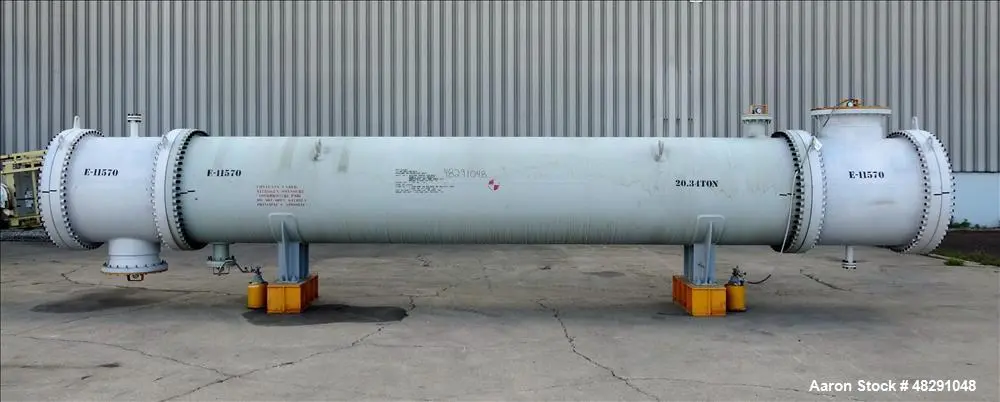

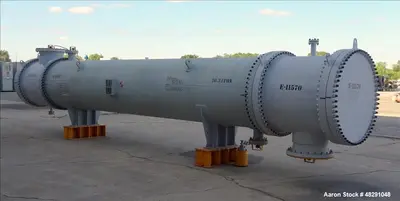

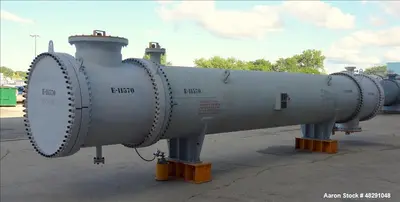

Unused- Single Pass Shell & Tube Heat Exchanger, Approximate 8254 Square Feet, Tema Type AEL, Horizontal. Carbon steel shell rated 527psi/Full Vacuum at 230 degrees F. (1952) 3/4" diameter x 264" long 2205 Duplex stainless steel tubes rated 139psi/Full Vacuum at 230 degrees F, Duplex 2205 stainless steel heads. Openings shell (2) 6", openings for tubes 20", 24". Mfg: Ilsung Corporation. Serial# 14-HE-080, National Board# 2064, built 2014. OAD 380"L X 54"W X 98"T, 44748 lbs. Documents available. Nitrogen purged by manufacturer after testing and prior to storage.

Used Equipment Facts About This Machine
Manufacturer Information:
Ilsung Corporation is listed as the manufacturer of this unused shell and tube heat exchanger. The unit is identified as Model AEL and TEMA Type AEL with a horizontal, single-pass shell and tube configuration. This exchanger is built with a carbon steel shell and Duplex 2205 stainless steel tubes and heads, making it suitable for industrial heat transfer applications where carbon steel shell construction and Duplex stainless tube-side construction are required.
Main Product Description:
Available for sale is an unused Ilsung Corporation AEL single-pass shell and tube heat exchanger with approximately 8,254 square feet of heat transfer surface area. This horizontal saddle-mounted TEMA Type AEL exchanger includes a carbon steel shell rated for 527 psi/full vacuum at 230 degrees F and (1,952) 3/4" diameter x 264" long Duplex 2205 stainless steel tubes rated for 139 psi/full vacuum at 230 degrees F. The unit also includes Duplex 2205 stainless steel heads, shell openings of (2) 6", tube openings of 20" and 24", Serial #14-HE-080, National Board #2064, 2014 year built, and overall dimensions of 380" L x 54" W x 98" T. This unused industrial shell and tube heat exchanger is suited for process heating, cooling, condensing, and heat recovery applications where a large-surface-area exchanger with Duplex 2205 stainless tube-side construction is required.
Specifications:

Stock Number: 48291048
Manufacturer: Ilsung Corporation
Model: AEL
Equipment Type: Shell and tube heat exchanger
Configuration: Single-pass shell and tube heat exchanger
TEMA Type: AEL
Condition: Unused
Heat Transfer Surface Area: Approximately 8,254 sq. ft.
Orientation: Horizontal
Mounting: Saddle mounted
Shell Material: Carbon steel
Tube Material: 2205 Duplex stainless steel
Head Material: 2205 Duplex stainless steel
Shell Pressure Rating: 527 psi/full vacuum
Shell Temperature Rating: 230 degrees F
Tube Pressure Rating: 139 psi/full vacuum
Tube Temperature Rating: 230 degrees F
Tube Count: 1,952 tubes
Tube Diameter: 3/4"
Tube Length: 264"
Shell Openings: (2) 6"
Tube Openings: 20", 24"

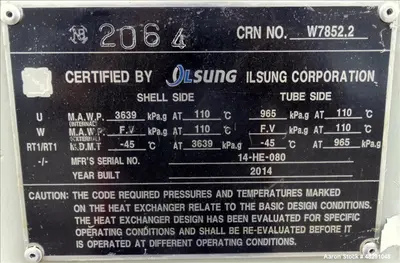

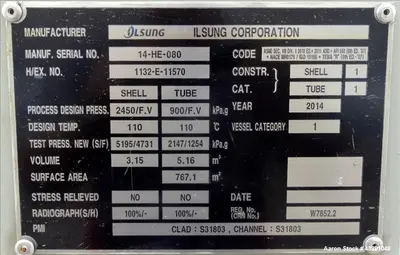

Serial Number: 14-HE-080
National Board Number: 2064
Year Built: 2014
Overall Dimensions: 380" L x 54" W x 98" T
ASME Stamp: Yes
Listed Weight: 44,748 lbs.
Documentation: Available
Preservation Detail: Nitrogen purged by manufacturer after testing and prior to storage.

Product Details:

Unused Ilsung Corporation shell and tube heat exchanger
Model AEL
TEMA Type AEL design
Single-pass configuration
Approximately 8,254 sq. ft. heat transfer surface area
Horizontal saddle-mounted design
Carbon steel shell
2205 Duplex stainless steel tubes
2205 Duplex stainless steel heads
Shell rated 527 psi/full vacuum at 230 degrees F
Tube side rated 139 psi/full vacuum at 230 degrees F
Includes (1,952) 3/4" diameter x 264" long tubes
Shell openings include (2) 6"
Tube openings include 20" and 24"
Serial #14-HE-080
National Board #2064
Built in 2014
Overall dimensions: 380" L x 54" W x 98" T
Suitable for industrial process heating, cooling, condensing, and heat recovery applications

Applications:

Chemical processing
Petrochemical processing
Refinery process service
Oil and gas processing
Process fluid heating
Process fluid cooling
Condensing service
Heat recovery
Waste heat recovery
Power generation systems
Industrial utility systems
Water treatment process service
Desalination-related process service, subject to engineering review
Carbon-steel-compatible shell-side service
Duplex 2205 stainless-compatible tube-side service
Large-surface-area industrial heat transfer applications

Suitable Products / Materials:

Process water
Cooling water
Condensate
Seawater or brackish water service, subject to engineering and chloride compatibility review
Hydrocarbon streams, subject to compatibility review
Chemical process fluids, subject to compatibility review
Thermal fluids, subject to compatibility review
Glycol solutions, subject to compatibility review
Oil-based process fluids, subject to compatibility review
Other compatible process fluids, subject to pressure, temperature, corrosion, and material compatibility review

FAQs:

What type of heat exchanger is this?
This is an unused single-pass shell and tube heat exchanger with a TEMA Type AEL design.

Who is the manufacturer?
The manufacturer is listed as Ilsung Corporation.

What is the listed model?
The listed model is AEL.

What is the heat transfer surface area?
The listed heat transfer surface area is approximately 8,254 square feet.

Is this heat exchanger all stainless steel?
No. The shell is listed as carbon steel, while the tubes and heads are listed as 2205 Duplex stainless steel.

What materials of construction are listed?
The shell is carbon steel. The tubes and heads are 2205 Duplex stainless steel.

What are the pressure and temperature ratings?
The shell is rated 527 psi/full vacuum at 230 degrees F. The tube side is rated 139 psi/full vacuum at 230 degrees F.

How many tubes does this exchanger have?
The listing states the exchanger has (1,952) 3/4" diameter x 264" long 2205 Duplex stainless steel tubes.

What are the shell and tube opening sizes?
The shell openings are listed as (2) 6". The tube openings are listed as 20" and 24".

What are the overall dimensions?
The listed overall dimensions are 380" L x 54" W x 98" T.

What year was this heat exchanger built?
The listed year built is 2014.

Can this exchanger be used in corrosive service?
The Duplex 2205 stainless steel tubes and heads may support certain corrosion-resistant tube-side applications, but final suitability depends on the process fluid, chloride level, temperature, pressure, and buyer engineering review.

Can Aaron Equipment help with shipping?
Yes. Aaron Equipment can help coordinate freight, loading, logistics, and shipping support for used industrial equipment purchases. Buyers should contact Aaron Equipment with the stock number, destination, and shipping requirements.

How can Aaron Equipment help with this purchase?
Aaron Equipment can provide a quote, answer equipment questions, review available photos and specifications, help confirm documentation when available, and assist with logistics for this unused Ilsung Corporation AEL shell and tube heat exchanger.
