USED DAEKYUNG MACHINERY & ENGINEERING AES 52X288

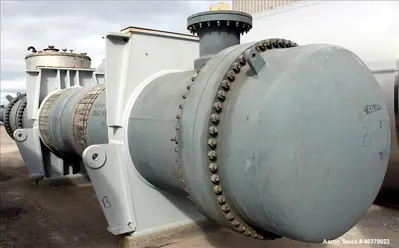

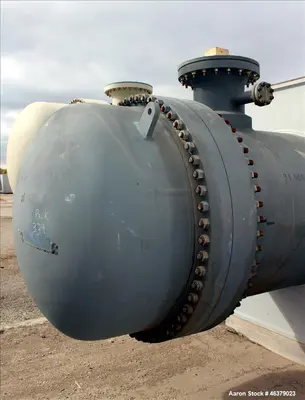

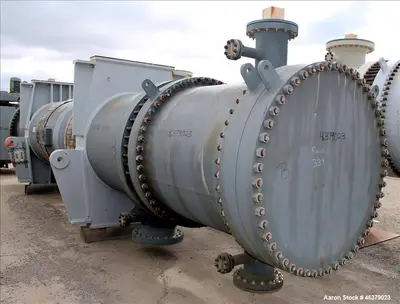

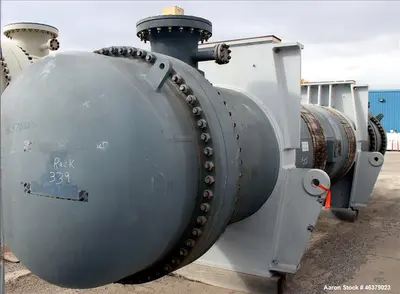

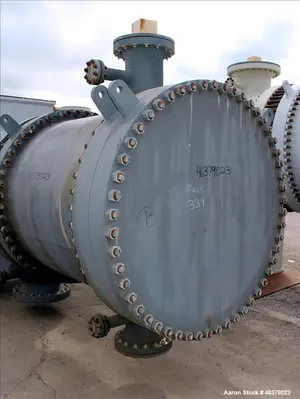

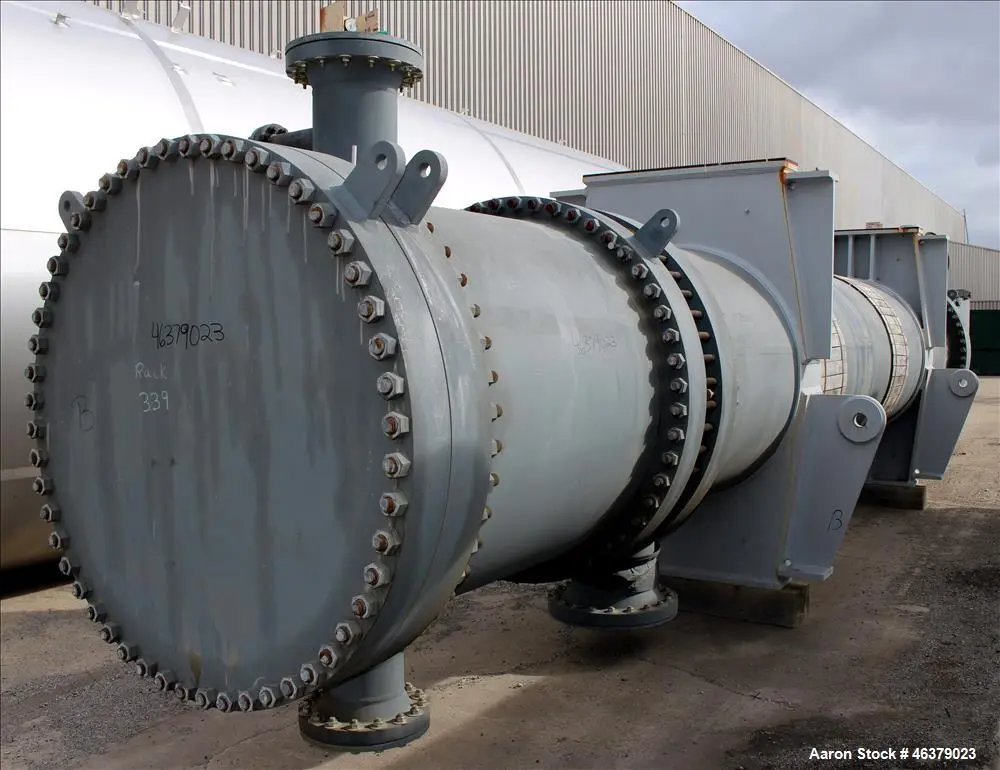

Unused- 8 Pass Shell & Tube Heat Exchanger, 6,179 Square Feet, Horizontal. Carbon steel shell rated 425 psi/ full vacuum at -20 to 650 degrees F. (1,008) 1" Diameter x 24' long TP405 stainless steel tubes rated 500 psi/ full vacuum at -20 to 650 degrees F. Carbon steel heads. Openings: shell (2) 16", tubes (2) 10". Saddle mounted. Mfg. Daekyung Machinery & Engineering. Serial# DK2007-090B, National Board# 2418. Built 2008. Dimensions 386"L X 82"W X 103"T. Weight 70,300 lbs. Documents available. Nitrogen purged by manufacturer after testing and prior to storage.

Used Equipment Facts About This Machine
Manufacturer Information:
Daekyung Machinery & Engineering is listed as the manufacturer of this unused shell and tube heat exchanger. The unit is identified as Model AES 52X288 and is built as a horizontal 8-pass shell and tube heat exchanger with a carbon steel shell, carbon steel heads, and TP405 stainless steel tubes. This type of exchanger is commonly used in industrial process heating, cooling, condensing, and heat recovery applications where high-temperature ratings, pressure/full vacuum service, and stainless tube-side construction are required.
Main Product Description:
Available for sale is an unused Daekyung Machinery & Engineering AES 52X288 8-pass shell and tube heat exchanger with approximately 6,179.5 square feet of heat transfer surface area. This horizontal saddle-mounted exchanger includes a carbon steel shell rated for 425 psi/full vacuum at -20 to 650 degrees F and (1,008) 1" diameter x 24' long TP405 stainless steel tubes rated for 500 psi/full vacuum at -20 to 650 degrees F. The unit also includes carbon steel heads, shell openings of (2) 16", tube openings of (2) 10", Serial #DK2007-090B, National Board #2418, 2008 year built, and overall dimensions of 32' 2" L x 6' 10" W x 8' 7" T. This unused industrial shell and tube heat exchanger is suited for process heating, cooling, condensing, and heat recovery applications requiring a high-pressure, high-temperature exchanger with stainless steel tube construction.
Specifications:

Stock Number: 46379023
Manufacturer: Daekyung Machinery & Engineering
Model: AES 52X288
Equipment Type: Shell and tube heat exchanger
Configuration: 8-pass shell and tube heat exchanger
Condition: Unused
Heat Transfer Surface Area: 6,179.5 sq. ft.
Orientation: Horizontal
Mounting: Saddle mounted
Shell Material: Carbon steel
Tube Material: TP405 stainless steel
Head Material: Carbon steel
Shell Pressure Rating: 425 psi/full vacuum
Shell Temperature Rating: -20 to 650 degrees F
Tube Pressure Rating: 500 psi/full vacuum
Tube Temperature Rating: -20 to 650 degrees F
Tube Count: 1,008 tubes
Tube Diameter: 1"
Tube Length: 24'
Number of Shell Openings: 2
Shell Openings: (2) 16"
Number of Tube Openings: 2
Tube Openings: (2) 10"

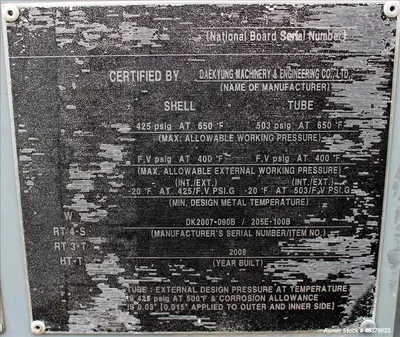

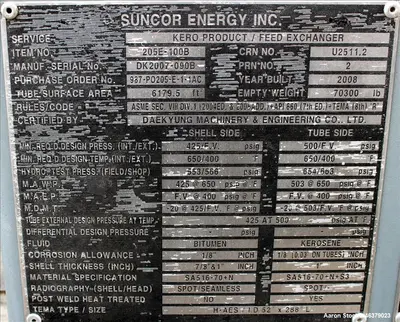

Serial Number: DK2007-090B
National Board Number: 2418
Year Built: 2008
Overall Dimensions: 32' 2" L x 6' 10" W x 8' 7" T
ASME Stamp: Yes
Listed Weight: 70,300 lbs.
Documentation: Available
Preservation Detail: Nitrogen purged by manufacturer after testing and prior to storage.

Product Details:

Unused Daekyung Machinery & Engineering shell and tube heat exchanger
Model AES 52X288
8-pass shell and tube configuration
Approximately 6,179.5 sq. ft. heat transfer surface area
Horizontal saddle-mounted design
Carbon steel shell
TP405 stainless steel tubes
Carbon steel heads
Shell rated 425 psi/full vacuum at -20 to 650 degrees F
Tube side rated 500 psi/full vacuum at -20 to 650 degrees F
Includes (1,008) 1" diameter x 24' long TP405 stainless steel tubes
Shell openings include (2) 16"
Tube openings include (2) 10"
Serial #DK2007-090B
National Board #2418
Built in 2008
Overall dimensions: 32' 2" L x 6' 10" W x 8' 7" T
Suitable for industrial process heating, cooling, condensing, and heat recovery applications

Applications:

Chemical processing
Petrochemical processing
Refinery process service
Oil and gas processing
Process fluid heating
Process fluid cooling
High-temperature process service
Condensing service
Heat recovery
Waste heat recovery
Power generation systems
Steam and condensate recovery
Industrial utility systems
Thermal fluid systems
Vacuum-rated process applications
Large-scale industrial heat transfer
Stainless tube-side process applications, subject to compatibility review

Suitable Products / Materials:

Process water
Cooling water
Condensate
Steam service, depending on process requirements
Hydrocarbon streams, subject to compatibility review
Chemical process fluids, subject to compatibility review
Thermal fluids, subject to compatibility review
Glycol solutions, subject to compatibility review
Oil-based process fluids, subject to compatibility review
Other compatible process fluids, subject to pressure, temperature, corrosion, and material compatibility review

FAQs:

What type of heat exchanger is this?
This is an unused 8-pass shell and tube heat exchanger with a carbon steel shell, carbon steel heads, and TP405 stainless steel tubes.

Who is the manufacturer?
The manufacturer is Daekyung Machinery & Engineering.

What is the listed model?
The listed model is AES 52X288.

What is the heat transfer surface area?
The listed heat transfer surface area is 6,179.5 square feet.

Is this heat exchanger all stainless steel?
No. The shell and heads are carbon steel. The tubes are TP405 stainless steel.

What materials of construction are listed?
The shell is carbon steel, the tubes are TP405 stainless steel, and the heads are carbon steel.

What are the pressure and temperature ratings?
The shell is rated 425 psi/full vacuum at -20 to 650 degrees F. The tube side is rated 500 psi/full vacuum at -20 to 650 degrees F.

How many tubes does this exchanger have?
The listing states the exchanger has (1,008) 1" diameter x 24' long TP405 stainless steel tubes.

What are the shell and tube opening sizes?
The shell openings are listed as (2) 16". The tube openings are listed as (2) 10".

What are the overall dimensions?
The listed overall dimensions are 32' 2" L x 6' 10" W x 8' 7" T.

What year was this heat exchanger built?
The listed year built is 2008.

Is the listed weight available?
70,300 lbs.

Can this heat exchanger be used for chemical or refinery service?
This type of shell and tube heat exchanger is commonly used in chemical, petrochemical, refinery, oil and gas, and industrial process applications, but final suitability depends on process fluid, corrosion profile, pressure, temperature, and buyer engineering review.

Can Aaron Equipment help with shipping?
Yes. Aaron Equipment can help coordinate freight, loading, logistics, and shipping support for used industrial equipment purchases. Buyers should contact Aaron Equipment with the stock number, destination, and shipping requirements.

How can Aaron Equipment help with this purchase?
Aaron Equipment can provide a quote, answer equipment questions, review available photos and specifications, help confirm available documentation when available, and assist with logistics for this unused Daekyung Machinery & Engineering shell and tube heat exchanger.
