P.X. Engineering U Tube Heat Exchanger

Manufacturer: PX Engineering

Model: Unspecified

Year Built: 1980

Description

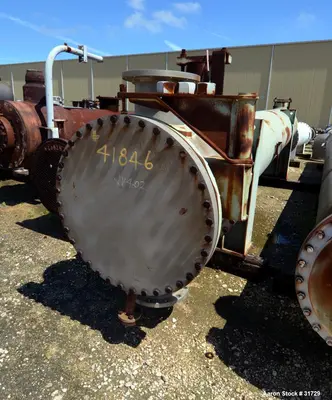

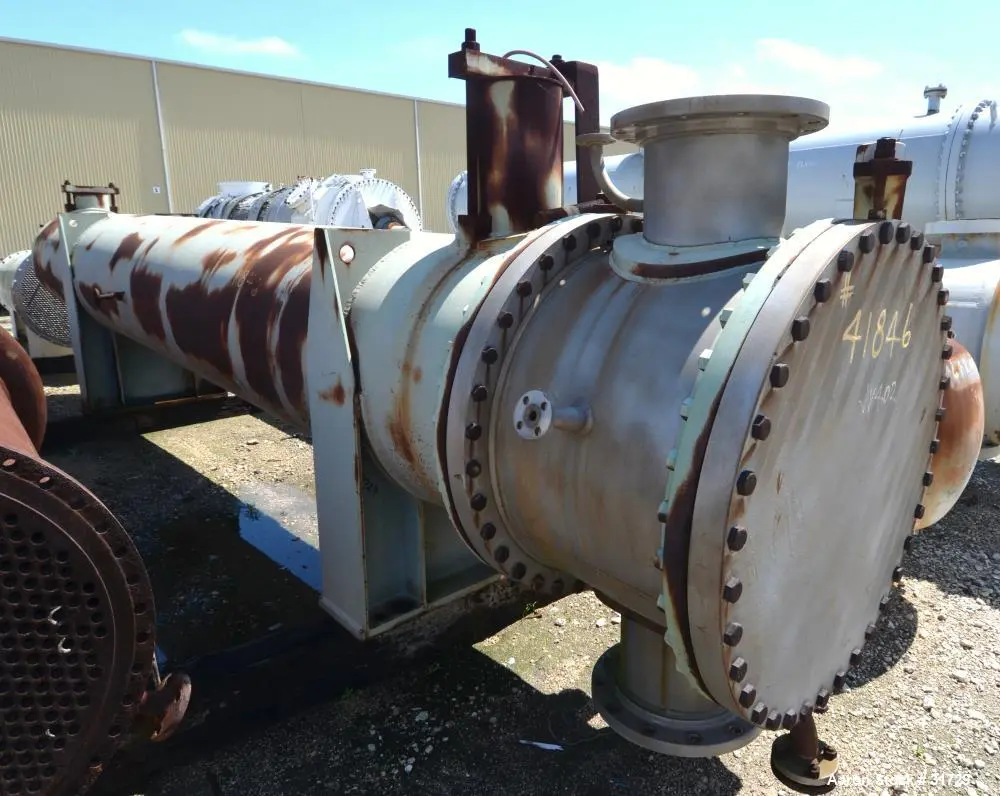

The Unused PX Engineering U-Tube Heat Exchanger is a high-capacity industrial heat exchanger designed for efficient heat transfer in demanding applications. Built with a carbon steel shell and 304 stainless steel tubes, tube sheet, and heads, this horizontal, saddle-mounted unit offers durability, corrosion resistance, and reliability.
The shell is rated at 150 psi at 200°F, while the (668) ⅝" diameter, 252" long 304 stainless steel tubes are rated at 75 psi at 212°F. The unit includes two 10" shell nozzles and two 12" nozzles in the head, allowing for flexible system integration.
Specifications

Type: U-Tube Shell & Tube Heat Exchanger

Orientation: Horizontal

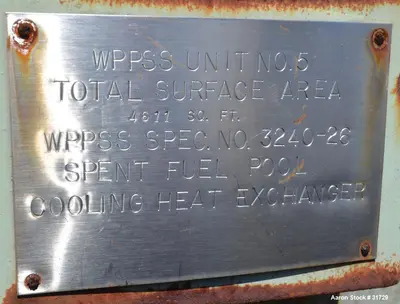

Surface Area: 4611 sq. ft.

Shell Material: Carbon Steel

Tube Material: 304 Stainless Steel

Tube Sheet & Head Material: 304 Stainless Steel

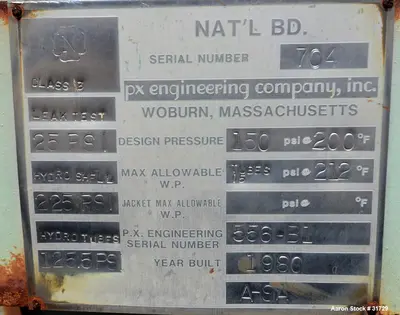

Shell Rating: 150 psi @ 200°F

Tube Rating: 75 psi @ 212°F

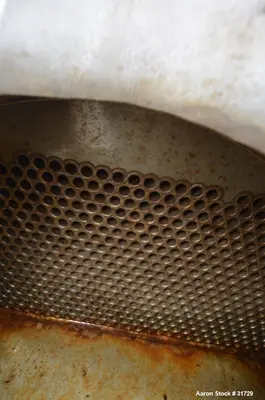

Tubes: (668) tubes, ⅝" diameter, 252" length

Shell Nozzles: (2) 10"

Head Nozzles: (2) 12"

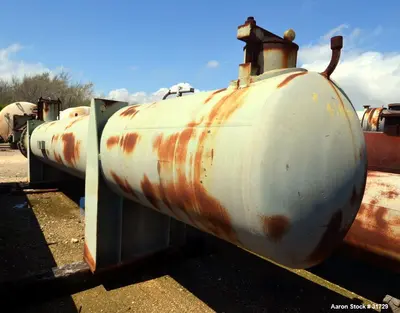

Mounting: Saddle-mounted

Year Built: 1980

Applications

Chemical & Petrochemical Processing (cooling, heat recovery, condensation)

Oil & Gas Industry (liquid heating, gas cooling, refining processes)

Power Generation (waste heat recovery, steam systems)

Food & Beverage Processing (temperature control, pasteurization)

Pharmaceutical & Biotech Industry (sterile heating and cooling applications)

Compatible Products & Systems

Industrial cooling and heating systems
Steam and process fluid handling
Oil refining and gas processing units
Heat recovery and energy efficiency applications
