Used Southern Heat Exchanger Shell & Tube Heat Exchanger – 4,372 Sq Ft, Carbon Steel Shell, 430 SS Tubes

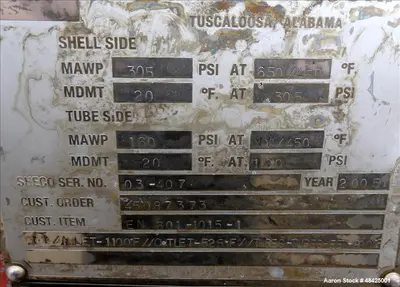

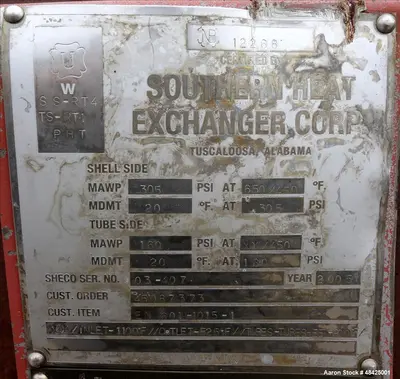

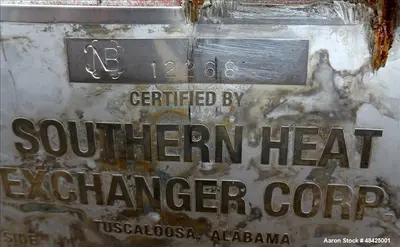

Manufacturer Information

Manufacturer: Southern Heat Exchanger

National Board Number: 12268

Serial Number: 03-407

Year Built: 2005

Description

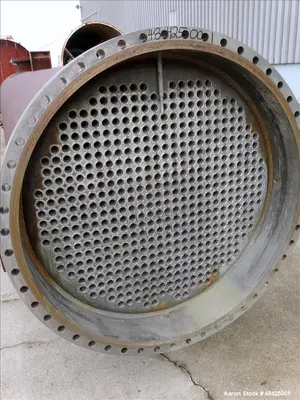

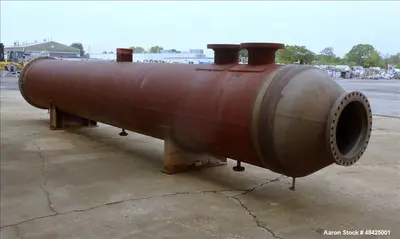

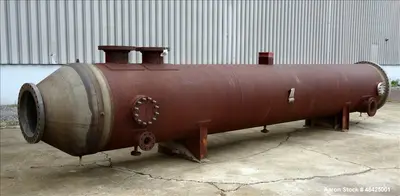

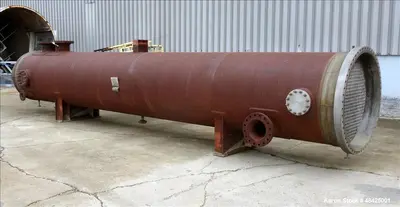

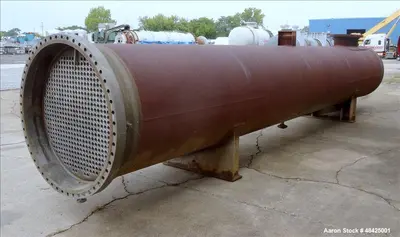

This Used Southern Heat Exchanger Shell & Tube Heat Exchanger offers a large 4,372 square feet heat transfer surface, making it suitable for high-performance industrial heat exchange applications. Constructed with a carbon steel shell rated for 305 psi at 20°F to 650°F/450°F, it ensures durability and pressure resistance. The (514) 1-1/4" diameter, 307" long 430 stainless steel tubes are rated for 160 psi at 20°F to 450°F, providing effective heat transfer. The unit is saddle mounted for stable installation and features multiple large openings for efficient fluid transfer. Note: No head included.
Specifications

Heat Transfer Surface: Approximately 4,372 square feet

Tube Material: 430 Stainless Steel

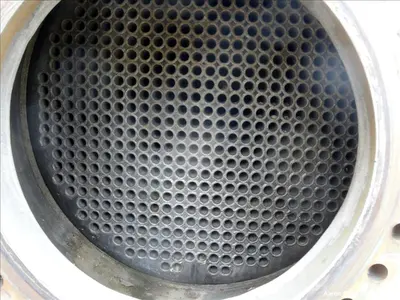

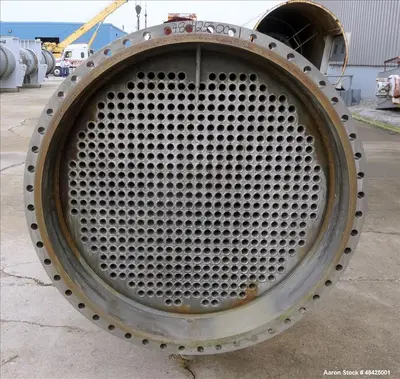

Tube Size: (514) tubes, 1-1/4" diameter x approx. 307" long

Tube Rating: 160 psi at 20°F to 450°F

Shell Material: Carbon Steel

Shell Rating: 305 psi at 20°F to 650°F/450°F

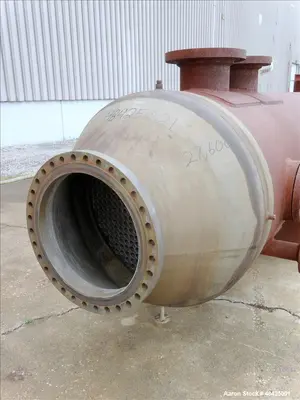

Head Type: Single head (not included), 321 Stainless Steel

Openings:

Shell: (2) 12", (1) 10", (1) 4"

Tubes: (1) 22-1/2"

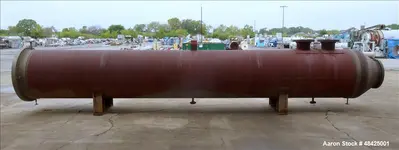

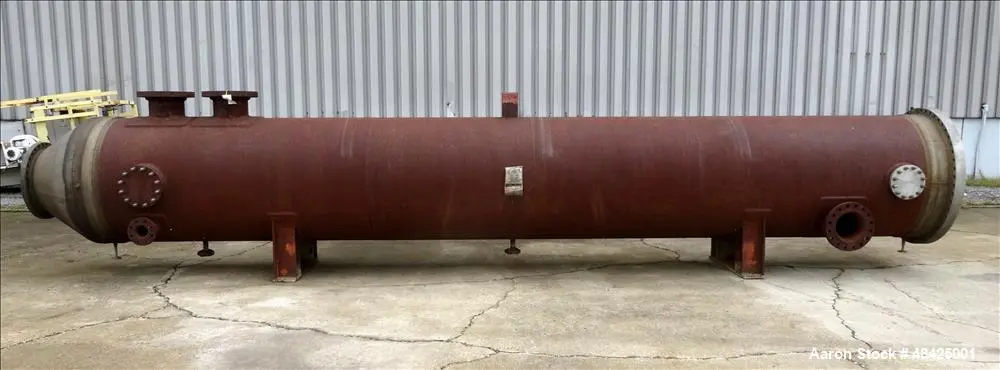

Mounting: Saddle mounted

Applications
This heat exchanger is designed for industries requiring high-efficiency heat transfer and durable construction, including:

Oil & gas processing
Power generation
Chemical & petrochemical industries
Refinery operations
Pulp & paper industry
Industrial heating and cooling systems
Thermal energy recovery
