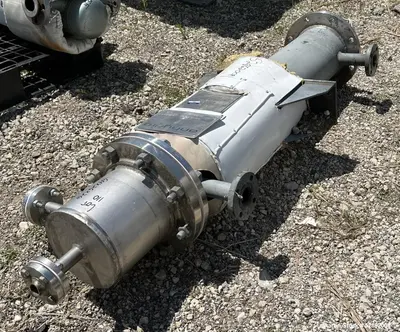

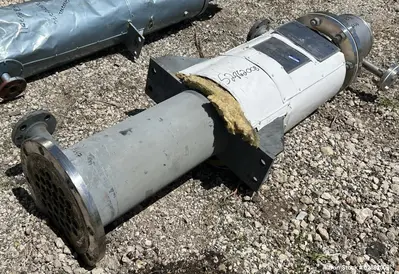

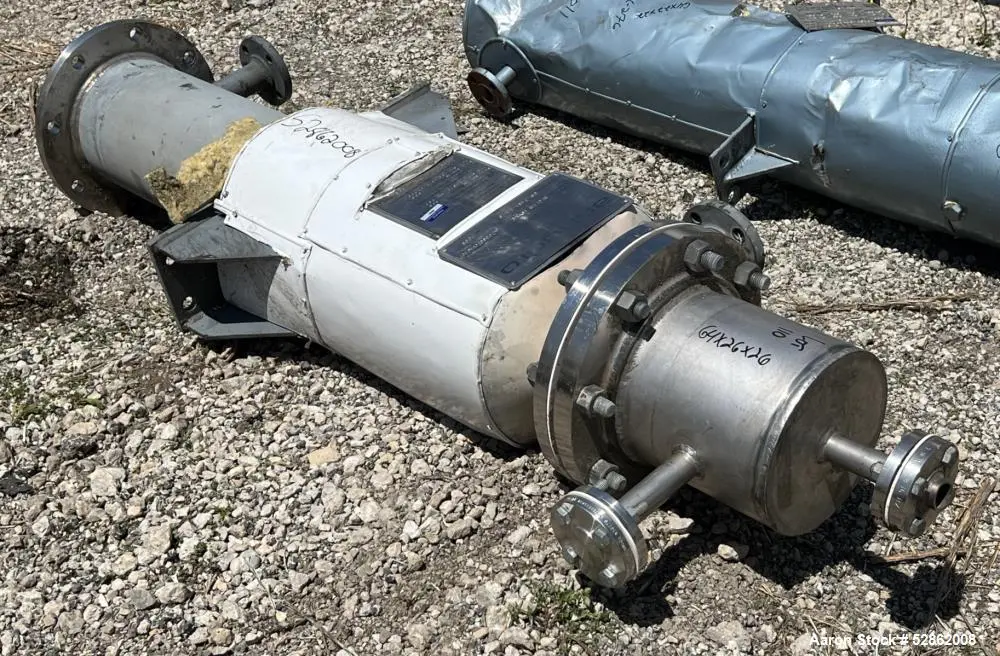

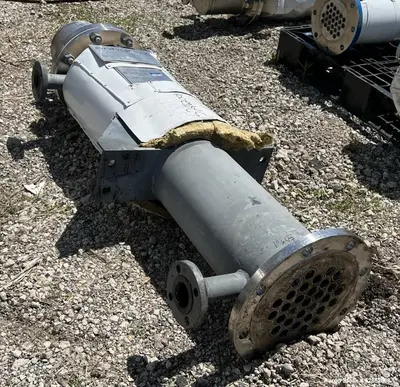

Industrial Vertical Heat Exchanger – Anhydro, 31.8 Sq Ft, No Bottom Head

🏭 Manufacturer & Certification Info

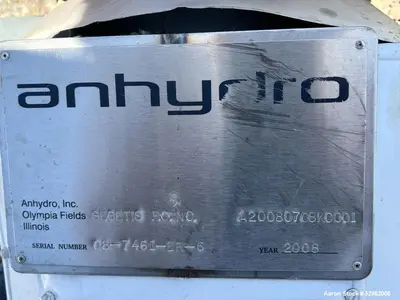

Manufacturer: Anhydro

Type: Vertical Heat Exchanger / Reboiler

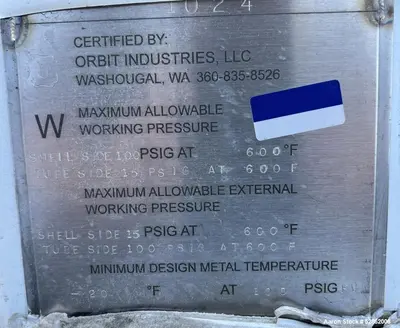

Certification: National Board certified by Orbit Industries

Mounting Style: Side lug mounted

Condition: Used

Bottom Head: Not included (no bottom head)

📝 Description
This Used Anhydro Vertical Heat Exchanger / Reboiler features a carbon steel shell and 31 Hastelloy C-276 tubes, offering reliable performance in harsh chemical and high-temperature environments. Designed for vertical mounting, the unit supports up to 15,000 BTU/h and is ideal for reboiling and compact heat transfer processes in corrosive fluid service.
Key Specs:

Heat transfer surface area: Approx. 31.8 square feet

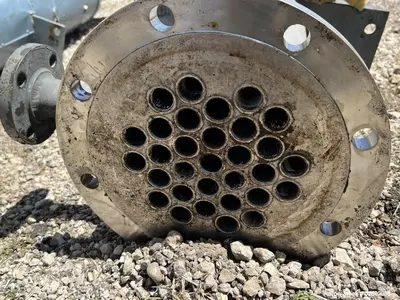

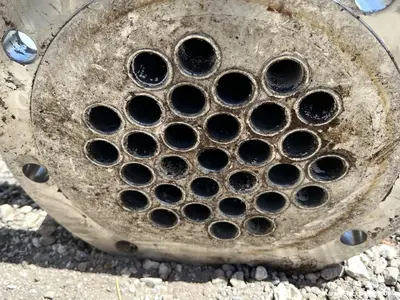

Tubes: (31) 1" diameter x 47" long Hastelloy C-276

Shell rating: 100 PSI / full vacuum @ -20°F to 600°F

Tube rating: 15 PSI internal / 100 PSI external @ -20°F to 600°F

Thermal rating: 15,000 BTU/hr

Openings: (2) 2", (2) 1"

Mounting: Side lug mounted

No bottom head – ideal for vertical integration or custom bottom installation

📐 Specifications

Feature
Detail

Manufacturer
Anhydro

Equipment Type
Vertical Heat Exchanger / Reboiler

Heat Transfer Area
31.8 square feet

Tubes
(31) 1" Dia x 47" Long, Hastelloy C-276

Shell Material
Carbon Steel

Shell Pressure Rating
100 PSI / Full Vacuum @ -20°F to 600°F

Tube Pressure Rating
15 PSI Internal / 100 PSI External @ -20°F to 600°F

Thermal Capacity
15,000 BTU/h

Openings
(2) 2", (2) 1"

Mounting Style
Side Lug Mounted

Certification
National Board by Orbit Industries

Bottom Head
Not included



🧪 Applications

Thermal reboilers in distillation columns

Corrosive chemical heating or cooling

Solvent recovery systems

Specialty chemical and fine chemical processing

Pharmaceutical liquid heating

High-purity system integration

Petrochemical and refinery operations

Food-grade or bio-based fluid heating

Laboratory and pilot-scale process systems

Custom thermal process skids

🎯 Fluids & Substances Typically Handled

Solvents and acetates

Hydrocarbons

Acids and corrosive chemicals

Alcohols

Organic esters

Heat transfer oils

Deionized water

Pharmaceutical fluids

Process gases

Bio-solutions
