Doyle and Roth Shell & Tube Exchanger – 20.2 Sq Ft, Side Lug Mount
Overview
Manufacturer: Doyle & Roth
Model: Unspecified
Category: Vertical Shell & Tube Condenser

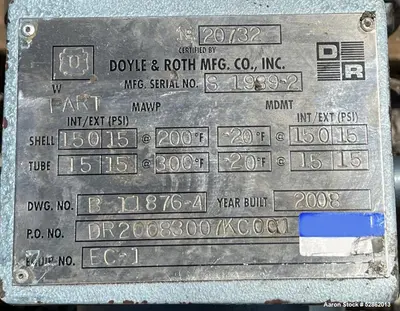

Serial Number: S1993-2
National Board Number: 20736
Description

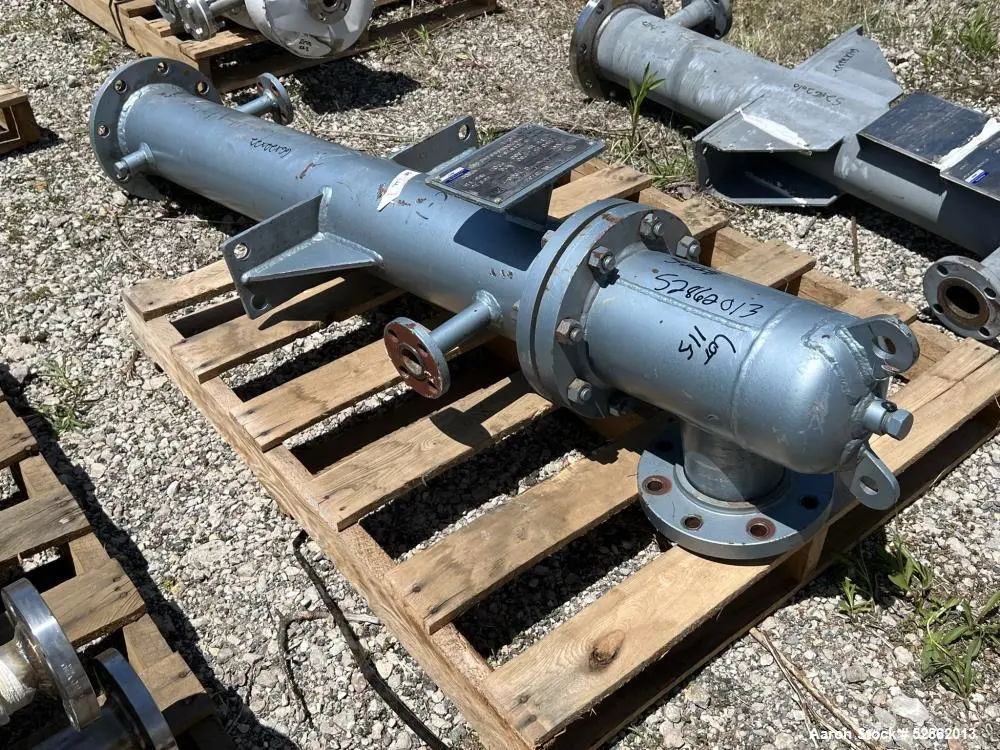

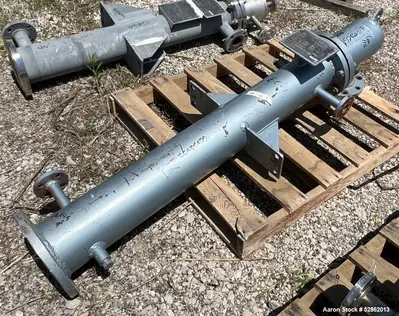

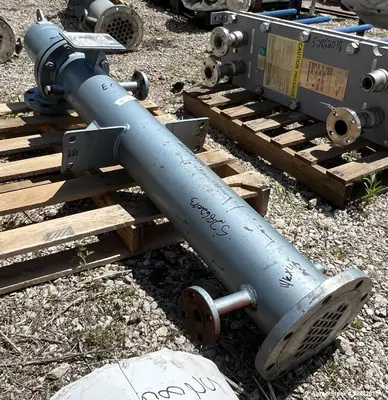

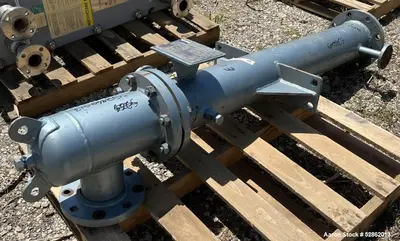

The Used Doyle & Roth Vertical Shell & Tube Condenser is a high-efficiency industrial heat exchanger, designed for condensation and heat recovery applications. With a heat transfer area of 19.6 square feet, this unit is constructed with a carbon steel shell and Hastelloy C-276 tubes, ensuring superior corrosion resistance for chemical, pharmaceutical, and industrial processes.
This single-pass condenser features (55) ¾" diameter, 24" long Hastelloy C-276 tubes, rated for 15 PSI/full vacuum at -20 to 450°F. The carbon steel shell is rated for 150 PSI/full vacuum at -20 to 400°F. It has a baffle spacing of 3.875", optimizing heat transfer efficiency. The unit is side lug-mounted for secure installation and provides an approximate 12,733 BTU/h heat transfer capacity.
Specifications
Type: Vertical Shell & Tube Condenser
Heat Transfer Surface Area: 19.6 sq. ft.
Passes: Single-Pass
Shell Material: Carbon Steel
Shell Rating: 150 PSI / Full Vacuum @ -20 to 400°F
Tube Material: Hastelloy C-276

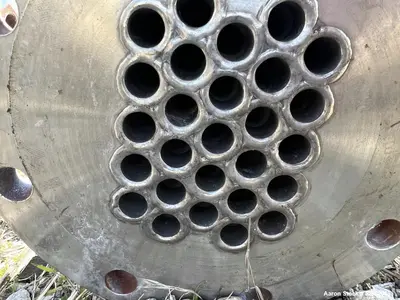

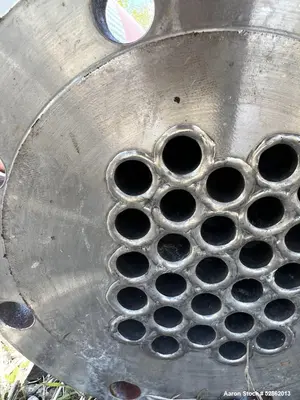

Tube Dimensions: (55) tubes, ¾" diameter, 24" length
Tube Rating: 15 PSI / Full Vacuum @ -20 to 450°F
Heat Transfer Capacity: ~12,733 BTU/h
Baffle Spacing: 3.875"
Mounting: Side Lug Mounted
Applications
Chemical & Petrochemical Processing (heat recovery, distillation, solvent condensation)
Pharmaceutical & Biotech Industry (reactor cooling, process gas condensation)
Food & Beverage Processing (steam condensation, controlled temperature processes)
HVAC & Refrigeration Systems (industrial cooling applications)
Power Generation & Energy Recovery (waste heat utilization, steam applications)
Compatible Products & Systems
Industrial condensation and cooling systems
Steam and process fluid heat exchangers
Energy recovery and thermal management systems
Chemical and pharmaceutical processing equipment
Specs
Type: Vertical Shell & Tube Condenser
Heat Transfer Surface Area: 19.6 sq. ft.
Passes: Single-Pass
Shell Material: Carbon Steel
Shell Rating: 150 PSI / Full Vacuum @ -20 to 400°F
Tube Material: Hastelloy C-276
Tube Dimensions: (55) tubes, ¾" diameter, 24" length
Tube Rating: 15 PSI / Full Vacuum @ -20 to 450°F
Heat Transfer Capacity: ~12,733 BTU/h
Baffle Spacing: 3.875"
Mounting: Side Lug Mounted
