Steam Heated Falling Film Reboiler

🏭 Manufacturer & Certification Info

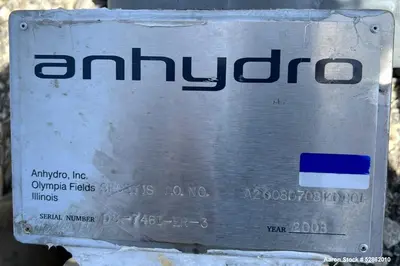

Manufacturer: Anhydro

Type: Vertical Falling Film Heat Exchanger / Reboiler

Mounting Style: Side lug mounted

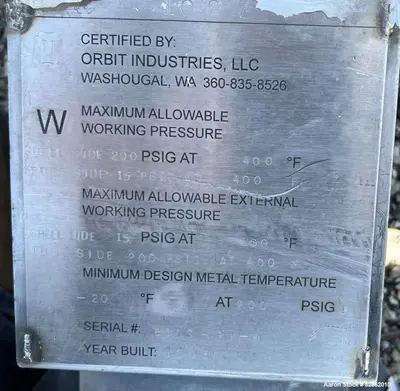

Certification: National Board, certified by Orbit Industries

Condition: Used

Orientation: Vertical

📝 Description

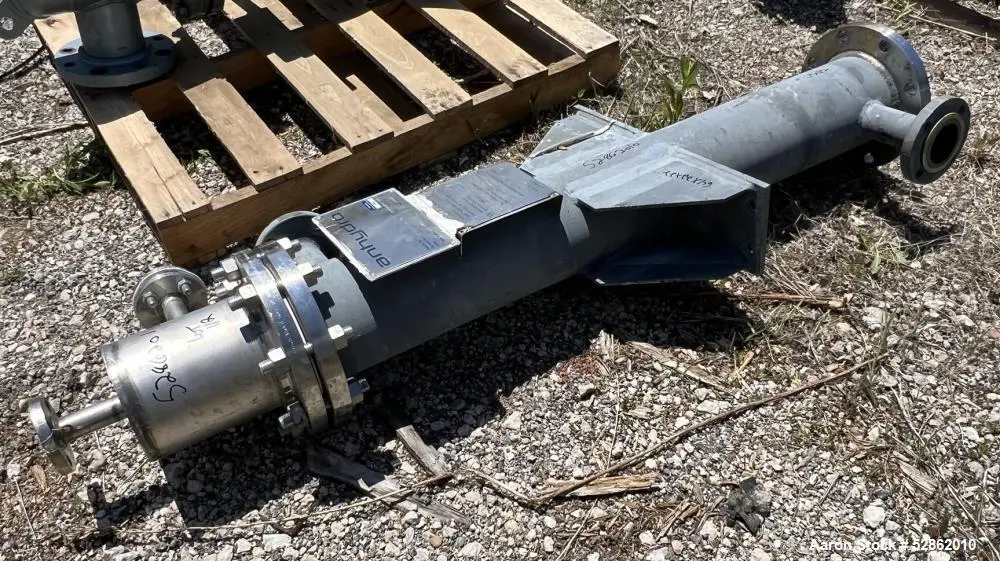

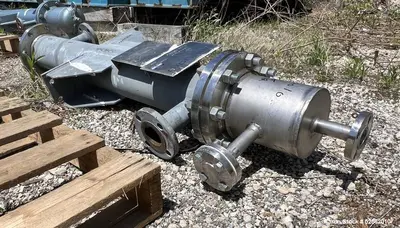

This Used Anhydro Vertical Falling Film Reboiler / Heat Exchanger is a compact yet powerful heat transfer unit designed for applications requiring high thermal efficiency and resistance to aggressive fluids. Featuring a carbon steel shell and (19) Hastelloy C-276 tubes, the unit is rated for high pressure and vacuum operations, making it ideal for chemical, pharmaceutical, and energy processing.
Key Features:

Heat transfer area: Approx. 19.5 square feet

Thermal capacity: 40,000 BTU/h

Shell: Carbon steel, rated 200 PSI / full vacuum @ -20°F to 400°F

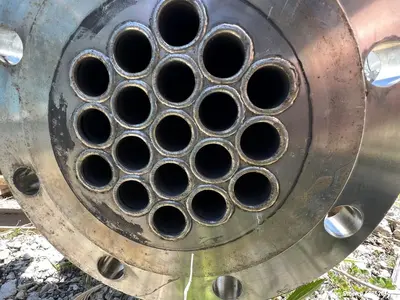

Tubes: (19) 1" dia x 47" long, Hastelloy C-276, rated 15 PSI internal / 200 PSI external @ -20°F to 400°F

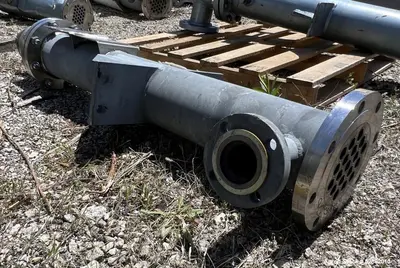

Openings: (2) 2", (2) 1"

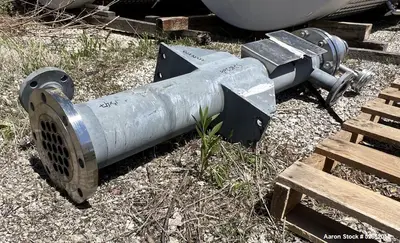

Mounting: Side lug mounted

Certification: National Board, Orbit Industries

📐 Specifications

Feature
Detail

Manufacturer
Anhydro

Equipment Type
Falling Film Heat Exchanger / Reboiler

Heat Transfer Area
19.5 square feet

Tube Material
Hastelloy C-276 (19 tubes, 1" x 47")

Shell Material
Carbon Steel

Shell Pressure Rating
200 PSI / Full Vacuum @ -20°F to 400°F

Tube Pressure Rating
15 PSI Internal / 200 PSI External @ -20°F to 400°F

BTU Capacity
40,000 BTU/h

Openings
(2) 2", (2) 1"

Mounting Style
Side lug mounted

Certification
National Board, certified by Orbit Industries

Orientation
Vertical



🧪 Applications

Solvent evaporation and condensation systems

Falling film reboiling in distillation columns

Thermal fluid systems with corrosive media

Vacuum reboilers for high-purity processing

Biochemical and pharmaceutical heating

Concentration of heat-sensitive liquids

Chemical production (acids, solvents, esters)

Waste stream heat recovery

Pilot-scale chemical process development

Skid-mounted thermal systems

🎯 Fluids & Substances Typically Handled

Organic solvents

Heat transfer oils

High-purity water

Ethanol and alcohols

Bio-based process fluids

Refrigerants and glycols

Light hydrocarbons

Acidic and corrosive mixtures

Pharmaceuticals

Specialty chemicals
