USED HUGHES ANDERSON AET

Manufacturers Info:

Manufacturer: Hughes-Anderson

Model Type: 2-Pass Shell & Tube Heat Exchanger

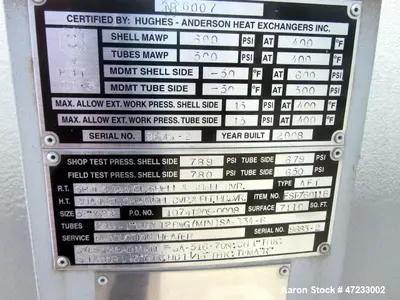

Serial Number: 9683-2

National Board Number: 6007

Year Built: 2008

Material: Carbon Steel

Configuration: Type AET, Horizontal

Description:
This unused Hughes-Anderson 2-Pass Shell & Tube Heat Exchanger is an industrial-grade thermal transfer system with 7,110 square feet of heat transfer surface. Constructed from carbon steel, it is engineered for 600 PSI and full vacuum operation at temperatures ranging from -50°F to 400°F. The unit features (989) 1" diameter x 28' long carbon steel tubes, providing optimal heat exchange efficiency. It is saddle-mounted for stability and includes large 10" shell openings and 14" tube openings for seamless process integration.
Specifications:

Heat Transfer Surface Area: 7,110 Sq. Ft.

Configuration: 2-Pass Shell & Tube

Shell Material: Carbon Steel

Shell Rating: 600 PSI / Full Vacuum at -50°F to 400°F

Tube Rating: -50°F to 500 PSI / Full Vacuum at 400°F

Tube Bundle: (989) 1" Diameter x 28' Long Carbon Steel Tubes

Shell Openings: (2) 10"

Tube Openings: (2) 14"

Mounting: Saddle Mounted

Orientation: Horizontal

Applications:

Oil & Gas Processing
Chemical & Petrochemical Plants
Power Generation Facilities
HVAC & Refrigeration Systems
Pharmaceutical & Biotech Manufacturing
Food & Beverage Processing
Heat Recovery & Energy Efficiency Systems

Common Products Used With This Heat Exchanger:

Industrial Boilers & Steam Systems
Cooling Towers & Chillers
Process Heaters & Thermal Fluid Systems
Refrigerants & HVAC Systems
Petroleum & Chemical Processing Fluids
Waste Heat Recovery Systems
