USED HUGHES ANDERSON AET

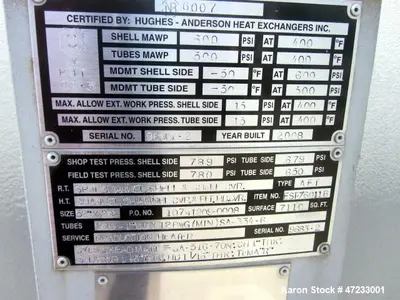

Manufacturers Info:

Manufacturer: Hughes-Anderson

Model Type: 2-Pass Shell & Tube Heat Exchanger

Serial Number: 9683-1

National Board Number: 6006

Year Built: 2008

Material: Carbon Steel

Configuration: Type AET, Horizontal

Description:

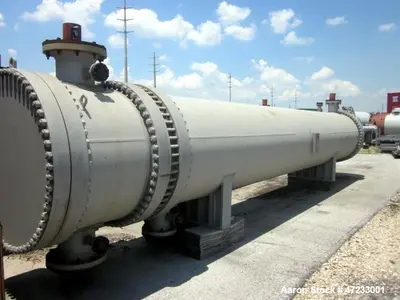

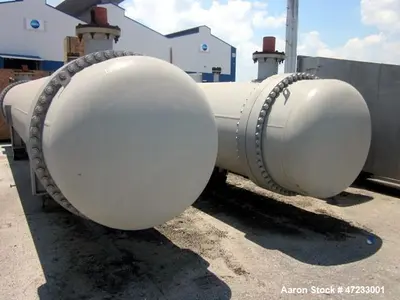

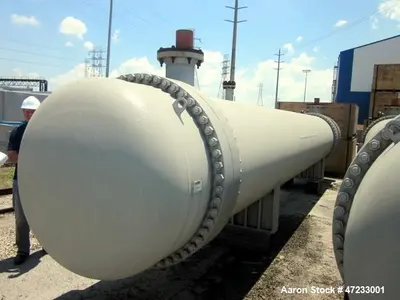

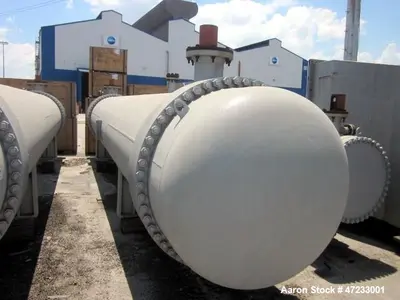

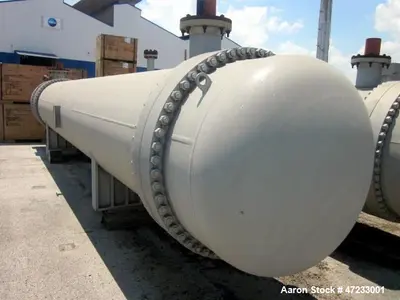

This unused Hughes-Anderson 2-Pass Shell & Tube Heat Exchanger is a high-capacity industrial heat transfer solution with 7,110 square feet of surface area. Built from carbon steel, it is designed for 600 PSI and full vacuum operation at a temperature range of -50°F to 400°F. Featuring (989) 1" diameter x 28' long tubes, this exchanger is optimized for efficient thermal exchange in demanding applications. The unit is mounted on saddles for stable installation and includes large inlet and outlet openings for improved process flow.
Specifications:

Heat Transfer Surface Area: 7,110 Sq. Ft.

Configuration: 2-Pass Shell & Tube

Shell Material: Carbon Steel

Shell Rating: 600 PSI / Full Vacuum at -50°F to 400°F

Tube Rating: -50°F to 500 PSI / Full Vacuum at 400°F

Tube Bundle: (989) 1" Diameter x 28' Long Carbon Steel Tubes

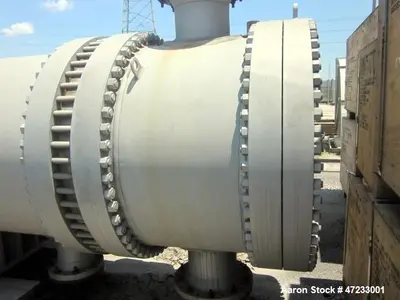

Shell Openings: (2) 10"

Tube Openings: (2) 14"

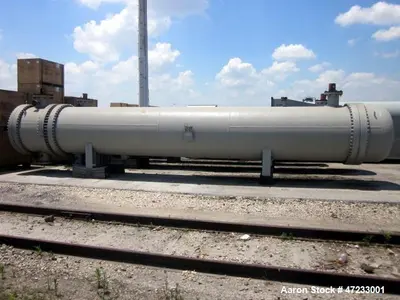

Mounting: Saddle Mounted

Orientation: Horizontal

Applications:

Oil & Gas Processing
Chemical & Petrochemical Plants
Power Generation Facilities
HVAC & Refrigeration Systems
Pharmaceutical & Biotech Manufacturing
Food & Beverage Processing
Heat Recovery & Energy Efficiency Systems

Common Products Used With This Heat Exchanger:

Industrial Boilers & Steam Systems
Cooling Towers & Chillers
Process Heaters & Thermal Fluid Systems
Refrigerants & HVAC Systems
Petroleum & Chemical Processing Fluids
Waste Heat Recovery Systems
