USED ILSUNG CORPORATION AEU

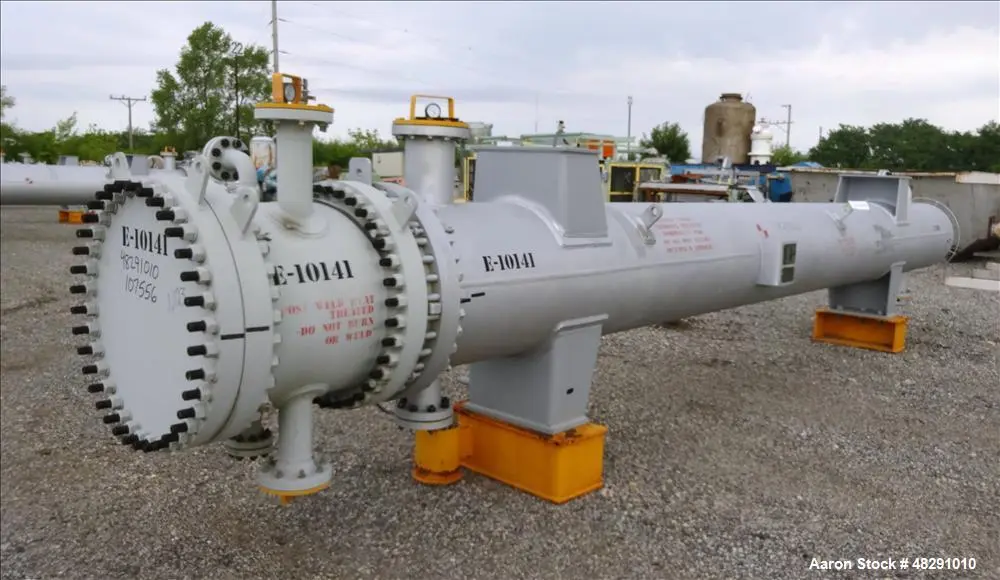

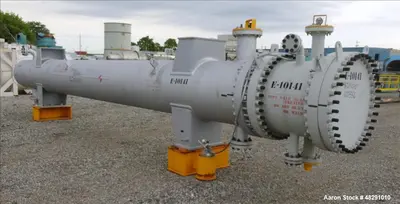

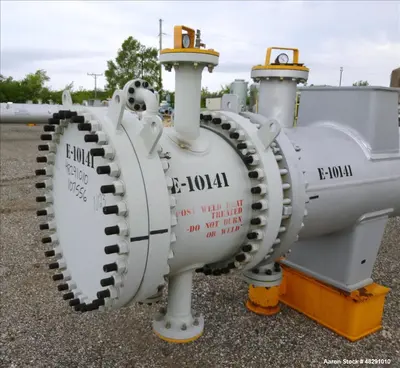

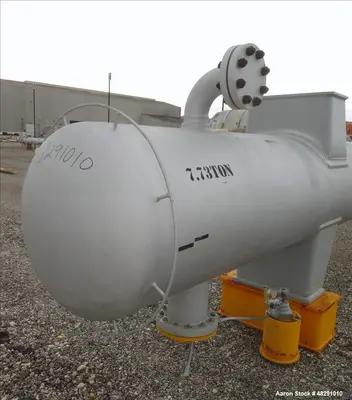

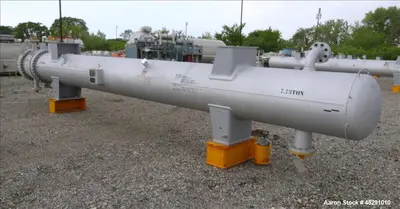

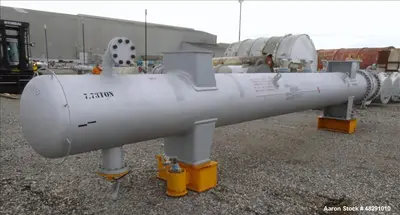

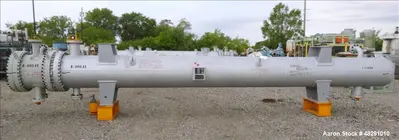

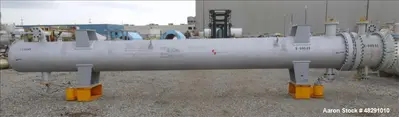

Unused- 4-Pass U Tube Shell & Tube Heat Exchanger, Approximate 2143 Square Feet, Tema Type AEU, Carbon Steel, Horizontal. Shell rated 412psi/Full Vacuum at 392 degrees F., (231) 3/4" diameter x 288" long tubes rated 372psi/Full Vacuum at 392 degrees F. Openings shell (2) 4", (2) 6", openings for tubes (2) 2", (2) 4". Mfg: Ilsung Corporation. Serial# 14-HE-041, National Board# 2025, built 2014. OAD 346"L X 38"W X 76"T, 18018 lbs. Documents available. Nitrogen purged by manufacturer after testing and prior to storage.

Used Equipment Facts About This Machine
Manufacturer Information:

Manufacturer: Ilsung Corporation
Model: AEU
Equipment Type: 4-pass U-tube shell and tube heat exchanger
TEMA Type: AEU

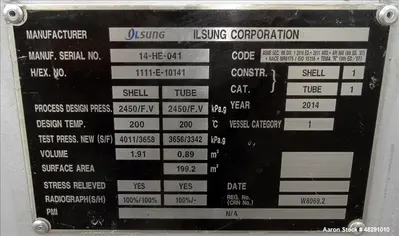

Serial Number: 14-HE-041

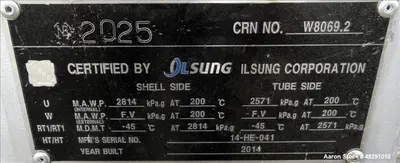

National Board Number: 2025
Year Built: 2014
Configuration: Horizontal
Mounting: Saddle mounted
Condition: Unused
Stock Number: 48291010

Main Product Description:
Unused Ilsung Corporation AEU 4-pass U-tube shell and tube heat exchanger with approximately 2,143 square feet of heat transfer surface. This horizontal carbon steel heat exchanger is built to TEMA Type AEU configuration and features a shell rating of 412 PSI/full vacuum at 392°F and tube rating of 372 PSI/full vacuum at 392°F. The unit includes 231 carbon steel tubes measuring 3/4" diameter x 288" long, shell openings of (2) 4" and (2) 6", and tube openings of (2) 2" and (2) 4". Built in 2014 and saddle mounted, this unused industrial heat exchanger is suited for process heating, cooling, condensing, heat recovery, and other thermal transfer applications requiring carbon steel construction and high-pressure capability.
Specifications:

Stock Number: 48291010
Manufacturer: Ilsung Corporation
Model: AEU
Type: U-tube shell and tube heat exchanger
TEMA Type: AEU
Number of Passes: 4
Heat Transfer Surface Area: Approximately 2,143 sq. ft.
Orientation: Horizontal
Shell Material: Carbon steel
Tube Material: Carbon steel
Head Material: Carbon steel
Shell Pressure Rating: 412 PSI/full vacuum
Shell Temperature Rating: 392°F
Tube Pressure Rating: 372 PSI/full vacuum
Tube Temperature Rating: 392°F
Tubes: 231 tubes
Tube Size: 3/4" diameter x 288" long
Tube Length: 288"
Shell Openings: (2) 4", (2) 6"
Tube Openings: (2) 2", (2) 4"
Mounting: Saddle mounted
Serial Number: 14-HE-041
National Board Number: 2025
Year Built: 2014
Overall Dimensions: 346" L x 38" W x 76" T
Condition: Unused

Applications:

Process heating and cooling
Chemical processing
Petrochemical processing
Oil and gas processing
Heat recovery systems
Utility heating and cooling loops
Industrial thermal transfer systems
Condensing applications
Process temperature control
Boiler, chiller, and thermal fluid system support

Suitable Products / Materials:

Water
Steam
Thermal fluids
Process liquids compatible with carbon steel
Hydrocarbon streams compatible with carbon steel
Cooling water
Condensate
Non-sanitary industrial fluids compatible with the exchanger design and metallurgy

FAQs:

What is the condition of this heat exchanger? This Ilsung Corporation AEU shell and tube heat exchanger is listed as unused.

What is the heat transfer surface area? The exchanger has approximately 2,143 square feet of heat transfer surface.

What are the pressure and temperature ratings? The shell is rated 412 PSI/full vacuum at 392°F, and the tubes are rated 372 PSI/full vacuum at 392°F.

What material is this heat exchanger made from? The shell, tubes, and head are listed as carbon steel.

What is the tube configuration? This is a 4-pass U-tube shell and tube heat exchanger with 231 tubes measuring 3/4" diameter x 288" long.

Is this heat exchanger horizontal or vertical? This unit is a horizontal, saddle-mounted heat exchanger.

Can Aaron Equipment help with shipping? Yes. Aaron Equipment can help coordinate freight options, loading details, and shipping information based on the buyer’s location and project requirements.

How can Aaron Equipment help me confirm this unit is right for my application? Aaron Equipment can help review available specifications, photos, dimensions, and quote details so buyers can determine whether this heat exchanger fits their process needs.

How do I request pricing? Use the Request a Price Quote option on the listing or contact Aaron Equipment with Stock #48291010.
