USED ILSUNG CORPORATION AEU

Manufacturer Information:

Manufacturer: Ilsung Corporation
Model: AEU
Equipment Type: 4-pass U-tube shell and tube heat exchanger

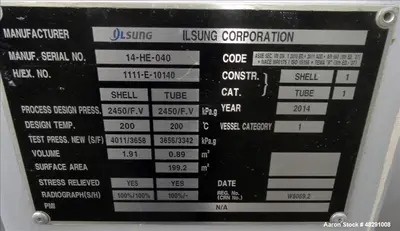

Serial Number: 14-HE-040

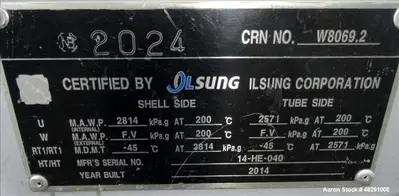

National Board Number: 2024
Year Built: 2014
Configuration: TEMA Type AEU, horizontal
Condition: Unused
Stock Number: 48291008

Main Product Description:

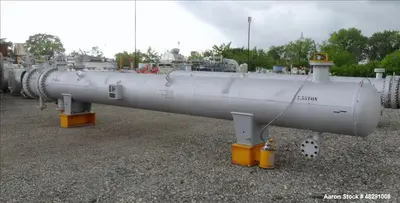

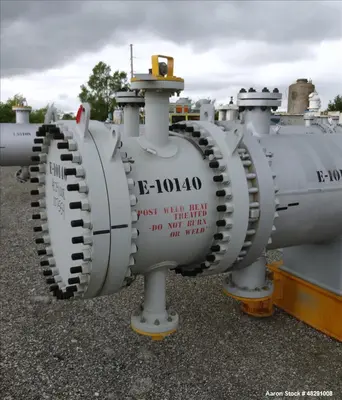

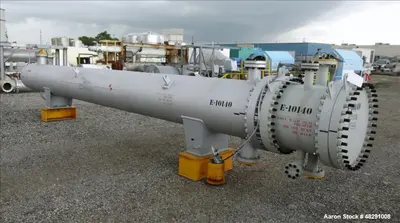

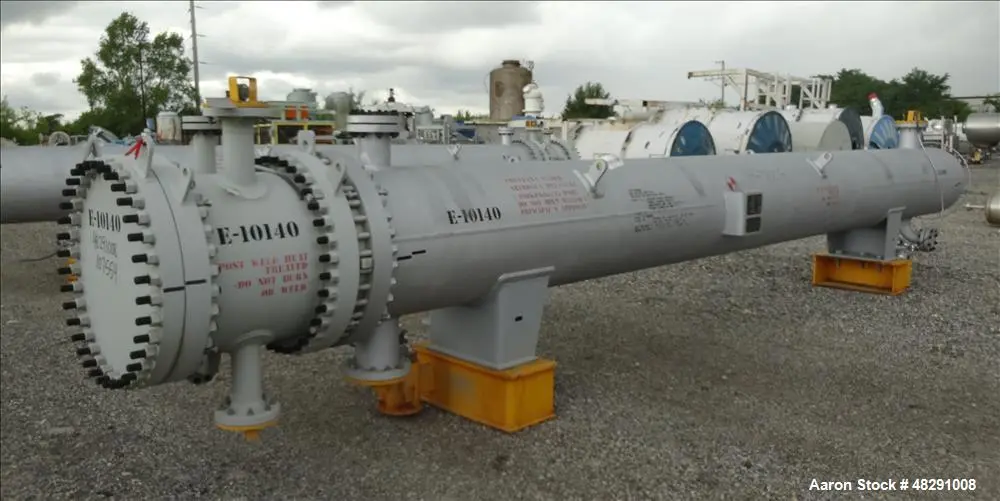

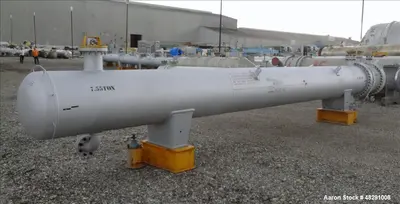

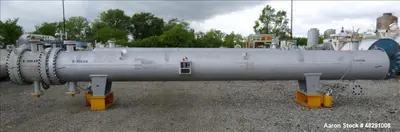

Unused Ilsung Corporation AEU 4-pass U-tube shell and tube heat exchanger with approximately 2,143 square feet of heat transfer surface. This horizontal carbon steel heat exchanger is designed with a shell rating of 412 PSI/full vacuum at 392°F and tube rating of 372 PSI/full vacuum at 392°F. The unit includes 231 carbon steel tubes measuring 3/4" diameter x 288" long, shell openings of (2) 4" and (2) 6", and tube openings of (2) 2" and (2) 4". Built in 2014 and saddle mounted, this unused industrial heat exchanger is suitable for process heating, cooling, condensing, heat recovery, and other thermal transfer applications where carbon steel construction and high-pressure capability are required.
Specifications:

Stock Number: 48291008
Manufacturer: Ilsung Corporation
Model: AEU
Type: U-tube shell and tube heat exchanger
TEMA Type: AEU
Number of Passes: 4
Heat Transfer Surface Area: Approximately 2,143 sq. ft.
Orientation: Horizontal
Shell Material: Carbon steel
Tube Material: Carbon steel
Head Material: Carbon steel
Shell Pressure Rating: 412 PSI/full vacuum
Shell Temperature Rating: 392°F
Tube Pressure Rating: 372 PSI/full vacuum
Tube Temperature Rating: 392°F
Tubes: 231 tubes
Tube Size: 3/4" diameter x 288" long
Shell Openings: (2) 4", (2) 6"
Tube Openings: (2) 2", (2) 4"
Mounting: Saddle mounted
Serial Number: 14-HE-040
National Board Number: 2024
Year Built: 2014
Overall Dimensions: 346" L x 38" W x 76" T
Condition: Unused

Applications:

Process heating and cooling
Chemical processing
Petrochemical processing
Oil and gas processing
Heat recovery systems
Utility heating and cooling loops
Industrial thermal transfer systems
Condensing and temperature control applications
Boiler, chiller, and thermal fluid system support

Suitable Products / Materials:

Water
Steam
Thermal fluids
Process liquids compatible with carbon steel
Hydrocarbon streams compatible with carbon steel
Cooling water
Condensate
Non-sanitary industrial fluids compatible with the exchanger design and metallurgy

FAQs:

What is the condition of this heat exchanger? This Ilsung Corporation AEU shell and tube heat exchanger is listed as unused.

What is the heat transfer surface area? The exchanger has approximately 2,143 square feet of heat transfer surface.

What are the pressure and temperature ratings? The shell is rated 412 PSI/full vacuum at 392°F, and the tubes are rated 372 PSI/full vacuum at 392°F.

What material is this heat exchanger made from? The listing identifies the shell, tubes, and head as carbon steel.

What is the tube configuration? This is a 4-pass U-tube shell and tube heat exchanger with 231 tubes measuring 3/4" diameter x 288" long.
