USED ILSUNG CORPORATION AEU

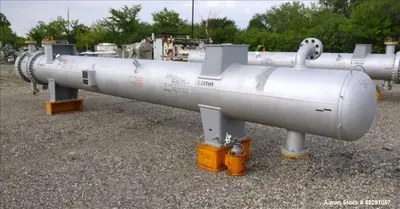

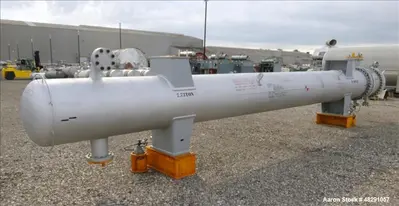

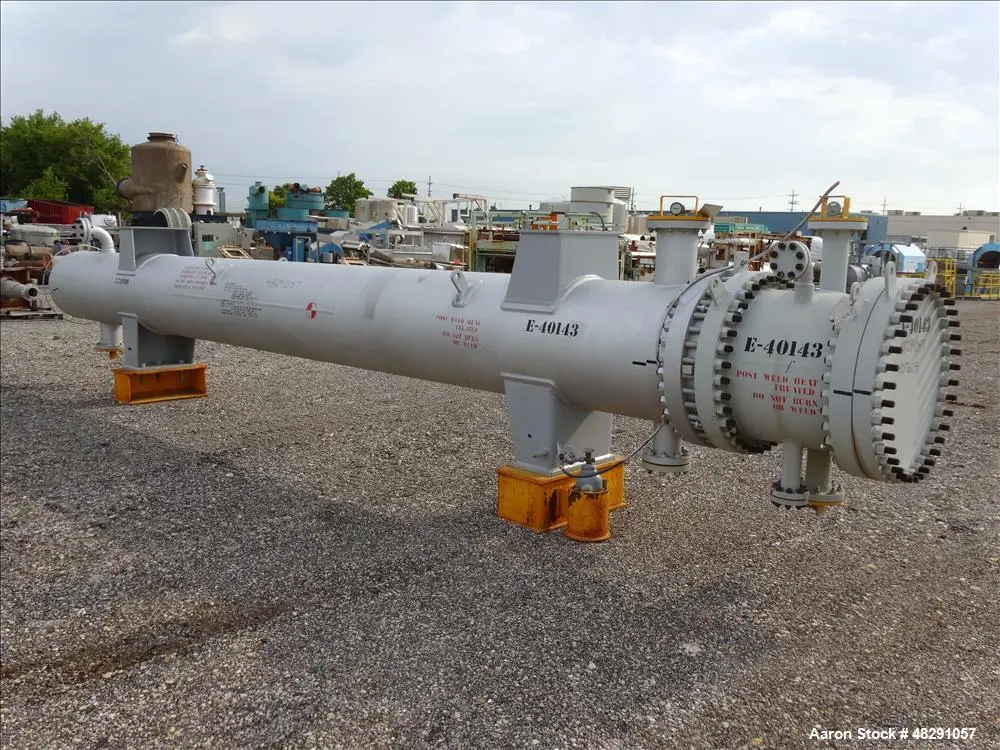

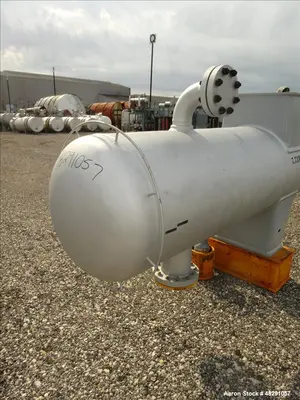

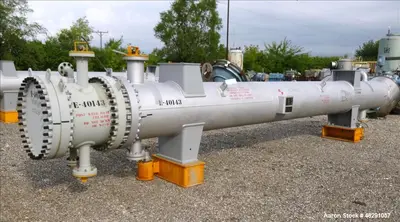

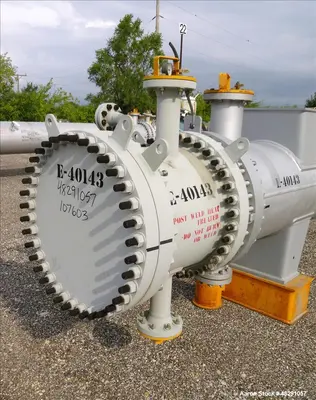

Unused- 4 Pass U Tube Shell & Tube Heat Exchanger, Approximate 2140 Square Feet, Tema Type AEU, Carbon Steel, Horizontal. Shell rated 412psi/Full Vacuum at 392 degrees F., (231) 3/4" diameter x 288" long tubes rated 372psi/Full Vacuum at 392 degrees F. Openings shell (2) 4", (2) 6", openings for tubes (2) 2", (2) 4". Mfg: Ilsung Corporation. Serial# 14-HE-061, National Board# 2045, built 2015. OAD 346"L X 38"W X 78"T, 18018 lbs. Documents available. Nitrogen purged by manufacturer after testing and prior to storage.

Used Equipment Facts About This Machine
Manufacturer Information:
Ilsung Corporation is listed as the manufacturer of this unused shell and tube heat exchanger. The unit is identified as Model AEU and TEMA Type AEU with a 4-pass U-tube configuration, carbon steel construction, and horizontal saddle-mounted design. This type of industrial heat exchanger is commonly used for process heating, process cooling, condensing, heat recovery, and pressure/vacuum service where a carbon steel shell and tube exchanger is required.
Main Product Description:
Available for sale is an unused Ilsung Corporation AEU 4-pass U-tube shell and tube heat exchanger with approximately 2140 square feet of heat transfer surface area. This horizontal saddle-mounted carbon steel exchanger is designed as a TEMA Type AEU unit and includes a shell rated for 412 psi/full vacuum at 392 degrees F and (231) 3/4" diameter x 288" long carbon steel tubes rated for 372 psi/full vacuum at 392 degrees F. The exchanger includes carbon steel shell, carbon steel tubes, carbon steel head, shell openings of (2) 4" and (2) 6", tube openings of (2) 2" and (2) 4", Serial #14-HE-061, National Board #2045, 2015 year built, overall dimensions of 346" L x 38" W x 78" T, and listed weight of 18,018 lbs. Documents are available, and the unit was nitrogen purged by the manufacturer after testing and prior to storage.
Specifications:

Stock Number: 48291057
Manufacturer: Ilsung Corporation
Model: AEU
Equipment Type: Shell and tube heat exchanger
Style: U-tube shell and tube heat exchanger
TEMA Type: AEU
Condition: Unused
Number of Passes: 4
Heat Transfer Surface Area: Approximately 2140 sq. ft.
Orientation: Horizontal
Mounting: Saddle mounted
Shell Material: Carbon steel
Tube Material: Carbon steel
Head Material: Carbon steel
Shell Pressure Rating: 412 psi/full vacuum
Shell Temperature Rating: 392 degrees F
Tube Pressure Rating: 372 psi/full vacuum
Tube Temperature Rating: 392 degrees F
Tube Count: 231 tubes
Tube Diameter: 3/4"
Tube Length: 288"
Shell Openings: (2) 4", (2) 6"
Tube Openings: (2) 2", (2) 4"

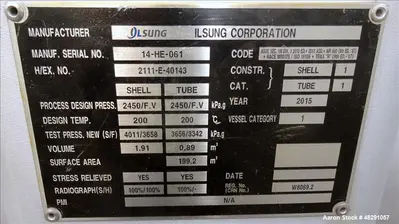

Serial Number: 14-HE-061

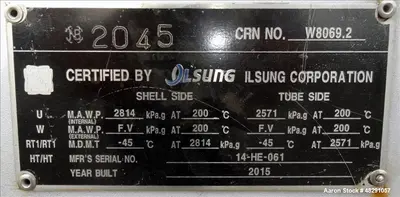

National Board Number: 2045
Year Built: 2015
Overall Dimensions: 346" L x 38" W x 78" T
Listed Weight: 18,018 lbs
Documents: available
Preservation Detail: nitrogen purged by manufacturer after testing and prior to storage
ASME Stamp: Yes

Product Details:

Unused Ilsung Corporation shell and tube heat exchanger
Model AEU
TEMA Type AEU design
4-pass U-tube configuration
Approximately 2140 sq. ft. heat transfer surface area
Horizontal saddle-mounted design
Carbon steel shell
Carbon steel tubes
Carbon steel head
Shell rated 412 psi/full vacuum at 392 degrees F
Tube side rated 372 psi/full vacuum at 392 degrees F
Includes (231) 3/4" diameter x 288" long tubes
Shell openings include (2) 4" and (2) 6"
Tube openings include (2) 2" and (2) 4"
Serial #14-HE-061
National Board #2045
Built in 2015
Overall dimensions: 346" L x 38" W x 78" T
Listed weight: 18,018 lbs
Documents available
Nitrogen purged by manufacturer after testing and prior to storage
Suitable for industrial process heating, cooling, condensing, and heat recovery applications

Applications:

Chemical processing
Petrochemical processing
Refinery process service
Oil and gas processing
Process fluid heating
Process fluid cooling
Condensing service
Heat recovery
Waste heat recovery
Power generation systems
Steam and hot water process systems
Industrial utility systems
Thermal fluid systems
Vacuum-rated process applications
High-pressure process heat transfer
Carbon-steel-compatible process service

Suitable Products / Materials:

Process water
Cooling water
Condensate
Steam service, depending on process requirements
Hydrocarbon streams, subject to compatibility review
Chemical process fluids, subject to compatibility review
Thermal fluids, subject to compatibility review
Glycol solutions, subject to compatibility review
Oil-based process fluids, subject to compatibility review
Other compatible non-corrosive or carbon-steel-compatible process fluids

FAQs:

What type of heat exchanger is this?
This is an unused 4-pass U-tube shell and tube heat exchanger with a TEMA Type AEU design.

Who is the manufacturer?
The manufacturer is listed as Ilsung Corporation.

What is the listed model?
The main specifications list the model as AEU.

What is the heat transfer surface area?
The listed heat transfer surface area is approximately 2140 square feet.

What materials of construction are listed?
The shell, tubes, and head are listed as carbon steel.

What are the pressure and temperature ratings?
The shell is rated 412 psi/full vacuum at 392 degrees F. The tube side is rated 372 psi/full vacuum at 392 degrees F.

How many tubes does this exchanger have?
The listing states the exchanger has (231) 3/4" diameter x 288" long tubes.

What are the overall dimensions?
The listed overall dimensions are 346" L x 38" W x 78" T.

What is the listed weight?
The listed weight is 18,018 lbs.

What year was this heat exchanger built?
The listed year built is 2015.

Are documents available for this heat exchanger?
Yes. The listing states that documents are available.

Was the exchanger preserved for storage?
Yes. The listing states the unit was nitrogen purged by the manufacturer after testing and prior to storage.

Can this heat exchanger be used for chemical or petrochemical service?
This type of carbon steel shell and tube heat exchanger is commonly used in chemical, petrochemical, refining, oil and gas, and industrial process applications, but final suitability depends on the process fluid, corrosion profile, pressure, temperature, and buyer engineering review.

Can Aaron Equipment help with shipping?
Yes. Aaron Equipment can help coordinate freight, loading, logistics, and shipping support for used industrial equipment purchases. Buyers should contact Aaron Equipment with the stock number, destination, and shipping requirements.

How can Aaron Equipment help with this purchase?
Aaron Equipment can provide a quote, answer equipment questions, review available photos and specifications, help confirm available documentation, and assist with logistics for this unused Ilsung Corporation shell and tube heat exchanger.
