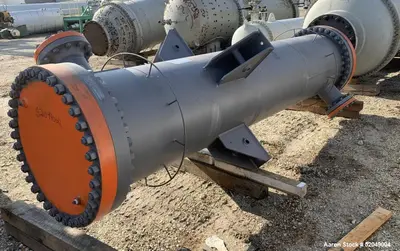

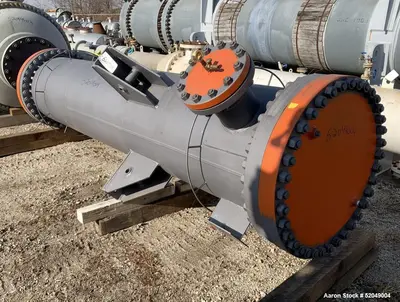

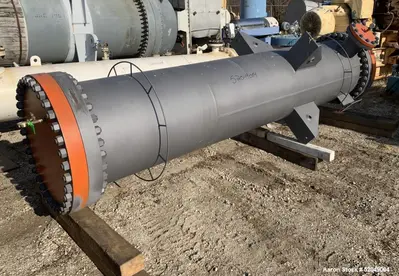

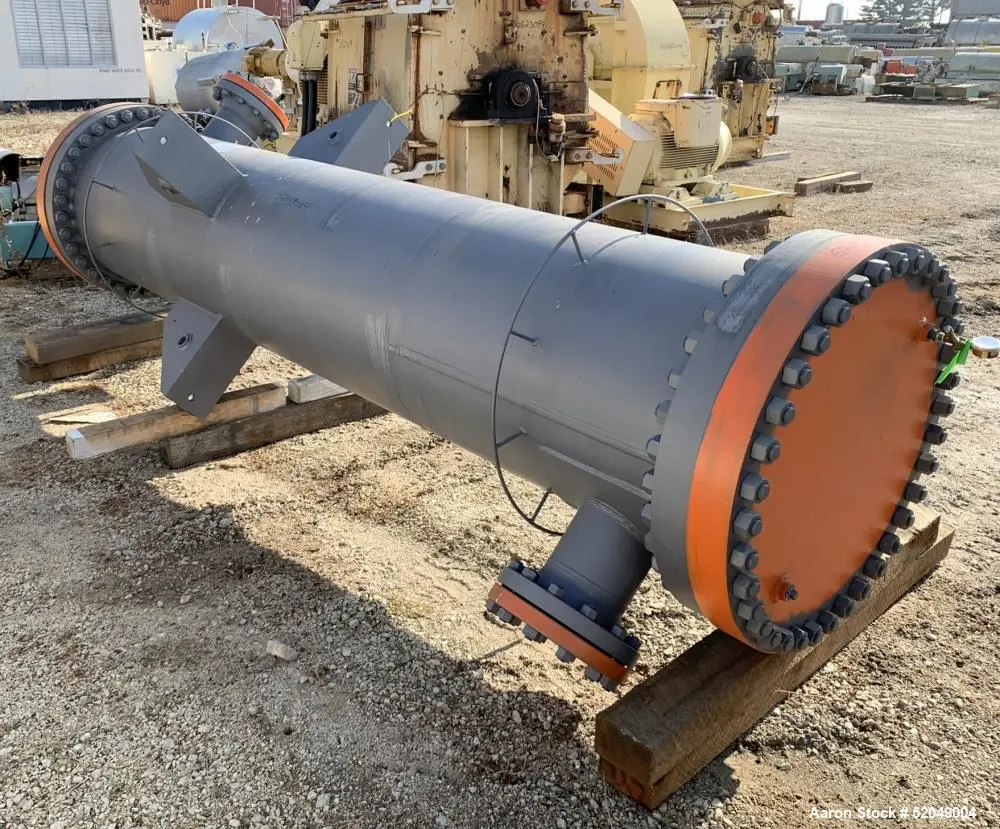

USED SOUTHERN HEAT EXCHANGER 29-144-E-STC REBOILER

Manufacturers Info:

Manufacturer: Southern Heat Exchanger

Model Type: Shell & Tube Heat Exchanger

Serial Number: 8-00022

National Board Number: 13099

Year Built: 2008

Material: Carbon Steel

Configuration: Vertical, Side Lug Mounted

Description:
This installed but unused Southern Heat Exchanger Shell & Tube Heat Exchanger offers 1,761 square feet of heat transfer surface. Designed with a carbon steel shell rated for 413 PSI and full vacuum operation at -20°F to 650°F, this high-performance unit is ideal for demanding industrial applications. The (789) 3/4" O.D. x 12' long x 12-gauge carbon steel tubes are built to withstand 610 PSI and full vacuum at -20°F to 650°F, ensuring superior thermal efficiency. SHELL ONLY, NO HEADS.
Specifications:

Heat Transfer Surface Area: 1,761 Sq. Ft.

Configuration: Shell & Tube Heat Exchanger

Shell Material: Carbon Steel

Shell Rating: 413 PSI / Full Vacuum at -20°F to 650°F

Tube Rating: 610 PSI / Full Vacuum at -20°F to 650°F

Tube Bundle: (789) 3/4" O.D. x 12' Long x 12-Gauge Carbon Steel Tubes

Shell Openings: (2) 8"

Mounting: Side Lug Mounted

Orientation: Vertical

Condition: Installed but Unused

Note: Shell Only – No Heads Included

Applications:

Oil & Gas Processing
Chemical & Petrochemical Industries
Power Generation & Energy Production
HVAC & Refrigeration Systems
Food & Beverage Processing
Pharmaceutical & Biotech Manufacturing
Industrial Heat Recovery & Thermal Efficiency Systems

Common Products Used With This Heat Exchanger:

Industrial Boilers & Steam Systems
Cooling Towers & Chillers
Process Heaters & Thermal Fluid Systems
Refrigerants & HVAC Systems
Petroleum & Chemical Processing Fluids
Waste Heat Recovery Systems
