USED SOUTHERN HEAT EXCHANGER 15-144 BEM

Manufacturer: Southern Heat Exchanger

Model: Unspecified

Serial Number: 01-041

National Board Number: 10959

Year Built: 2001

Description

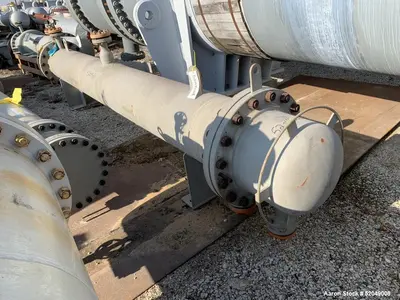

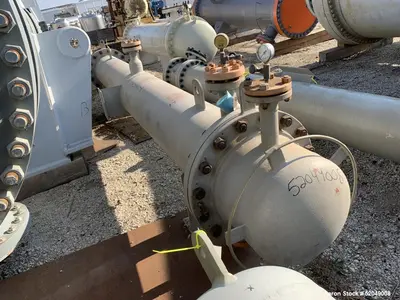

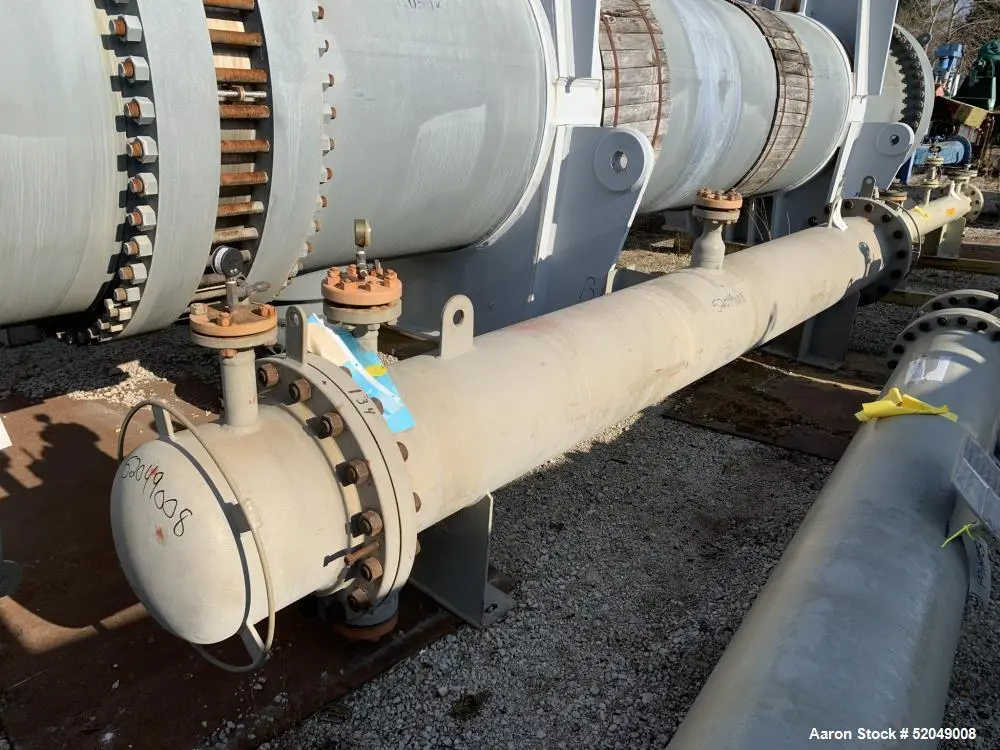

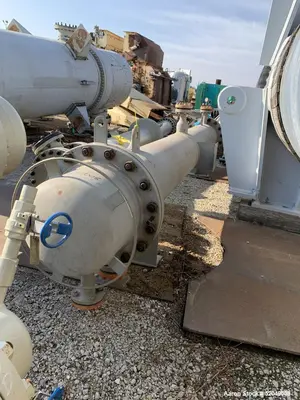

This Unused Southern Heat Exchanger Shell & Tube Heat Exchanger was installed and removed without use, making it ideal for industrial applications requiring reliable thermal exchange. It features carbon steel construction for durability and is saddle mounted for secure installation.
The carbon steel shell is rated at 700 psi/full vacuum at -20 to 300°F, while the (61) ¾" diameter, 12' long, 12-gauge straight tubes are rated at 198 psi/full vacuum at -20 to 400°F. The unit includes four 2" shell-side openings and two 2" tube-side openings, allowing for flexible process integration.
Specifications

Type: Shell & Tube Heat Exchanger

Material: Carbon Steel

Orientation: Horizontal

Surface Area: 140.4 sq. ft.

Shell Rating: 700 psi / Full Vacuum @ -20 to 300°F

Tube Rating: 198 psi / Full Vacuum @ -20 to 400°F

Tubes: (61) tubes, ¾" diameter, 12' long, 12-gauge straight

Shell Openings: (4) 2"

Tube Openings: (2) 2"

Mounting: Saddle-mounted

Weight: 2,100 lbs.

Applications

Chemical & Petrochemical Processing (heat recovery, cooling, condensation)

Oil & Gas Industry (refining, process heating, gas cooling)

Power Generation (waste heat recovery, steam systems)

Food & Beverage Processing (temperature control, pasteurization)

Pharmaceutical & Industrial Processing (controlled heating/cooling applications)

Compatible Products & Systems

Industrial cooling and heating systems
Steam and process fluid handling
Oil refining and gas separation units
Heat recovery and energy efficiency applications
