USED CUST-O-FAB 35-240

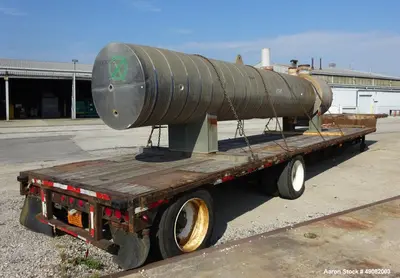

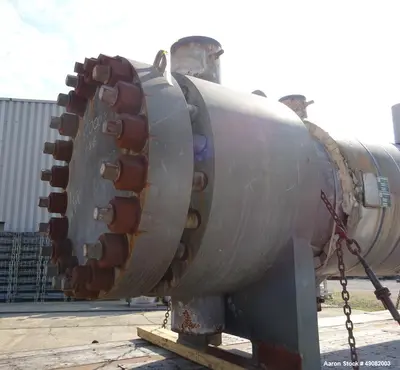

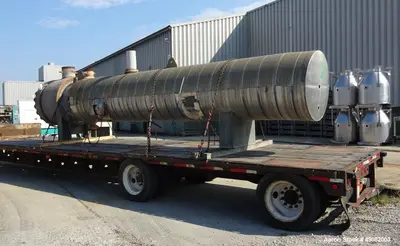

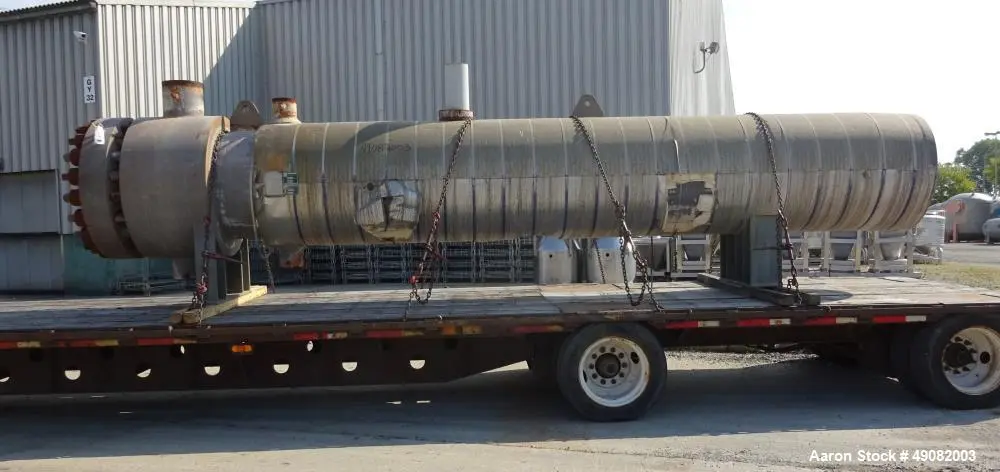

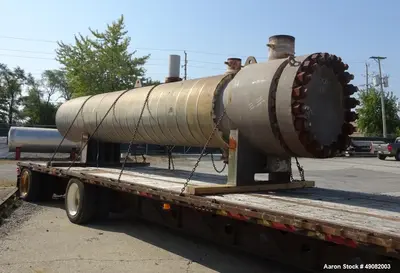

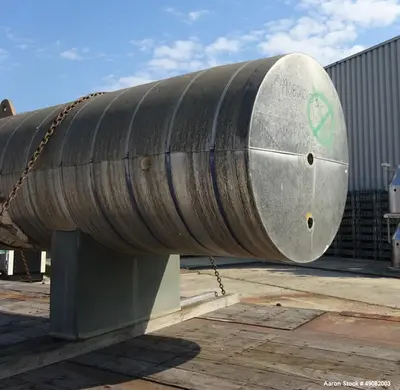

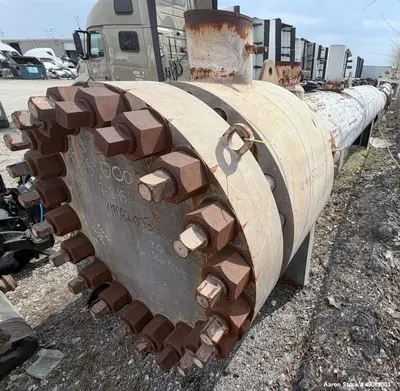

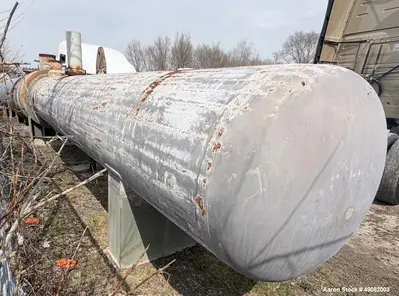

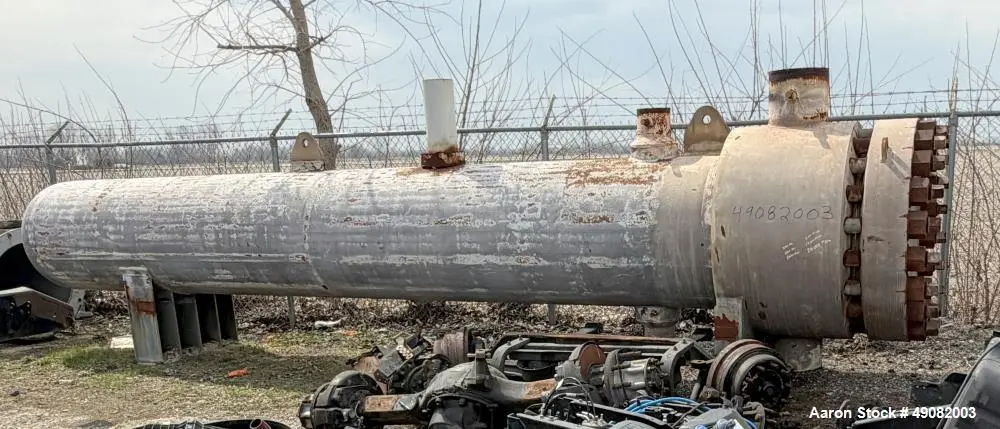

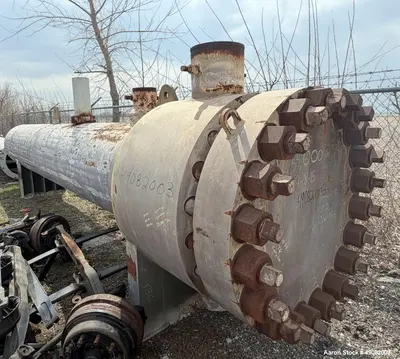

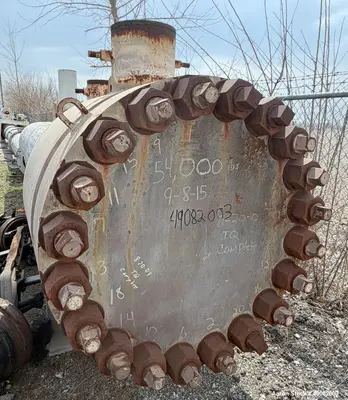

Used Cust-O-Fab U Tube Shell & Tube Heat Exchanger. Approximate 3150 Square Feet. Carbon steel shell rated 1715 psi at 25 to 610 Degrees F. (295) 1" diameter x 20' long SA-213-T11 Chromium-molybdenum steel tubes rated 2184 psi at 30 to 750 degrees F. 1-1/4" tube pitch. Two pass. Openings shell: (3) 8", tubes: 14", 12". Saddle mounted. Serial# 97-202. National Board# 4666. All openings are pipe stubs.

Used Equipment Facts About This Machine

Brand: Cust-O-Fab

Condition: Used

Serial Number: 97-202

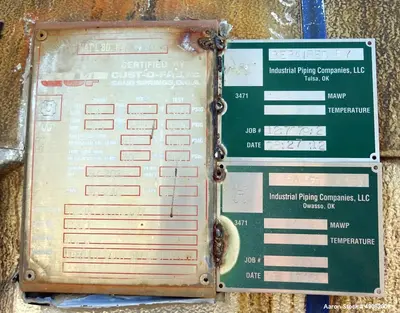

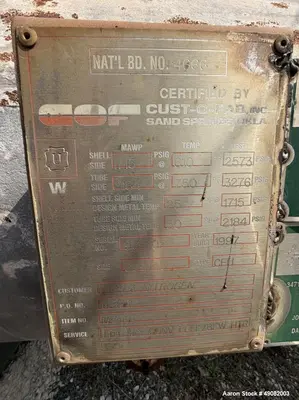

National Board Number: 4666

Description
This Cust-O-Fab U-Tube Shell & Tube Heat Exchanger is designed for high-pressure and high-temperature applications. It features 3150 square feet of heat transfer surface area and a carbon steel shell rated for 1715 psi at 25°F to 610°F, making it ideal for industrial heat transfer processes.
The unit contains (295) SA-213-T11 Chromium-Molybdenum steel tubes, each measuring 1" diameter x 20' long, rated for 2184 psi at 30°F to 750°F. With a 1-1/4" tube pitch and a two-pass design, this exchanger ensures efficient thermal exchange. All openings are pipe stubs for easy integration into existing systems.
Specifications

Heat Transfer Surface Area: 3150 ft²

Design: U-Tube, Two-Pass

Tube Bundle:

Material: SA-213-T11 Chromium-Molybdenum Steel

Quantity: 295 tubes

Dimensions: 1" diameter x 20' long

Tube Pitch: 1-1/4"

Pressure Rating: 2184 psi

Temperature Rating: 30°F to 750°F

Shell:

Material: Carbon Steel

Pressure Rating: 1715 psi

Temperature Rating: 25°F to 610°F

Connections:

Shell Openings: (3) 8"

Tube Openings: 14", 12"

All Openings: Pipe Stubs

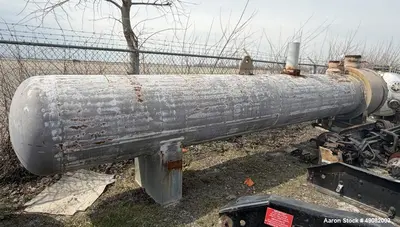

Mounting: Saddle Mounted

Applications

Oil & Gas Processing – High-pressure crude oil and gas cooling

Petrochemical Industry – Refinery heat exchangers and condensers

Power Generation – Steam and high-temperature process applications

Chemical Processing – Handling of high-temperature and high-pressure fluids

Industrial Manufacturing – Heat recovery systems for heavy-duty operations

Compatible Products

Industrial boilers and steam systems
High-pressure heat recovery systems
Petrochemical and refinery processing units
Superheated fluid handling systems
