Ellett Industries Shell & Tube Heat Exchanger. Used
Overview
Description

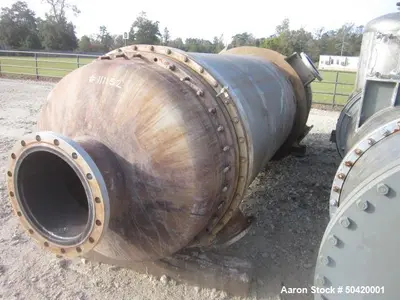

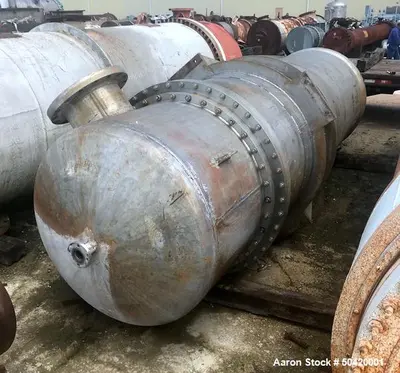

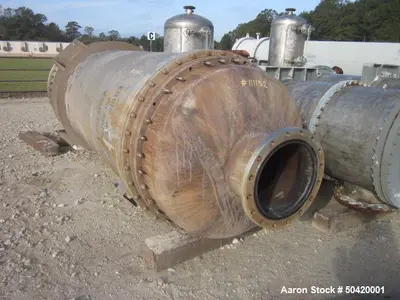

Used Ellett Industries Shell & Tube Heat Exchanger, 2890 Square Foot, Vertical. Single pass. (1125) Zirconium (SB-523) 3/4" diameter x 13' 2" long tubes rated 50 psi at 400 degrees F. 304 Stainless steel shell rated 75 psi at 100 degrees F. Side lug mounted. Buddle: National board # 659. Serial # 43624. Built 2006. Shell & heads: National board # 49114. Serial # 4901035. Built 1989.
Specifications
Used Equipment Facts About This Machine
Brand: Ellett Industries
Condition: Used
Year Built:
Bundle: 2006 (NB #659, Serial #43624)
Shell & Heads: 1989 (NB #49114, Serial #4901035)
Description
This Ellett Industries Vertical Shell & Tube Heat Exchanger is designed for high-efficiency heat transfer in demanding industrial applications. With a 2890 square foot heat transfer surface area, it features (1125) Zirconium (SB-523) tubes measuring ¾" diameter x 13' 2" long, making it highly resistant to corrosion and ideal for handling aggressive chemicals. The 304 stainless steel shell ensures durability and structural integrity.
The unit is a single-pass heat exchanger, rated for 50 psi at 400°F on the tube side and 75 psi at 100°F on the shell side. It is side-lug mounted for vertical installation, optimizing space efficiency.
Specifications
Heat Transfer Surface Area: 2890 ft²
Design: Vertical, single-pass

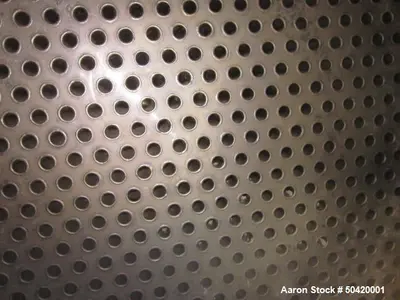

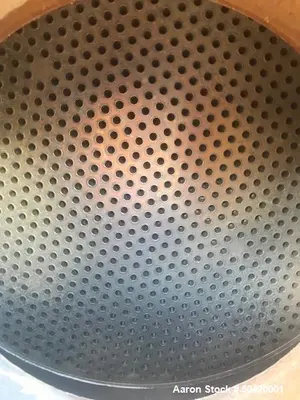

Tube Bundle:
Material: Zirconium (SB-523)
Quantity: 1125 tubes
Dimensions: ¾" diameter x 13' 2" long
Pressure Rating: 50 psi
Temperature Rating: 400°F
Shell:
Material: 304 Stainless Steel
Pressure Rating: 75 psi
Temperature Rating: 100°F

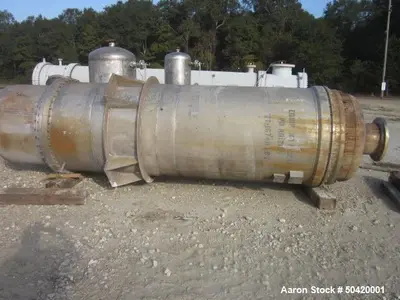

Mounting: Side-lug mounted

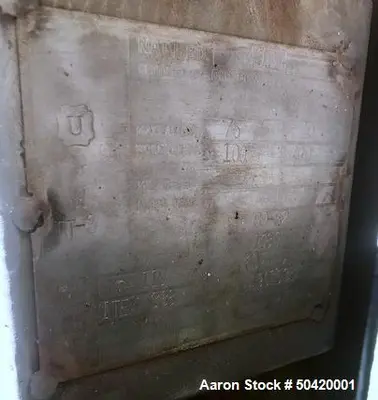

Certifications:
Bundle: National Board #659
Shell & Heads: National Board #49114
Applications
Chemical & Petrochemical Processing – Corrosive fluid heat exchange
Power Generation – Steam and condensate applications
Pharmaceutical Industry – Temperature-sensitive processes
Water Treatment & Desalination – High-purity heat transfer
Aerospace & Specialty Metals Processing – Zirconium-compatible applications
Compatible Products
Steam and thermal oil systems
Industrial cooling and heating units
Chemical processing lines requiring corrosion resistance
High-temperature and pressure-resistant heat exchangers
