USED ELLET MFG 22-8LP-W5
Overview
Description

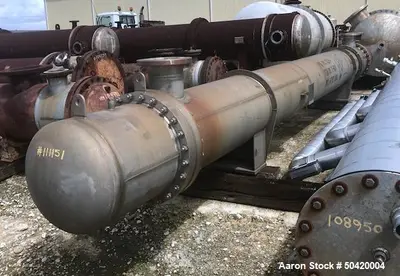

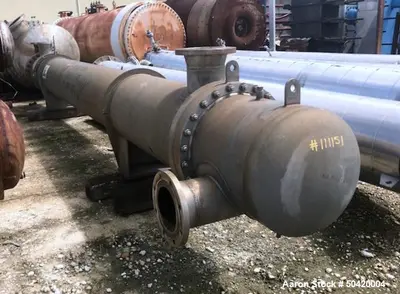

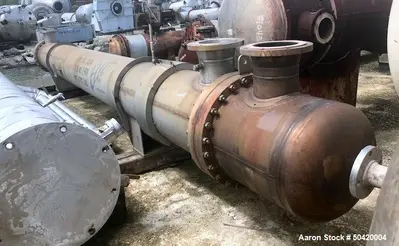

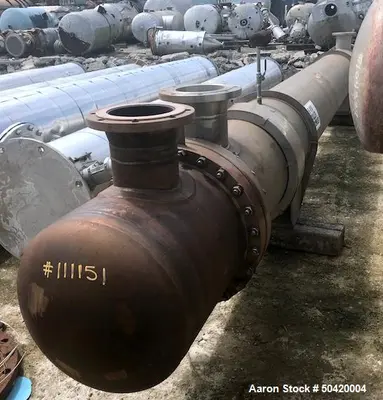

Used Ellett Industries Shell & Tube Heat Exchanger, 930 Square Foot. Horizontal. Single pass. (237) Zirconium (SB-523) 3/4" diameter x 20' long tubes rated 165 psi / FV at -20 to 550 degrees F. 304L Stainless steel shell rated 75 psi at -20 to 200 degrees F. Openings shell: (2) 8", tubes: (2) 8". Saddle mounted. National Board # 719. Serial # 43890. Built 2008. Previous use Nitric Acid cooler condenser.
Specifications
Used Equipment Facts About This Machine
Brand: Ellett Industries
Condition: Used
Year Built: 2008

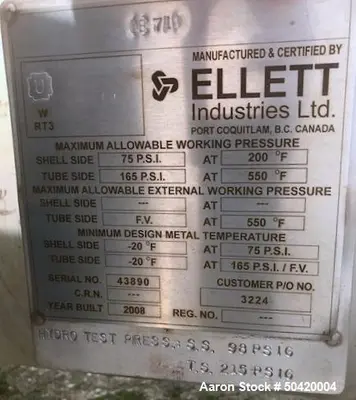

Serial Number: 43890
National Board Number: 719
Description
This Ellett Industries Horizontal Shell & Tube Heat Exchanger is a single-pass unit designed for highly corrosive and high-temperature applications. It features 930 square feet of heat transfer surface area and (237) Zirconium (SB-523) tubes, each measuring ¾" diameter x 20' long, offering exceptional resistance to chemical attack. The 304L stainless steel shell ensures structural integrity while resisting moderate corrosion.
Designed to withstand extreme conditions, the tube side is rated for 165 psi / full vacuum (FV) at -20°F to 550°F, while the shell side is rated for 75 psi at -20°F to 200°F. This unit was previously used as a Nitric Acid cooler condenser, making it ideal for chemical and industrial processes requiring high corrosion resistance.
Specifications
Heat Transfer Surface Area: 930 ft²
Design: Horizontal, single-pass
Tube Bundle:
Material: Zirconium (SB-523)
Quantity: 237 tubes
Dimensions: ¾" diameter x 20' long
Pressure Rating: 165 psi / Full Vacuum (FV)
Temperature Rating: -20°F to 550°F
Shell:
Material: 304L Stainless Steel
Pressure Rating: 75 psi
Temperature Rating: -20°F to 200°F
Connections:
Shell Openings: (2) 8"
Tube Openings: (2) 8"
Mounting: Saddle mounted
Previous Use: Nitric Acid cooler condenser
Applications
Chemical Processing & Acid Cooling – Heat exchange for aggressive chemicals like nitric acid
Petrochemical Industry – High-temperature and pressure-resistant processing
Aerospace & Specialty Metals – Zirconium-compatible heat exchange
Pharmaceutical Industry – Corrosion-resistant fluid heating and cooling
Power Generation & High-Temperature Processes – Efficient thermal management
Compatible Products
Corrosive chemical cooling and heating systems
High-temperature and high-pressure industrial units
Nitric acid and specialty chemical processing lines
Heat exchangers for extreme temperature applications
