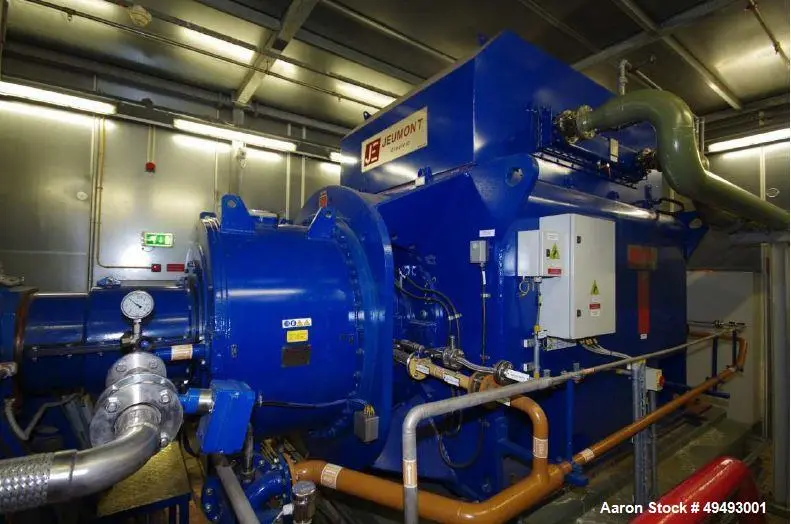

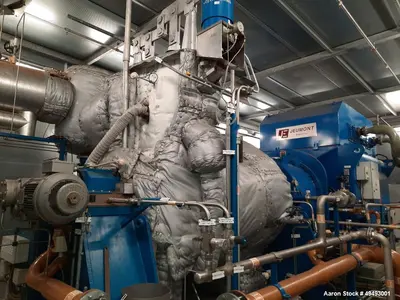

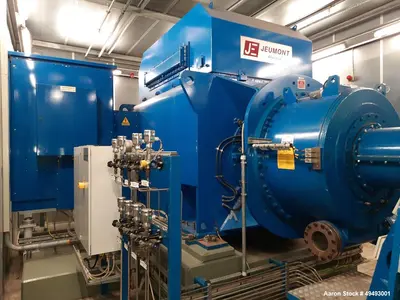

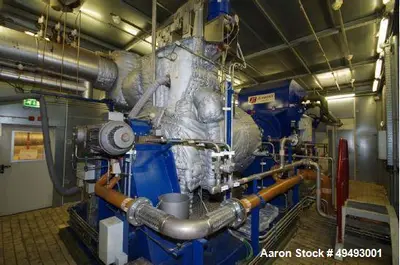

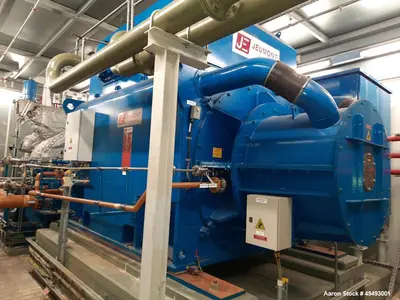

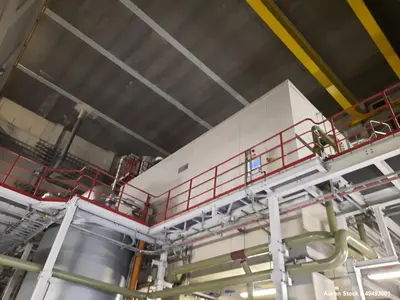

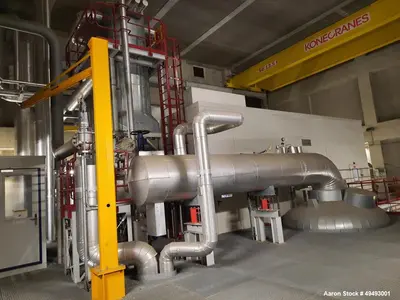

Used MAN Turbo 16 MW Steam Turbine Generator Assembly, Model MARC4-B00.

Used MAN Turbo 16 MW Steam Turbine Generator Assembly, Model MARC4-B00. 12,000 - 26,800 hp. Maximum flange diameter, live steam up to 250 mm, exhaust up to 1,500 mm. Maximum live steam conditions, 120 bar(a) / 520 degree C, 1,740 psi(a) / 968 degree F. 7,000 - 10,000 rpm. Includes: Jeumont electric generator, Model JISALT DECA 419. Renk Gearbox/transmission, Model CPG 100z/3M. Hydac control oil system, Model ISO-VG 46 DIN51515. Reinhold Wesselmann lubrication system. Approximately 60,000 hours. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer:
MAN Turbo
Description:
For sale: Used MAN Turbo 16 MW Steam Turbine Generator Assembly, Model MARC4-B00, delivering between 12,000 – 26,800 HP with variable speeds ranging from 7,000 – 10,000 RPM. Designed for high-performance industrial power applications, this unit handles maximum live steam conditions of 120 bar(a) / 520°C (1,740 psi(a) / 968°F) with a flange diameter of up to 250 mm for live steam and 1,500 mm for exhaust.
This complete assembly includes a Jeumont electric generator (Model JISALT DECA 419), a Renk gearbox/transmission (Model CPG 100z/3M), and an integrated Hydac control oil system (ISO-VG 46 DIN51515) for efficient operation. Also equipped with a Reinhold Wesselmann lubrication system to ensure long-lasting performance. The turbine has approximately 60,000 operating hours.
Specifications:

Manufacturer: MAN Turbo

Model: MARC4-B00

Power Output: 16 MW (12,000 – 26,800 HP)

Speed Range: 7,000 – 10,000 RPM

Live Steam Conditions: 120 bar(a) / 520°C (1,740 psi(a) / 968°F)

Flange Diameter:

Live Steam: Up to 250 mm
Exhaust: Up to 1,500 mm

Operating Hours: ~60,000

Included Components:

Electric Generator: Jeumont JISALT DECA 419

Gearbox/Transmission: Renk CPG 100z/3M

Control Oil System: Hydac ISO-VG 46 DIN51515

Lubrication System: Reinhold Wesselmann

Applications:

Industrial steam power generation
Combined heat and power (CHP) plants
Oil & gas refineries
Pulp and paper mills
Petrochemical facilities

What Products Would This Be Used For?

Steam-based electricity generation
Process steam and power in manufacturing
Renewable energy projects (biomass, waste-to-energy)
Cogeneration (CHP) systems
