USED ALAR ENGINEERING 340

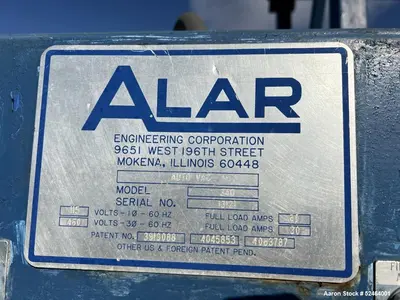

Manufacturer Information:

Brand: Alar

Model: Auto-Vac 340

Material: 304 Stainless Steel Drum

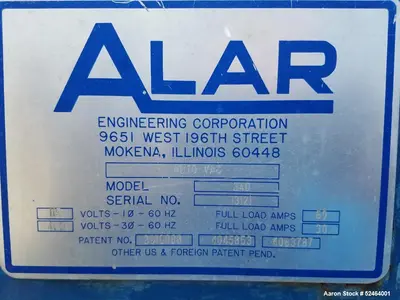

Serial Number: 13121

Description:

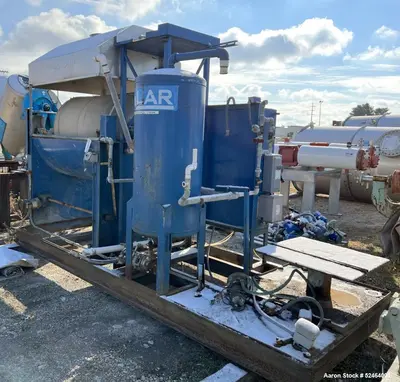

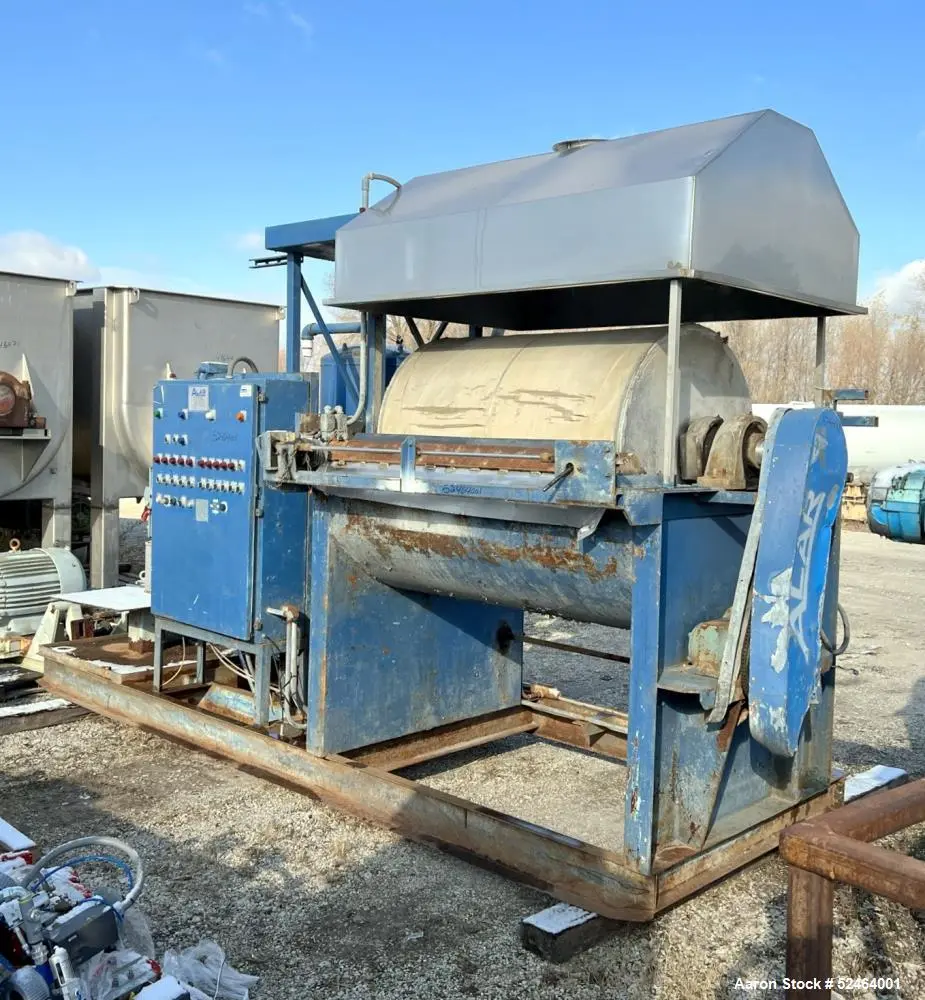

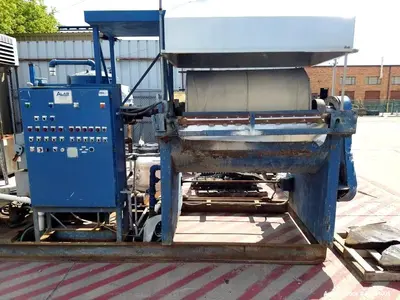

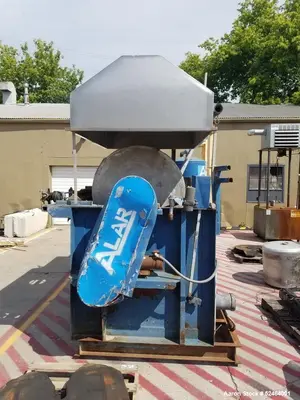

The Alar Auto-Vac Model 340 Rotary Vacuum Filter System is a high-efficiency liquid-solid separation system, designed for industrial filtration, wastewater treatment, and sludge dewatering applications.

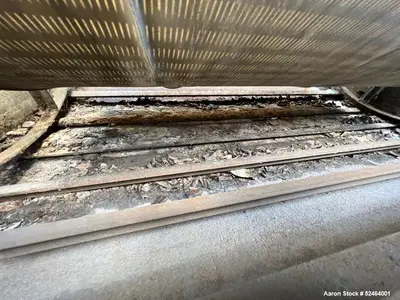

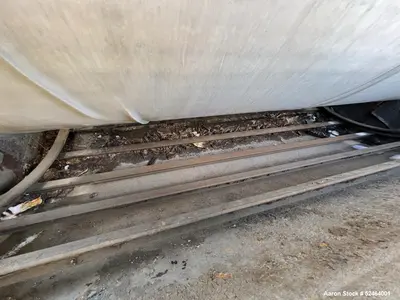

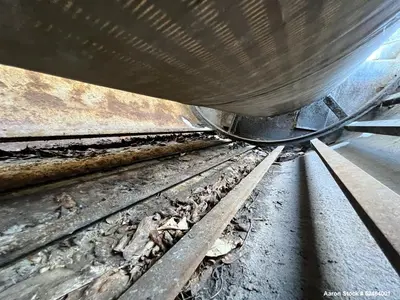

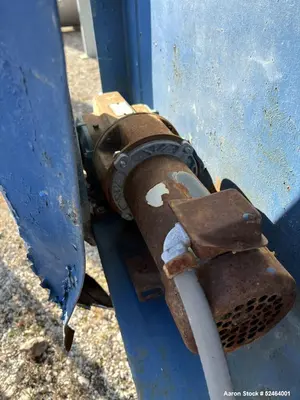

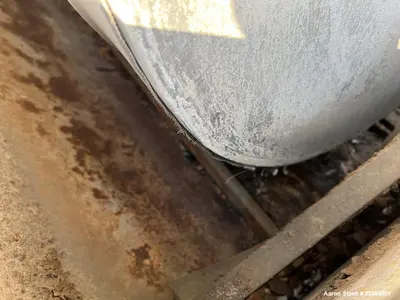

This system features a 36” diameter x 48” face 304 stainless steel drum, providing 37.7 square feet of nominal filtering area. The drum is driven by a 0.4 HP, 1750 RPM gear motor (288:1 ratio), ensuring steady vacuum filtration performance.

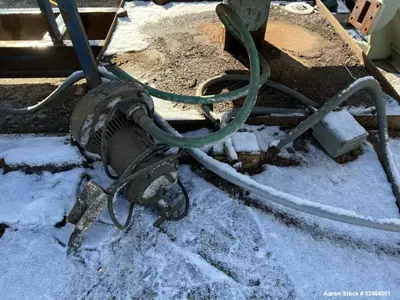

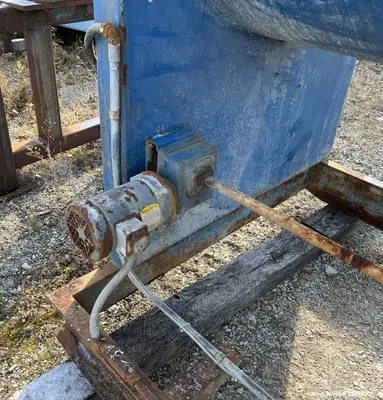

The dry solids discharge system includes an adjustable knife for precise material removal. The bottom holding tank is equipped with a rake agitator, driven by a 0.33 HP motor (1140 RPM), ensuring consistent material flow.

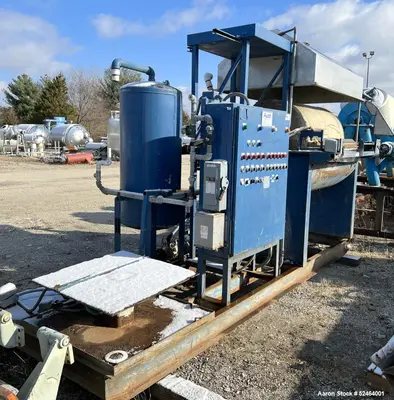

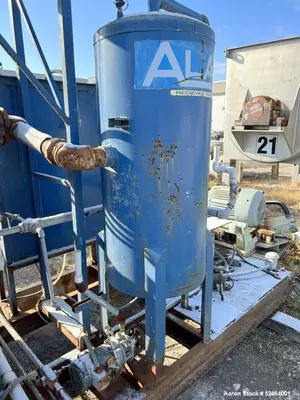

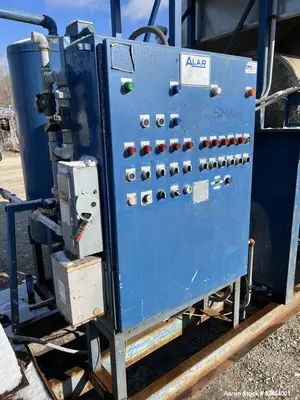

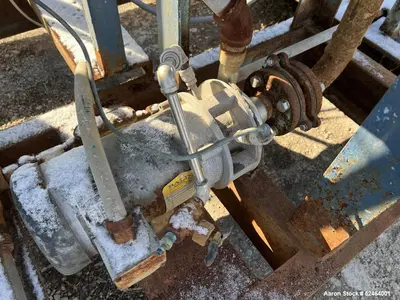

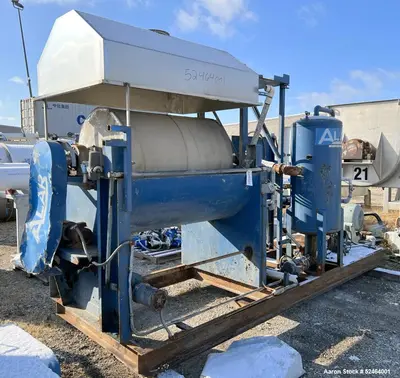

Additionally, the system includes a receiver tank with a pump, powered by a 1.5 HP motor (3450 RPM) for efficient liquid handling. The system is controlled via an Allen Bradley SLC PLC, allowing for automated operation and monitoring.
All components are unitized on a common carbon steel frame, ensuring stability and easy integration into industrial processes.
Key Features:

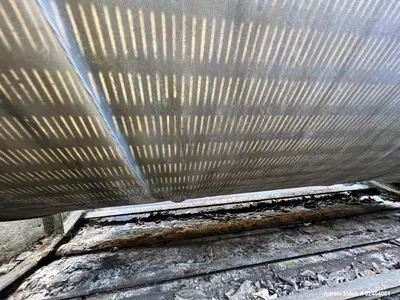

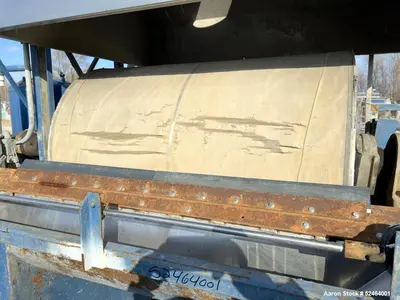

36” Diameter x 48” Face 304 Stainless Steel Drum

37.7 Square Feet of Nominal Filtering Area for high-capacity filtration

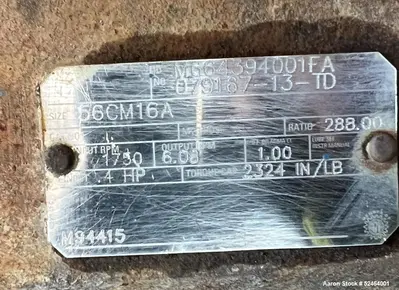

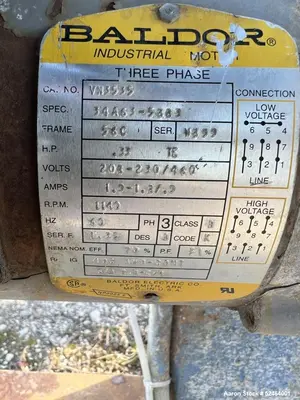

0.4 HP, 1750 RPM Drum Drive Motor (288:1 Ratio)

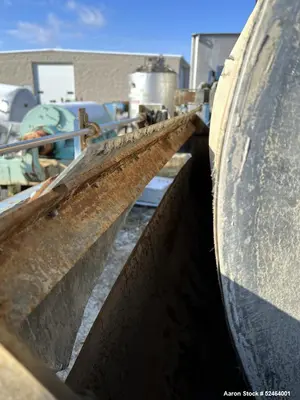

Dry Solids Discharge with Adjustable Knife for precise material removal
Bottom Holding Tank with Rake Agitator (0.33 HP, 1140 RPM Motor)

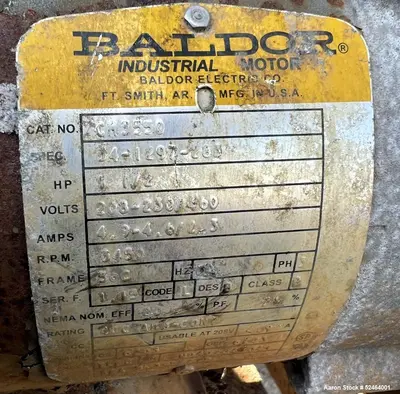

Receiver Tank with Pump (1.5 HP, 3450 RPM Motor)

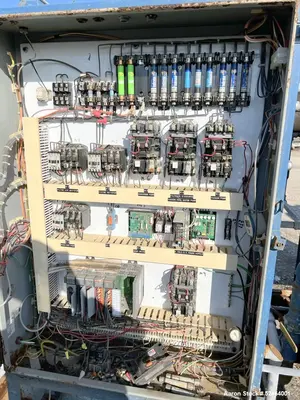

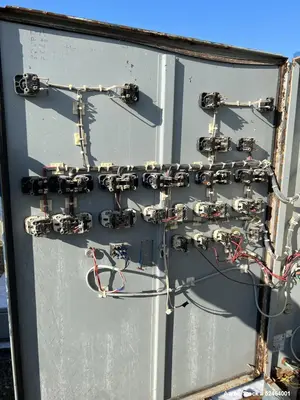

Allen Bradley SLC PLC Control Panel for automated operation
Total Connected Horsepower: 13 HP

Unitized on a Carbon Steel Frame for durability and stability

Specifications:

Machine Type: Rotary Vacuum Filter System

Brand: Alar

Model: Auto-Vac 340

Drum Size: 36” Diameter x 48” Face

Filtering Area: 37.7 Square Feet

Drum Drive Motor: 0.4 HP, 1750 RPM, 288:1 Ratio

Solids Discharge: Adjustable Knife

Agitator Motor: 0.33 HP, 1140 RPM

Pump Motor: 1.5 HP, 3450 RPM

Total Connected Horsepower: 13 HP

Control Panel: Allen Bradley SLC PLC

Frame: Carbon Steel

Serial Number: 13121

Applications:

Industrial Wastewater Treatment – Sludge dewatering and solid-liquid separation

Chemical Processing – Filtration of chemical slurries and process byproducts

Mining & Minerals – Dewatering of mineral and ore processing wastewater

Food & Beverage Industry – Liquid-solid separation in food production

Pharmaceutical Manufacturing – Recovery of valuable solids from liquid waste

What Products Would This Be Used For?

Wastewater treatment and sludge dewatering
Chemical and industrial filtration processes
Removal of solids from food processing waste
Recovery of valuable materials in pharmaceutical production
Dewatering of mining and mineral processing slurries
