USED ROSENMUND RSD-0.3-528-89

Manufacturer Information

Manufacturer: Rosenmund

Model: RSD-0.3-528-89 (RSD-3)

Condition: Used / Excellent Condition

Year Built: 1990

National Board Number: NB 911

Availability: Immediate

Description

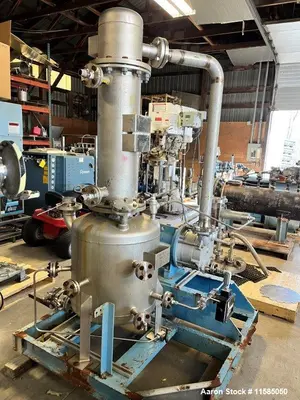

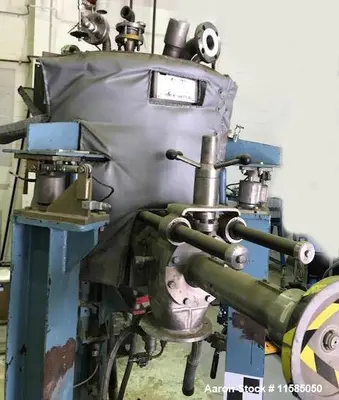

Used Rosenmund Filter Dryer, Model RSD-3 (RSD-0.3-528-89), engineered for filtration, washing, and drying operations in pharmaceutical, chemical, and fine chemical industries. Constructed with T316L stainless steel product contact surfaces for superior corrosion resistance, and T304L stainless steel jacket for thermal control, this versatile system ensures high containment, product purity, and process efficiency.
The filter area is 0.3 square meters, with a maximum vessel capacity of 45 gallons, suitable for small to mid-size batch processing. The vessel is pressure rated at 100 psi and full vacuum at 400°F, while the T304L jacket is rated at 150 psi at 400°F. The system includes a hydraulic agitator for efficient product discharge and uniform drying, and side discharge for ease of product removal.

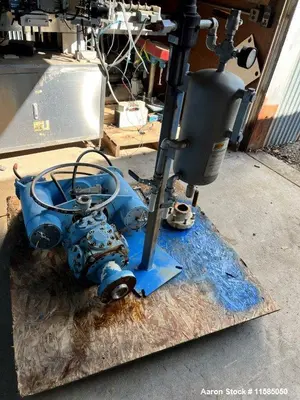

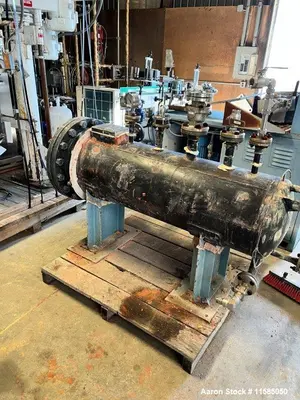

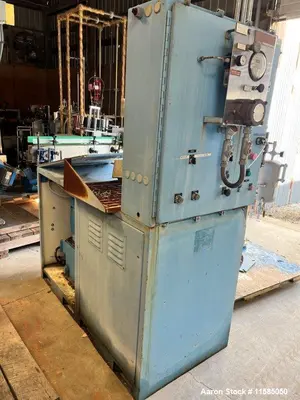

This unit comes with a complete vacuum system, including an Apovac 3.2/850 PMZF2510 Liquid Ring vacuum pump, receiver, and control panel, all skid-mounted for turnkey operation. The equipment is ideal for handling hazardous, potent, or sensitive materials, ensuring compliance with GMP and safety standards.

Specifications

Manufacturer: Rosenmund

Model: RSD-0.3-528-89 (RSD-3)

Year Built: 1990

National Board Number: NB 911

Product Contact Material: T316L Stainless Steel

Jacket Material: T304L Stainless Steel

Filter Area: 0.3 Square Meters

Maximum Vessel Capacity: 45 Gallons

Internal Pressure Rating: 100 psi / Full Vacuum @ 400°F

Jacket Pressure Rating: 150 psi @ 400°F

Agitator: Hydraulic Agitator

Discharge: Side Discharge

Vacuum System:

Apovac 3.2/850 PMZF2510 Liquid Ring Vacuum Pump
Skid Mounted Receiver
Control Panel Included

Applications: Filtration, Washing, Drying in Pharmaceuticals, Chemicals, and Fine Chemicals

Condition: Used / Excellent

Availability: In Stock

Applications

Active Pharmaceutical Ingredient (API) production
Fine chemical filtration and drying
Specialty chemicals manufacturing
Potent compound processing (HPAPIs)
Catalyst filtration and drying
Agrochemical intermediate drying
Nutraceutical powder production
Precious metal recovery
Battery and energy material processing
Laboratory and pilot plant applications

Products This Filter Dryer Can Be Used For

Pharmaceutical intermediates and APIs
Fine and specialty chemicals
Highly potent compounds (HPAPIs)
Catalysts and precious metals
Nutraceutical and dietary supplements
Agrochemical powders and intermediates
Battery cathode/anode materials
Nanomaterials and specialty polymers
Cosmetic powders and fillers
R&D and pilot scale process materials
