USED ROSENMUND RGFD 0.05-

🏭 Manufacturer Information

Manufacturer: De Dietrich Process Systems (Rosenmund brand)

Model: ROLAB RGFD 0.05-09

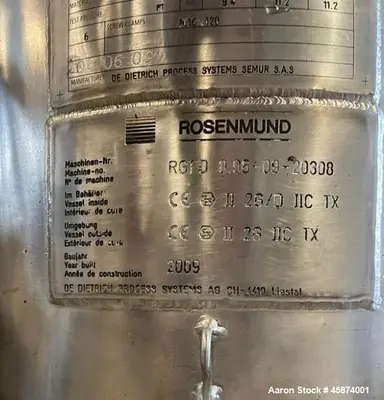

Serial Number: RGFD 0.05-09-20308

Material Contact Surface: Hastelloy C22 (2.4602)

Origin: Switzerland/Germany

Application Specialty: High-containment solid-liquid separation, drying, and pressure filtration under GMP and explosion-proof standards

📄 Product Description

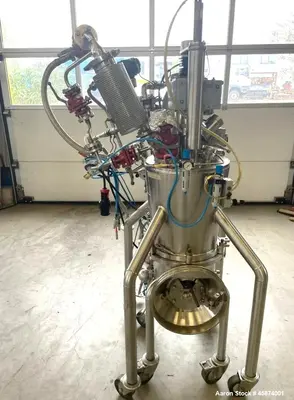

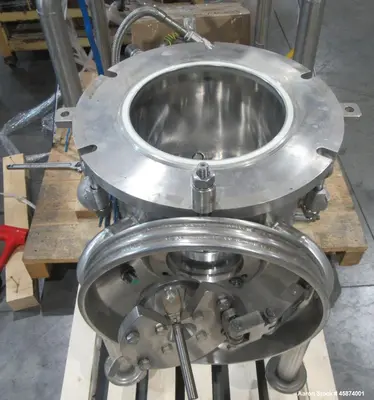

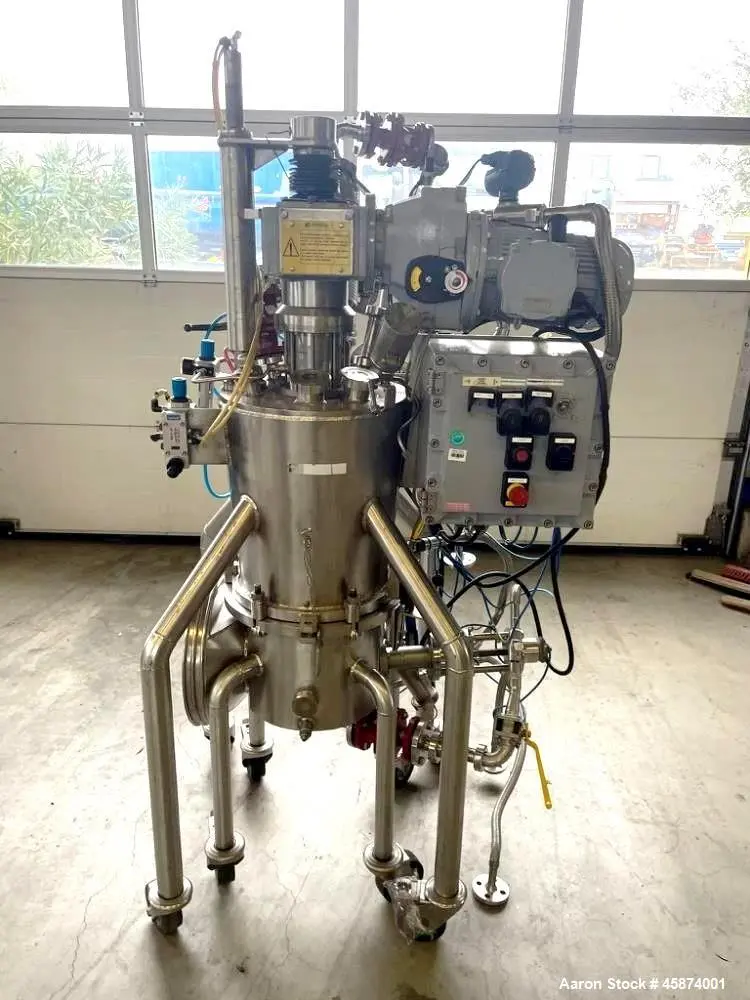

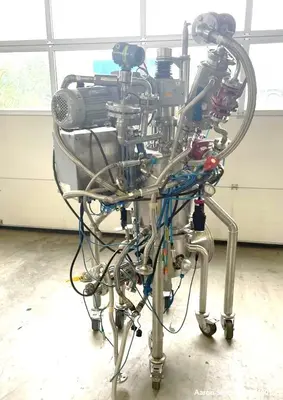

This used De Dietrich Rosenmund ROLAB RGFD 0.05-09 pilot scale filter/dryer is a high-spec, mobile solid-liquid separation unit engineered for sensitive applications in pharmaceutical, fine chemical, and specialty materials processing. Built with Hastelloy C22 (2.4602) on product-contact surfaces, it offers superior corrosion resistance. The pressure-rated vessel holds 11.37 gallons (43 liters) and is suitable for both full vacuum and up to 90 PSI (6 bar) internal and jacket pressures, with test ratings up to 141 PSI (9.4 bar) and 168 PSI (11.2 bar) respectively. Operating between -4°F and 302°F (-20°C to +150°C), it comes fully equipped with a heated agitator, side discharge, explosion-proof drive and controls, all mounted on an 8-leg mobile frame for portability. This unit is ideal for GMP-compliant small batch or R&D scale production.

⚙️ Specifications

Model: ROLAB RGFD 0.05-09

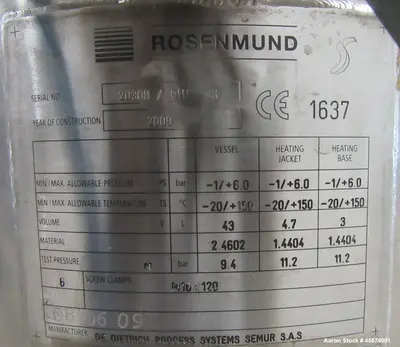

Serial Number: RGFD 0.05-09-20308

Construction (Product Contact): Hastelloy C22 / 2.4602

Total Volume: 11.37 gallons (43 liters)

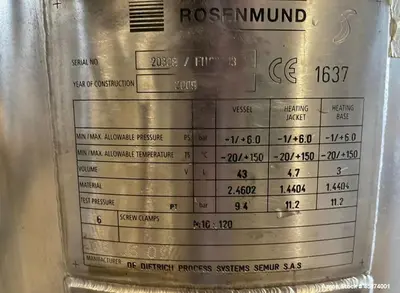

Design Pressure:

Internal: 90 PSI (6 bar)

Jacket: 90 PSI (6 bar)

Full vacuum rated

Test Pressure:

Internal: 141 PSI (9.4 bar)

Jacket: 168 PSI (11.2 bar)

Temperature Range: -4°F to +302°F (-20°C to +150°C)

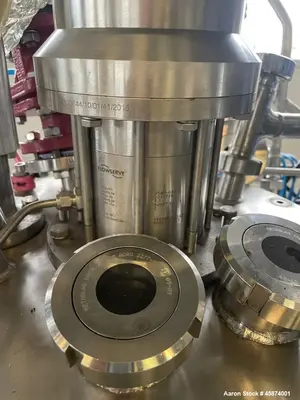

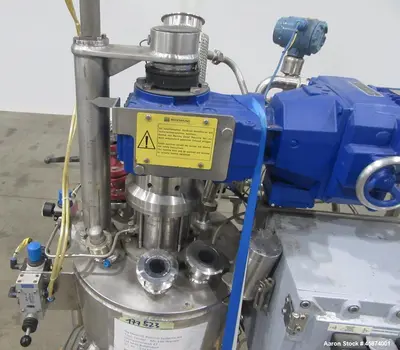

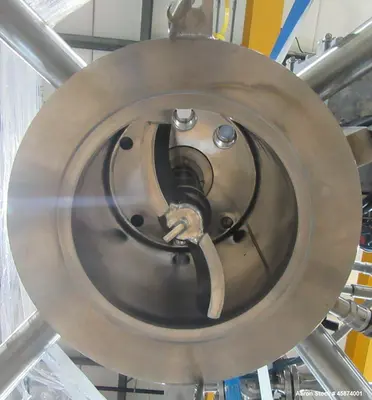

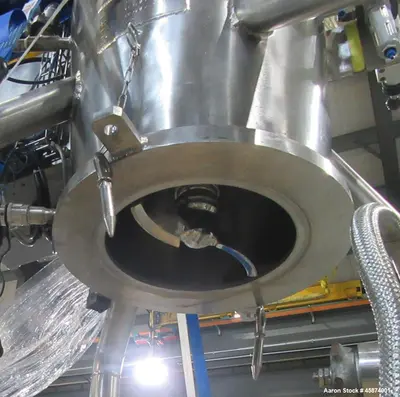

Agitator: Heated, integrated

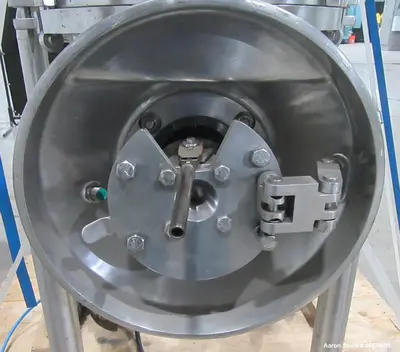

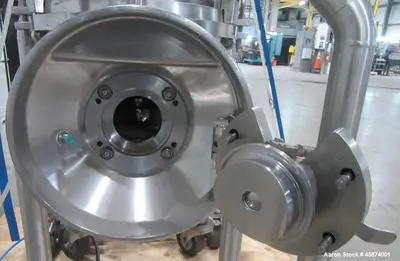

Discharge: Side outlet

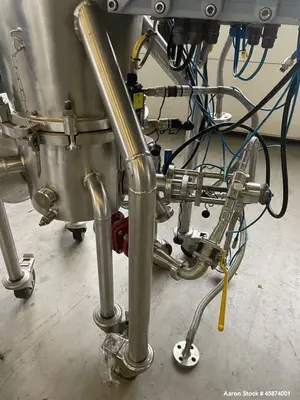

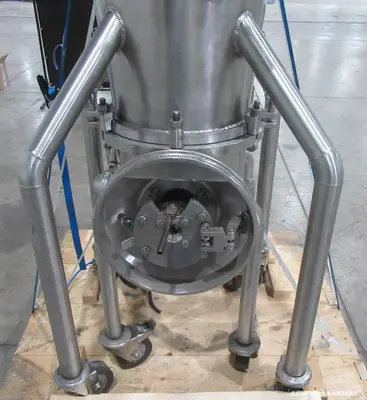

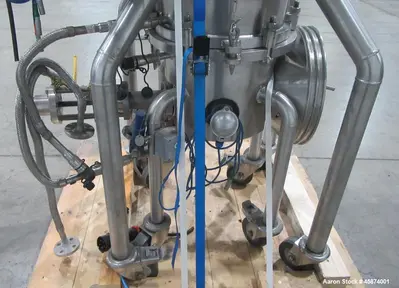

Mobility: Mounted on 8 legs, mobile on wheels

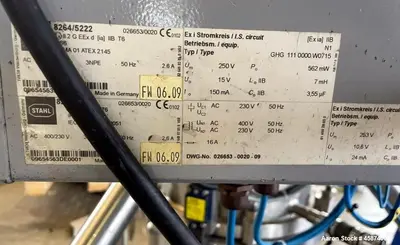

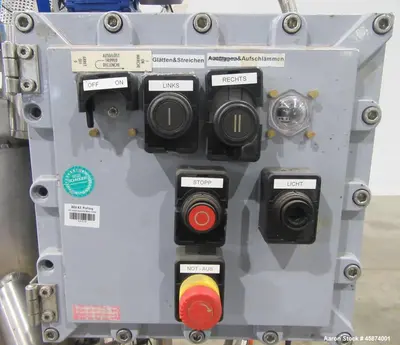

Controls: Explosion-proof rated system

Condition: Used, pilot scale

🧰 Applications
Perfect for precision filtration and drying in controlled environments:

Pharmaceutical API drying

High-purity chemical processing

Catalyst recovery and filtration

Specialty materials drying

Fine chemical synthesis

Pilot batch R&D operations

Hygienic filtration for biopharmaceuticals

📦 Products It Would Be Used For

Active pharmaceutical ingredients (APIs)

Organic or inorganic chemical slurries

Precious metal catalysts

Cytotoxic compounds

Battery material compounds

High-value chemical intermediates

Crystals or powders post-centrifuge

Biotech intermediates

Hygroscopic powders

Hazardous or sensitive substances
