USED GEA-NIRO PSD4

Manufacturer Information:

Manufacturer: GEA Niro

Model: PSD4 Spray Dryer

Year of Manufacture: 1999

Fabrication Number: 099-0013-00

Voltage: 460V, 3 Phase

System Components & Specifications:

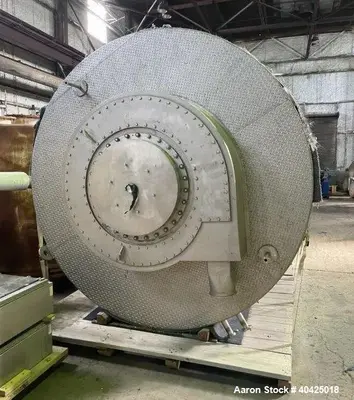

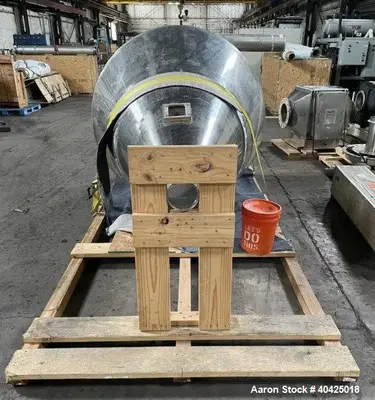

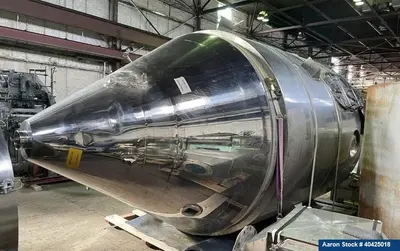

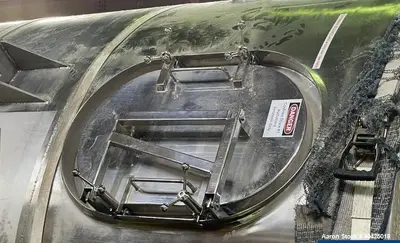

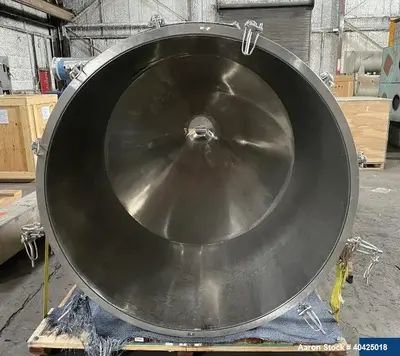

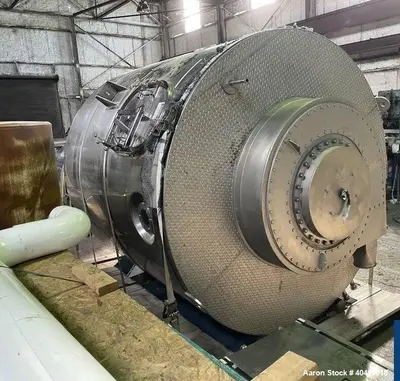

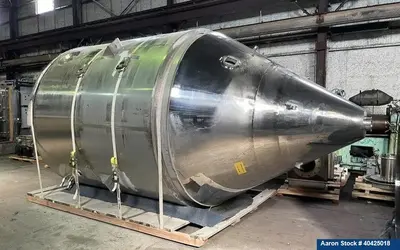

Spray Dryer Chamber:

Diameter: 8’ inner diameter

Straight Side Height: 8’6”

Cone Bottom Depth: 8’9”

Material: 316 Stainless Steel (Product Contact Surfaces)

Finish: Mirror Internal Finish

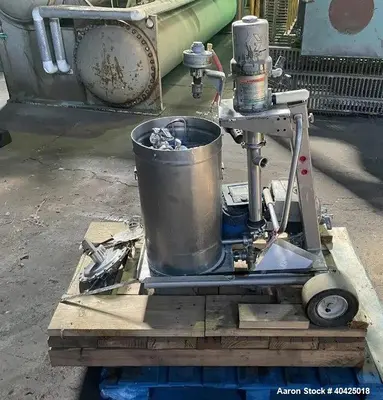

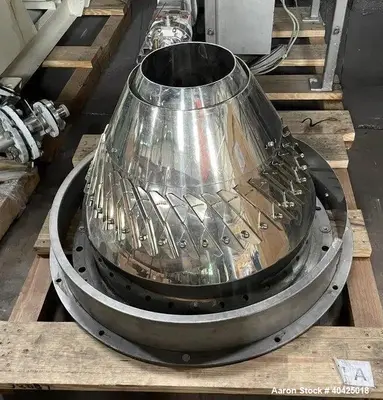

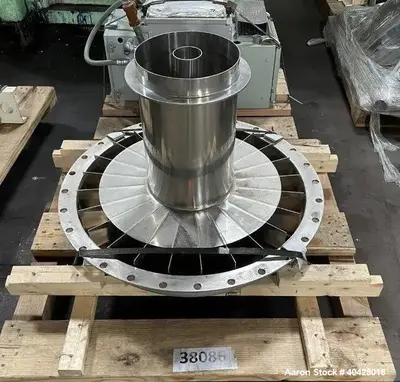

Atomization: Fluid Nozzle & Centrifugal Rotary Atomizers (Approx. 17” Diameter)

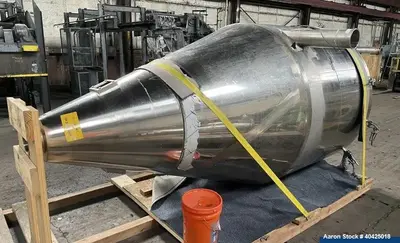

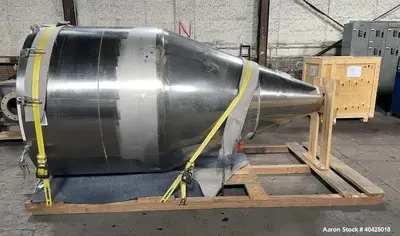

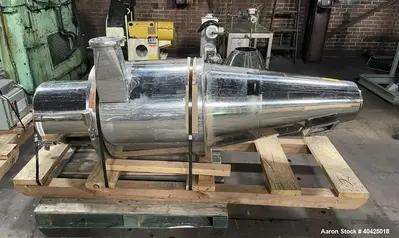

Cyclone Fines Collector:

Diameter: Approx. 6'

Material: Sanitary Stainless Steel

Dust Collector:

Material: Sanitary Stainless Steel Construction

Design: Pulse Jet, Cone Bottom

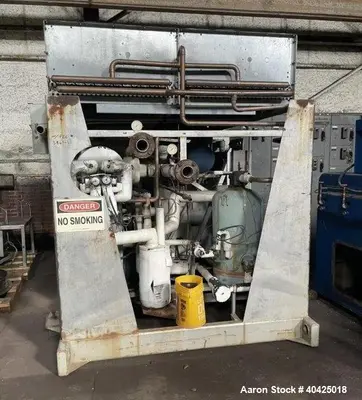

Heating System:

Heating Options: Electric or Steam

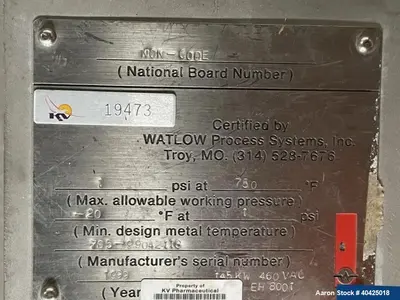

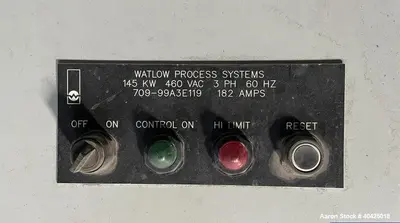

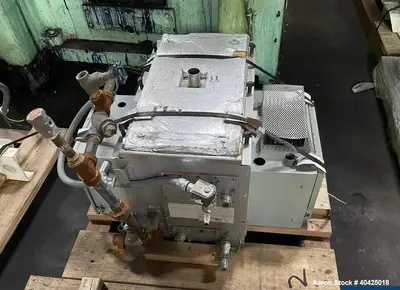

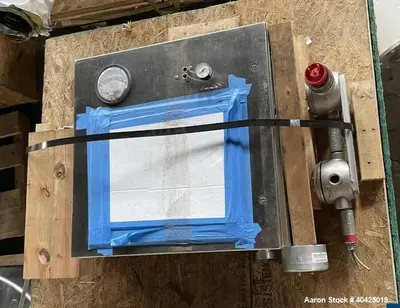

Watlow 145 kW Electric Heater with External HEPA Filter

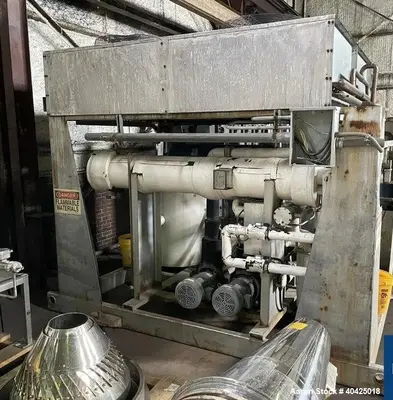

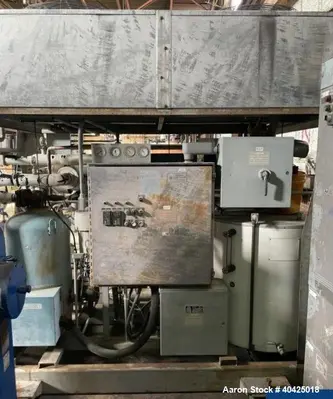

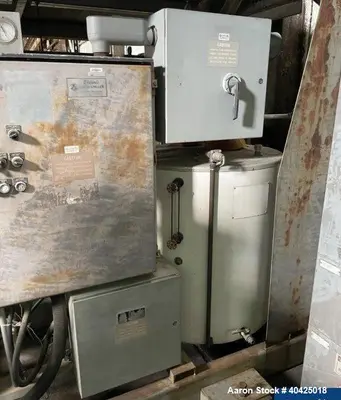

Air Handler: Steam Coil & Watlow 37.25 kW Electric Heater with Internal HEPA Filter

Process Features:

Designed for Nitrogen Purge

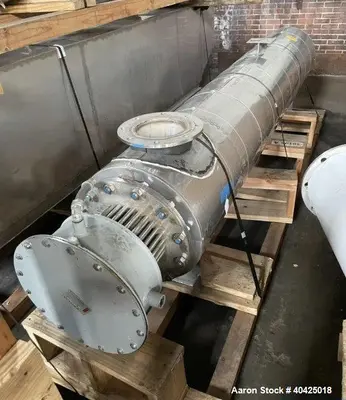

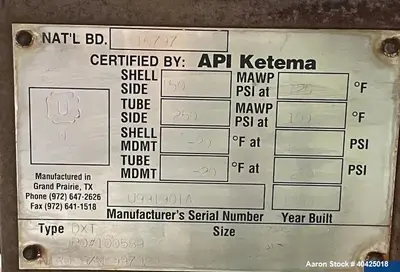

Solvent Recovery Capability (with Condenser, Less Receiver Pot)

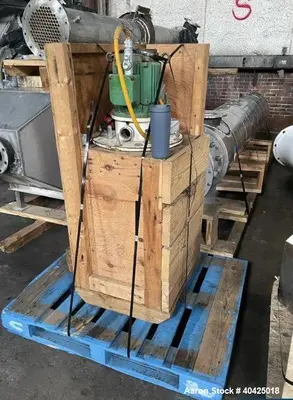

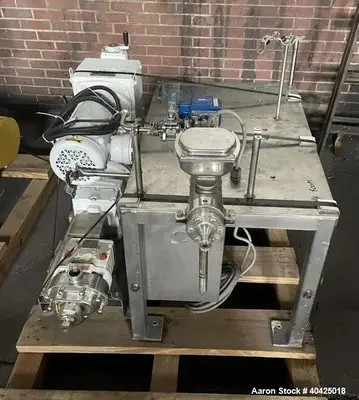

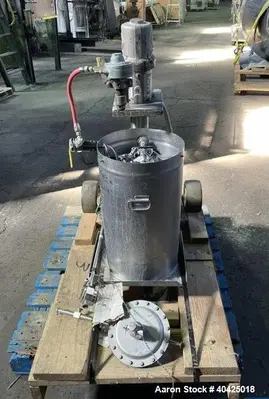

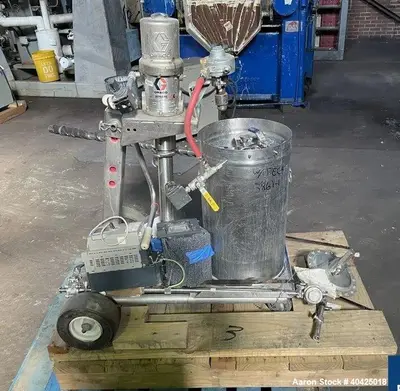

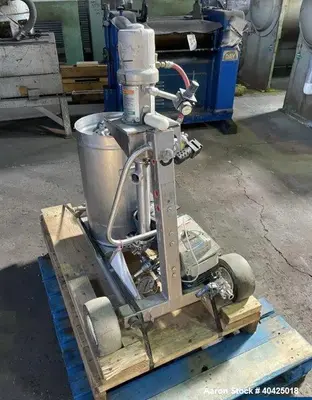

Solution Feed Pump with Micro Motion Flow Meter

Air Handling & Blowers:

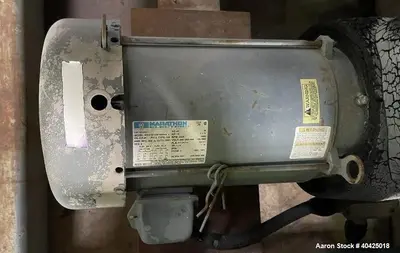

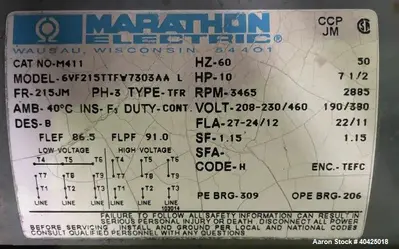

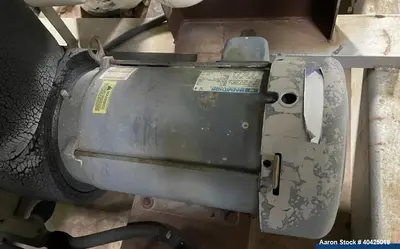

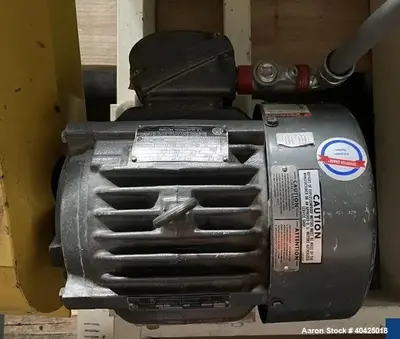

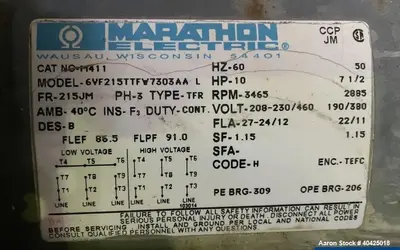

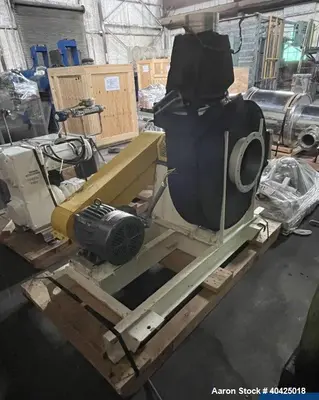

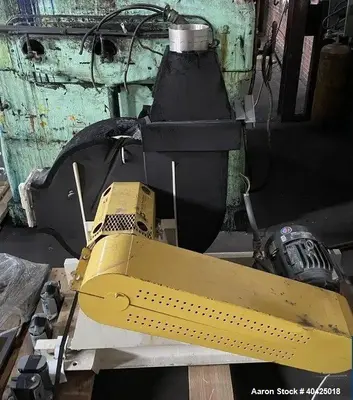

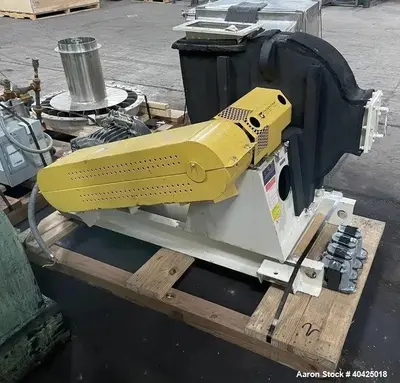

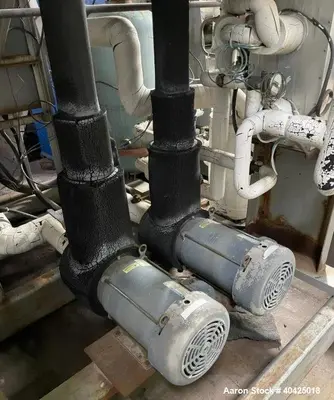

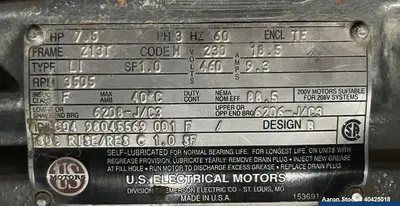

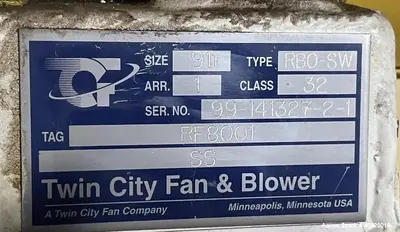

7.5 HP Process Air Supply Blower
7.5 HP Process Air Return Blower

Control System:

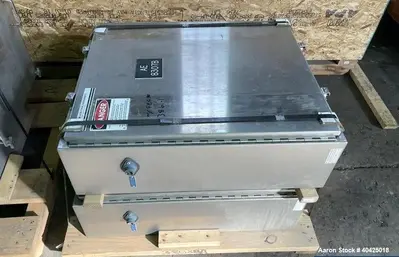

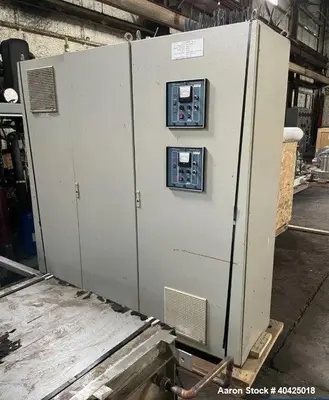

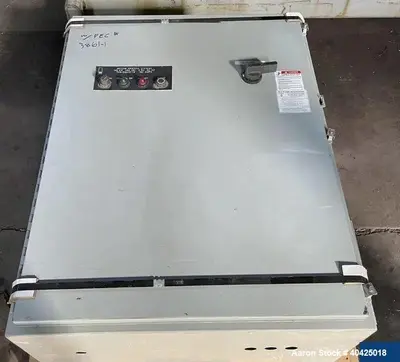

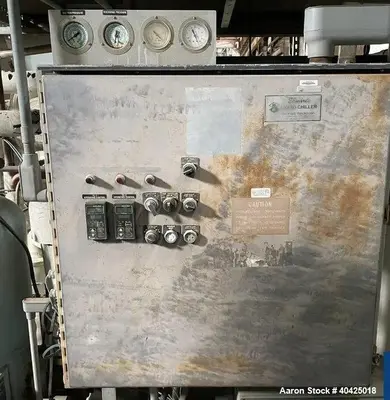

GEA Niro Control Panel & HMI Panel

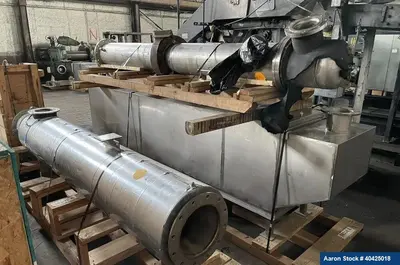

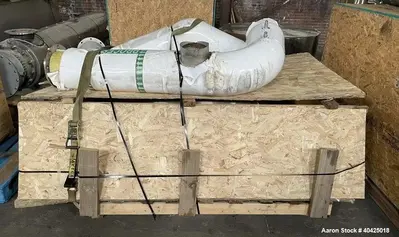

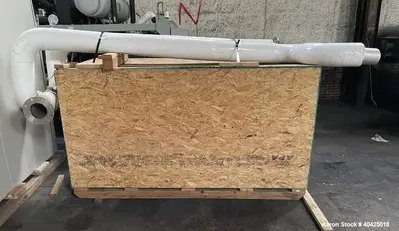

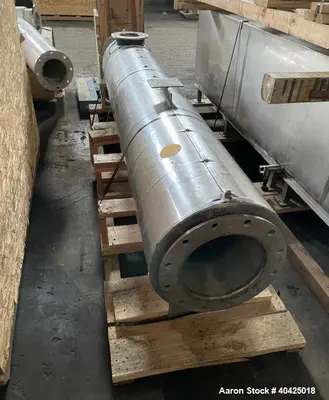

Interconnecting Pipework from Dryer to Dust Collector and Cyclone

Applications:

Food & Dairy Industry: Drying of milk powders, whey, proteins, starches, coffee, and flavors

Pharmaceutical Industry: Drying of APIs, excipients, probiotics, and pharmaceutical powders

Chemical Industry: Spray drying of catalysts, polymers, and specialty chemicals

Nutraceuticals & Supplements: Production of powdered vitamins, herbal extracts, and protein powders

Cosmetic & Personal Care: Drying of powdered ingredients for skincare and beauty products

Industrial Solvent Recovery: Spray drying with nitrogen purge for sensitive or volatile materials
