USED BOWEN BLSA

Manufacturer Information:

Brand: Bowen Engineering

Model: BLSA

Type: Laboratory Spray Dryer

Material of Construction: 316 Stainless Steel

Condition: Used

Previous Use: Nutraceutical Spray Drying

Description:
This Used Bowen Engineering BLSA Laboratory Spray Dryer is a compact, high-performance drying system built for lab and pilot-scale spray drying applications. Constructed from 316 stainless steel, this unit is designed for nutraceutical, pharmaceutical, chemical, and food ingredient applications, with a wide evaporation rate range of 15 to 80 pounds (6.8–26.3 kg) per hour.

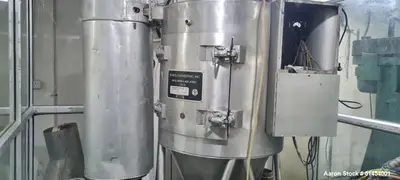

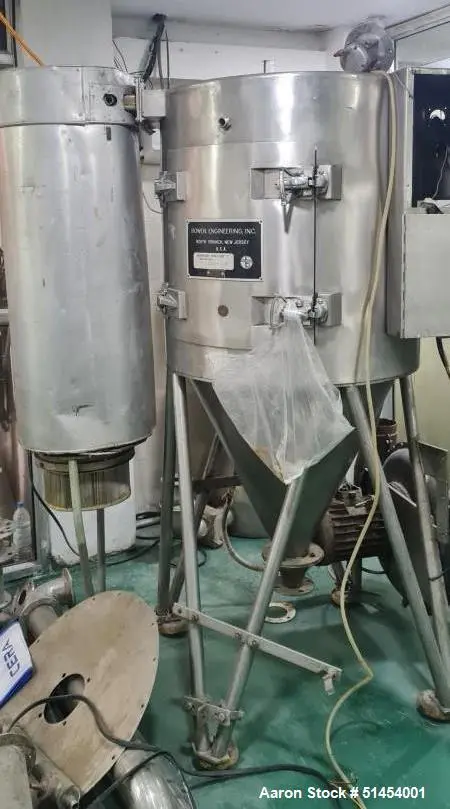

The system features a 30” diameter drying chamber with a 28” straight side and 30” coned bottom, and includes an integrated atomizer, digital control panel, and is mounted on stainless steel legs. It also comes with a cyclone separator, product collection jar, gas heater, blower, piping, and additional infrastructure for a complete turnkey solution.

Specifications:

Model: BLSA

Manufacturer: Bowen Engineering

Chamber Dimensions:

Diameter: 30” (770 mm)

Straight Side: 28” (720 mm)

Coned Bottom: 30” (770 mm)

Material: 316 Stainless Steel

Evaporation Rate: 15–80 lb/hr (6.8–26.3 kg/hr)

Air Requirements: 100 psi (6.66 bar)

Max Inlet Temperature: Up to 1000°F (537.77°C)

Access: Side access door

Controls: Digital control panel (mounted)

Mounting: Stainless steel legs

Included Components:

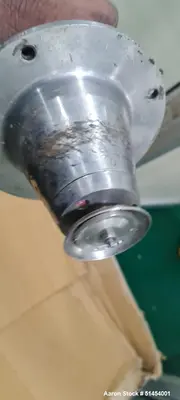

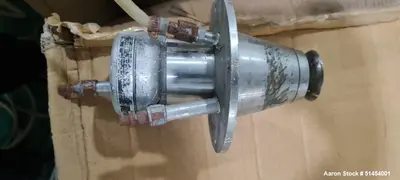

Atomizer

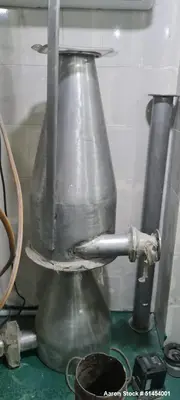

Cyclone separator

Product collection jar

Gas heater

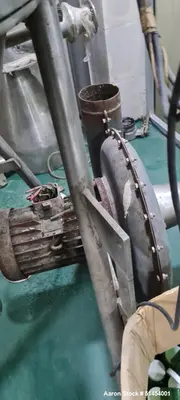

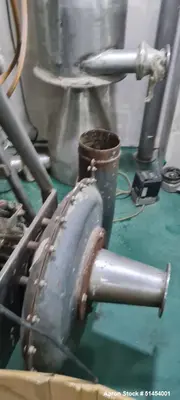

Blower

Piping and infrastructure

Condition: Used – Clean, operational condition

Previous Use: Nutraceutical drying

Features:

Precision lab-scale spray dryer with broad evaporation range

Constructed from 316 stainless steel for sanitary and corrosion-resistant performance

Includes complete atomization and air handling system

Side access door for inspection and maintenance

High inlet air temperature capacity up to 1000°F for rapid moisture removal

Mounted digital control panel for programmable, automated operation

Fully mounted system with cyclone and product recovery infrastructure

Suitable for pilot production, formulation development, or R&D trials

Applications:

Nutraceutical and dietary supplement powders

Food ingredient encapsulation and drying

Pharmaceutical product development

Specialty chemical and polymer drying

Herbal and botanical extract drying

Flavor and fragrance microencapsulation

Protein and peptide spray drying

Academic or pilot-scale product trials

What Might This Be Used For?

Producing spray-dried powders from liquid nutraceutical or food solutions

Pilot-scale production of new formulations for pharmaceuticals or supplements

Replacing or supplementing existing lab-scale spray drying equipment

Conducting product development, feasibility testing, or scale-up validation

Drying temperature-sensitive compounds in controlled R&D environments

Creating high-purity powder forms of bioactive or heat-sensitive ingredients

Supporting batch testing for custom contract manufacturing

Integrating into a small-scale GMP or cleanroom environment for powder processing
