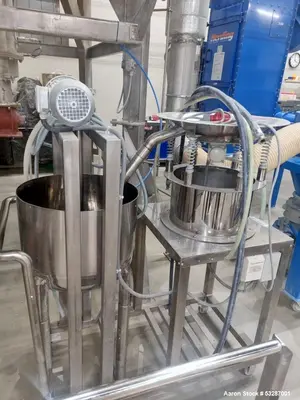

USED APV 3PSBD 58

Manufacturer Information

Brand: APV

Model: 3PSBD 58

Construction: 316 Stainless Steel

Production Rate: 35 to 120 kg/h (depending on nozzle & conditions)

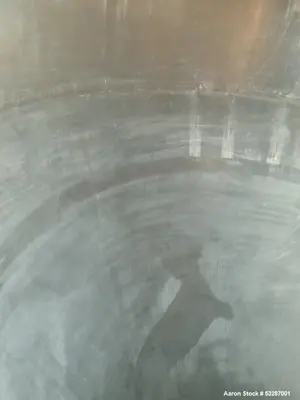

Drying Chamber Volume: Approx. 21.73 m³

Description

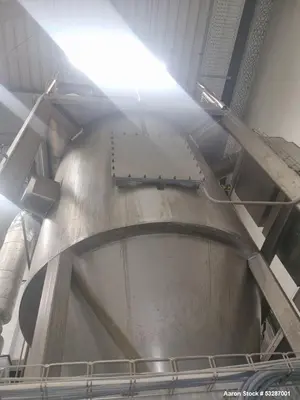

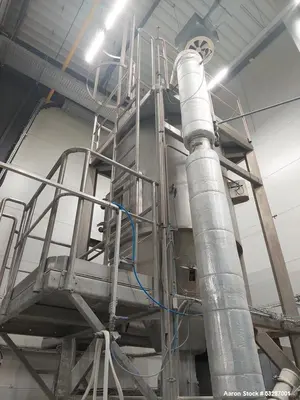

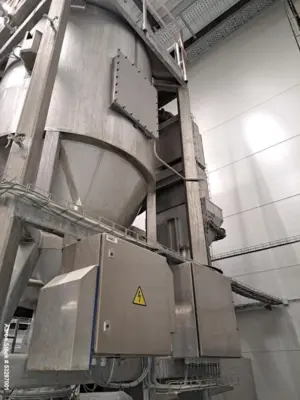

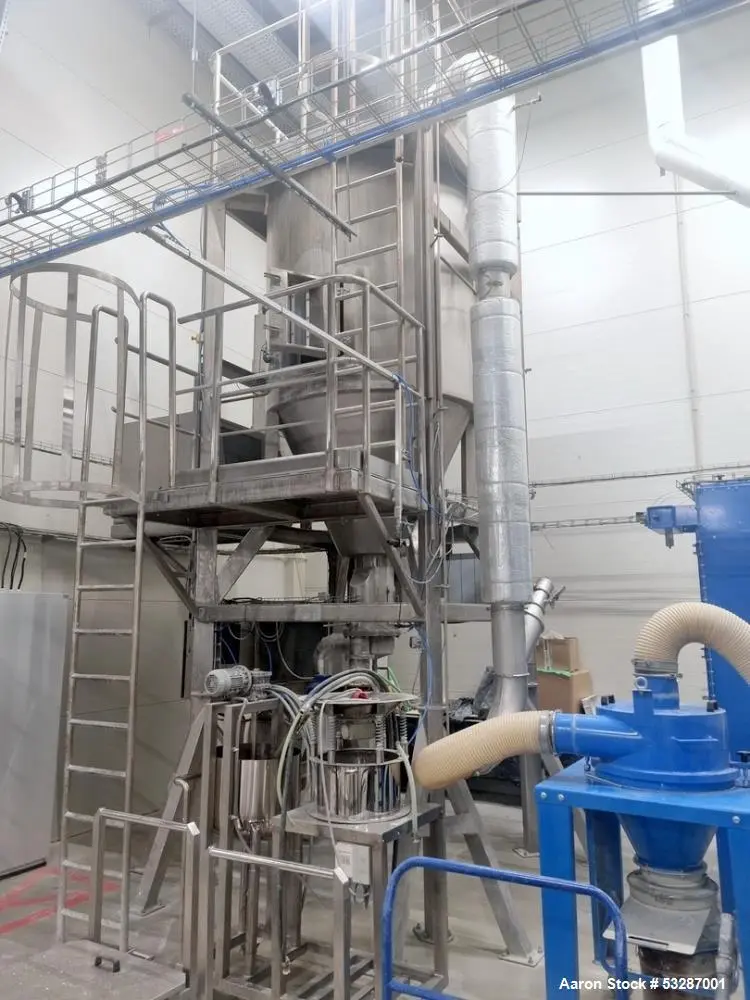

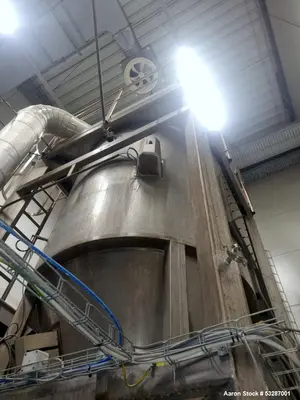

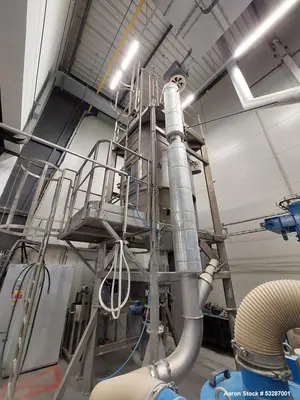

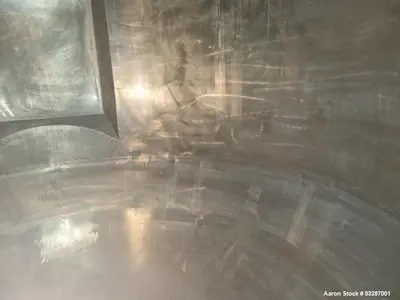

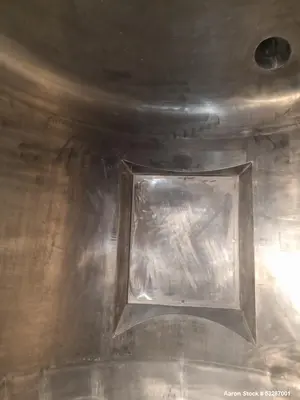

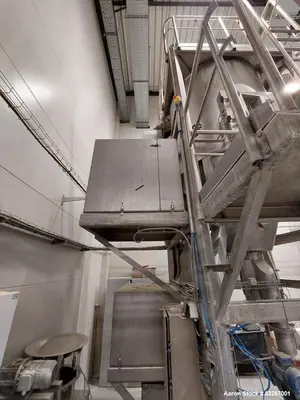

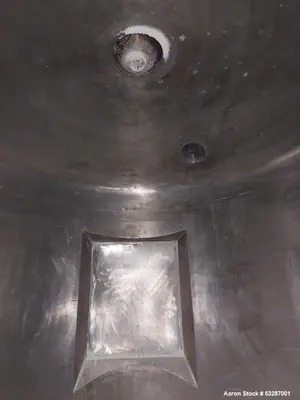

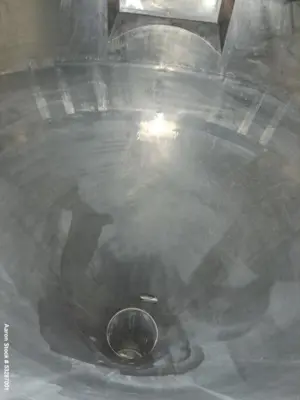

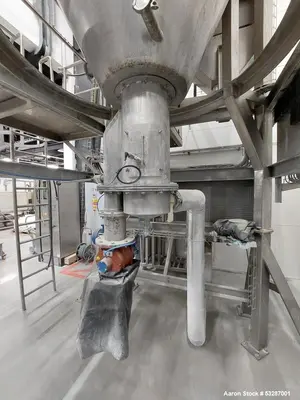

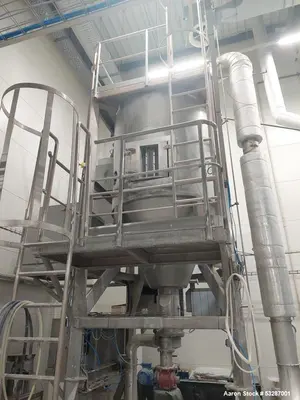

The APV Model 3PSBD 58 Spray Dryer is a high-performance industrial spray dryer built from 316 stainless steel, designed for a wide range of powder production applications. The unit has a 21.73 m³ drying chamber and can achieve a powder production rate of 35 to 120 kg/h, depending on the nozzles and operating conditions.

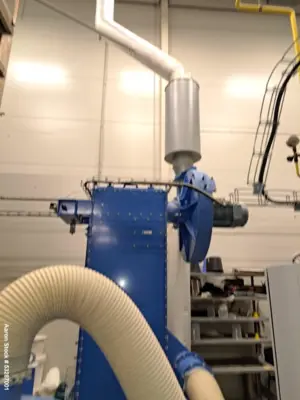

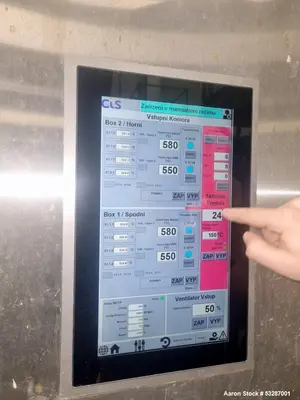

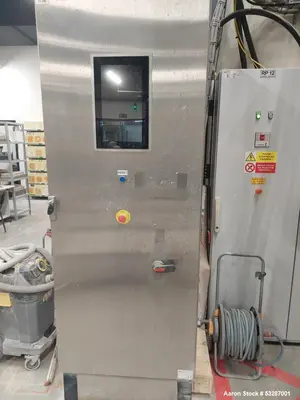

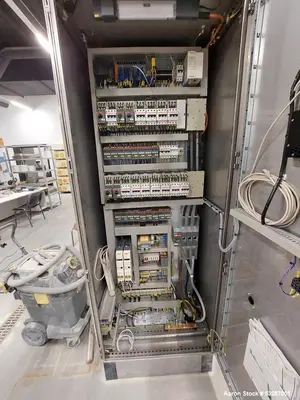

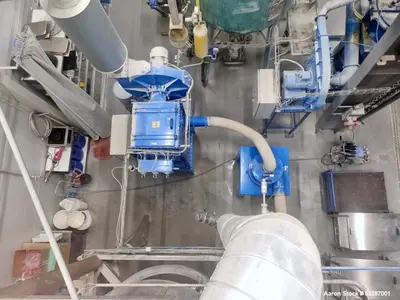

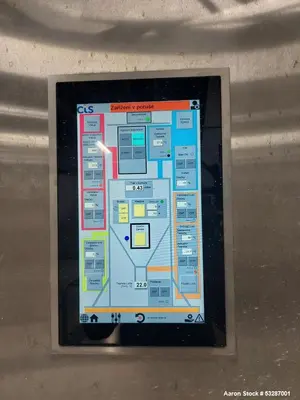

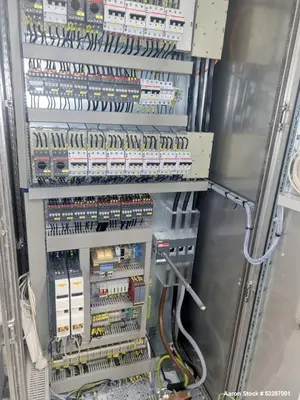

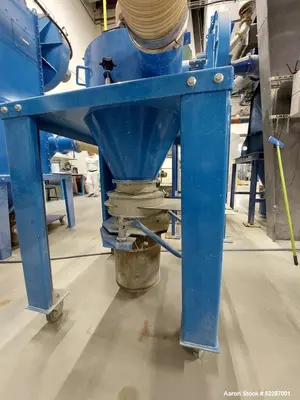

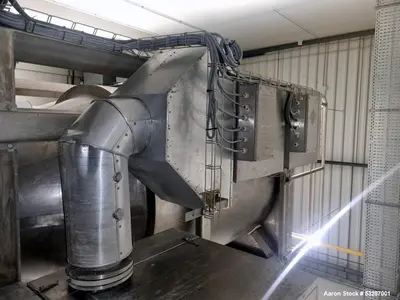

The system supports inlet air temperatures up to 600°C (commonly operated at 420°C) and a maximum outlet temperature of 140°C, allowing for flexibility in processing heat-sensitive and complex materials. Included with the dryer are heating elements, a Herding dust collector, cyclone separator, and blower, along with full controls.
The installed system has overall dimensions of 4200 x 2250 x 2300 mm (L x W x H) with a gross weight of 1880 kg and a net weight of 1580 kg. It is ideal for industries requiring precise drying control, such as pharmaceuticals, chemicals, food ingredients, and specialty powders.
Specifications

Model: 3PSBD 58

Construction: 316 Stainless Steel

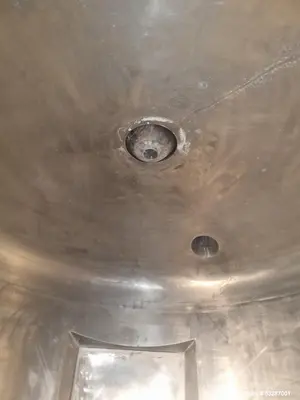

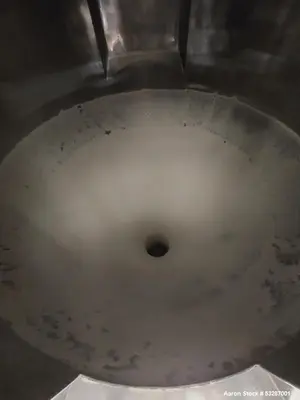

Drying Chamber Volume: Approx. 21.73 m³

Powder Production Rate: 35 – 120 kg/h

Inlet Temperature Range: 0°C to 600°C (commonly used max. 420°C)

Outlet Temperature: Max. 140°C

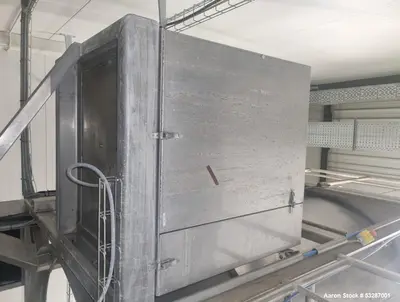

Heating Elements: Included

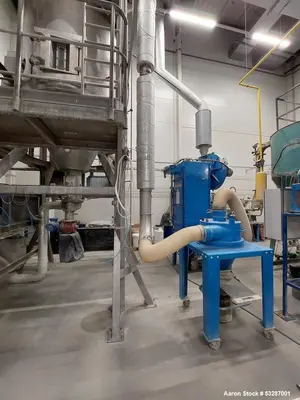

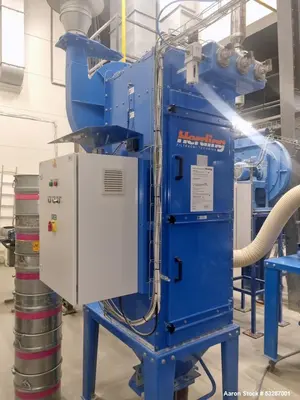

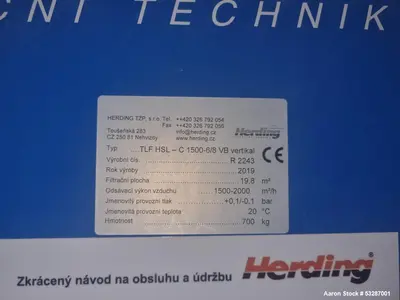

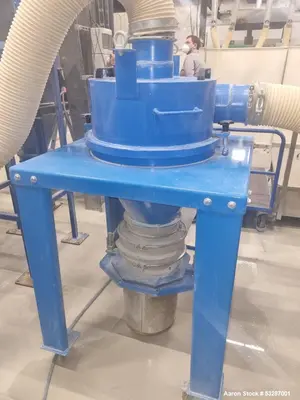

Dust Collection: Herding dust collector and cyclone

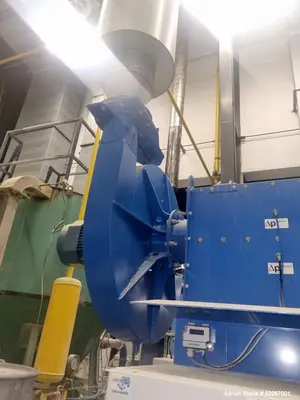

Blower: Included

Dimensions: 4200 x 2250 x 2300 mm (L x W x H)

Gross Weight: 1880 kg

Net Weight: 1580 kg

Applications

Pharmaceutical powder drying
Food and dairy ingredient processing
Nutraceutical and health supplement powders
Specialty chemicals
Flavorings and colorants
Protein concentrates and extracts

Compatible Products & Uses

Milk and dairy powders
Pharmaceutical active ingredients
Nutraceutical formulations
Plant extracts and botanical powders
Starches, gums, and food additives
