USED PAUL O ABBE RCVD-1.1

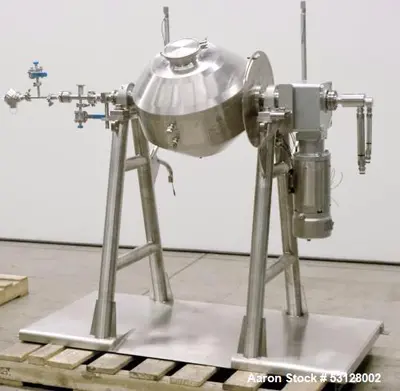

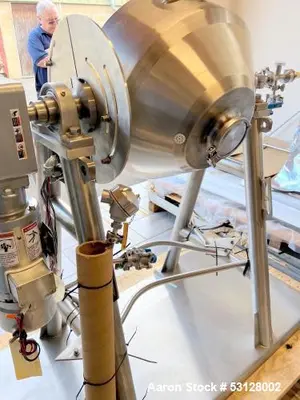

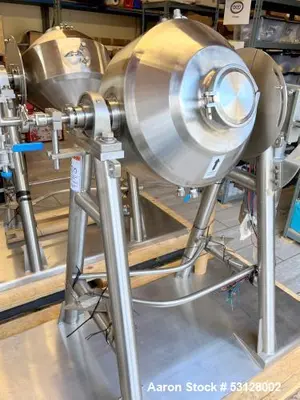

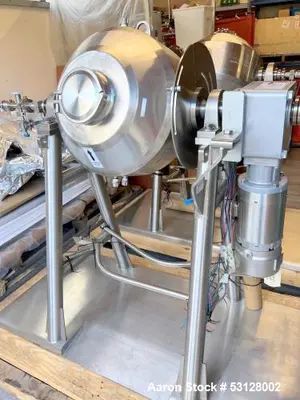

Unused- Paul O. Abbe (Certified by DCI Inc.) Sanitary Rota-Cone Vacuum Dryer, Model RCVD 1.1, 316L Stainless Steel. Working capacity. 1.7 Cubic Foot, Total Capacity (12 Gallon). Type 316L Stainless Steel Construction. 18" Inside Diameter Shell that is Electropolished. Sanitary 6" Inlet with Gasketed Cover and 3" Sanitary Outlet, No Valve. Internal Rated 35 PSI/Full Vacuum @ 300 Degrees F. MDMT is -20 Degrees F @ 35 PSI/Full Vacuum. Type 304 Stainless Steel Jacket rated 45 PSI/Full Vacuum @ 300 Degrees F. MDMT is -20 Degrees F @ 45 PSI/Full Vacuum. Jacket Volume is 2-gallon capacity. Vessel is Insulated with 1" Chloride Free Insulation with 316L SS Shroud. National Board, ASME & U Stamped. Includes Stainless Steel Hp TEFC Motor, 400 Volt, 3/50. CE Certified. Hollow Bore Gear Motor. Approx. 8 RPM Output Speed, mounted through Aluminum Frame Gear Reducer at 188.5/1 Ratio. 304 Stainless Steel Tubular Legs and Base. Includes Internal Sanitary Vacuum Line, Gas Purge and RTD Probe. Stainless Steel Rotary Unions. Includes Brake Motor with Inverter, and Positioning Disc. Does Not Include Control Panel. Drawings and Manual are available. Serial Number JS7845A, Built in 2020. Built for a Pharmaceutical Company in the UK and it was NEVER USED. Still in storage in the UK. Ready for Shipment. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer Information

Brand: Paul O. Abbe (Certified by DCI Inc.)

Year Built: 2020

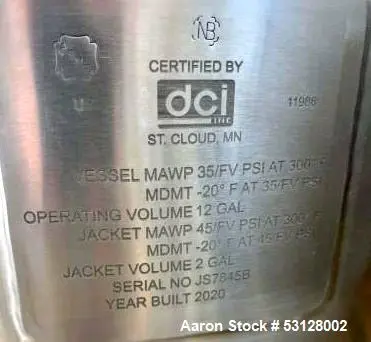

Certification: National Board, ASME & U Stamped, CE Certified

Condition: Unused – Still in Storage in the UK, Ready for Shipment

Manufacturing Data & Specifications

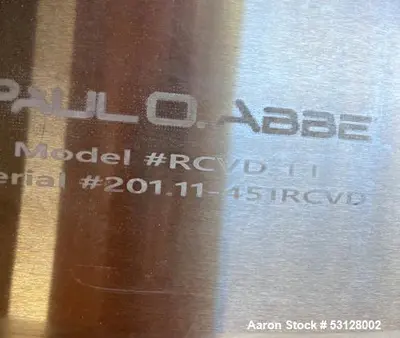

Model: RCVD 1.1

Material: 316L Stainless Steel Construction

Working Capacity: 1.7 Cubic Foot (12-Gallon Total Capacity)

Shell Interior: 18” Inside Diameter, Electropolished for Sanitary Applications

Inlet & Outlet:

6” Sanitary Inlet with Gasketed Cover
3” Sanitary Outlet (No Valve)

Internal Pressure Ratings:

35 PSI / Full Vacuum @ 300°F
MDMT: -20°F @ 35 PSI / Full Vacuum

Jacket (304 Stainless Steel):

Rated 45 PSI / Full Vacuum @ 300°F
MDMT: -20°F @ 45 PSI / Full Vacuum
2-Gallon Jacket Volume

Insulation:

1” Chloride-Free Insulation
316L Stainless Steel Shroud for Protection

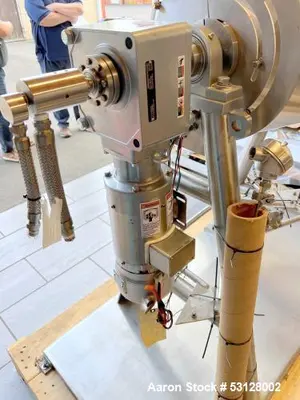

Drive System & Motor Details

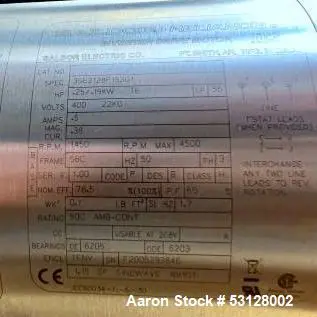

Motor: Stainless Steel HP TEFC Motor

Voltage: 400V, 3/50

Drive System: Hollow Bore Gear Motor

Gear Reducer: Aluminum Frame, 188.5/1 Ratio

Rotational Speed: 8 RPM Output

Includes:

Brake Motor with Inverter & Positioning Disc
Stainless Steel Tubular Legs & Base

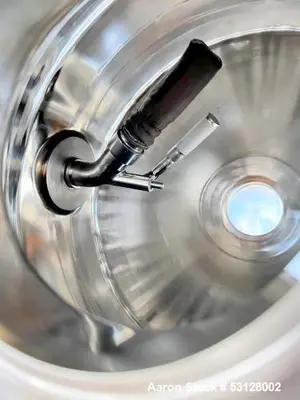

Internal Sanitary Vacuum Line
Gas Purge System
RTD Probe for Temperature Monitoring
Stainless Steel Rotary Unions

Control Panel: Not Included

Description
This unused Paul O. Abbe Sanitary Rota-Cone Vacuum Dryer is a high-performance pharmaceutical-grade drying solution designed for low-temperature drying of sensitive materials under vacuum conditions. Made of electropolished 316L stainless steel, this dryer provides a sanitary, contamination-free processing environment, making it ideal for pharmaceutical, chemical, food, and specialty material applications.
Designed for precise temperature and pressure control, the Rota-Cone Vacuum Dryer effectively removes moisture without damaging heat-sensitive products. With an internal vacuum line, gas purge, and RTD probe, it offers optimized drying performance.
Applications
This industrial vacuum dryer is ideal for industries requiring precision drying under controlled conditions, including:

Pharmaceuticals (API, fine chemicals, excipients)
Nutraceuticals & food ingredients
Chemical & specialty material drying
Heat-sensitive material drying
Biotech & research laboratory applications

Compatible Products & Equipment

Vacuum pumps & filtration systems
Stainless steel reactors & process vessels
Centrifuges & separators
Bulk powder handling & packaging systems
