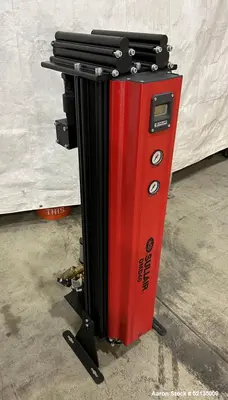

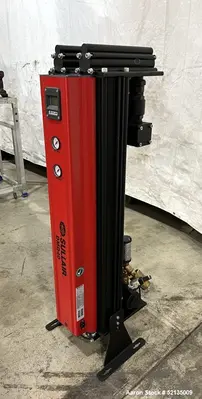

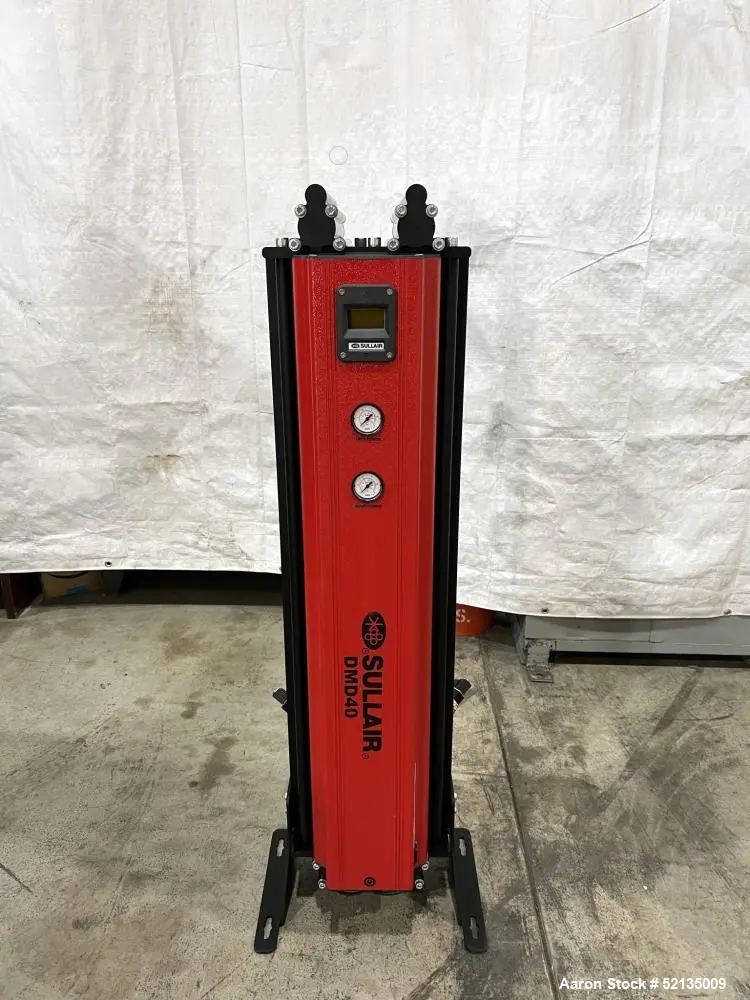

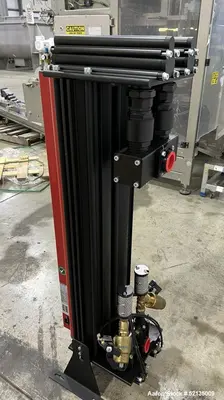

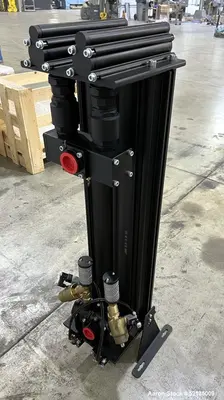

USED SULLAIR DMD-40

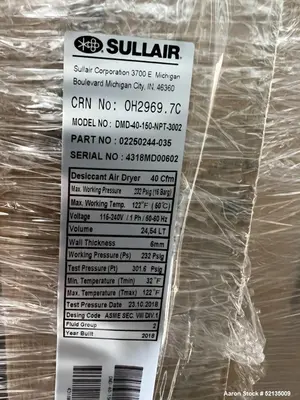

Manufacturer Information:

Brand: Sullair

Product Series: Desiccant Modular Dryer

Model: DMD-40

Part Number: 02250244-035

Description:
The Sullair Regenerative Air Dryer – Model DMD-40 is a desiccant modular dryer designed to provide dry, compressed air for industrial applications. This unit uses regenerative drying technology to remove moisture from compressed air systems, ensuring optimal performance in critical applications. With an operating pressure range of 58-200 psi (4.0-16 bar), the DMD-40 delivers high-quality air drying performance while maintaining energy efficiency.

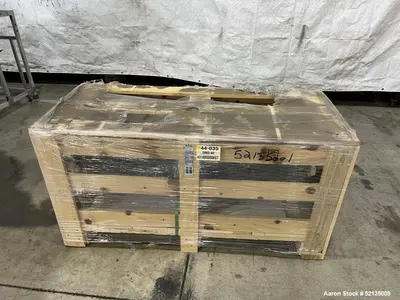

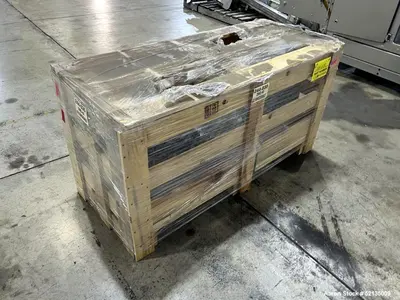

The unit is unused and still in its original box, making it an ideal purchase for those needing a reliable, high-performance air drying solution.
Specifications:
Vessel Specifications:

Diameter: 5"

Height: 40"

Thickness: 1/3"

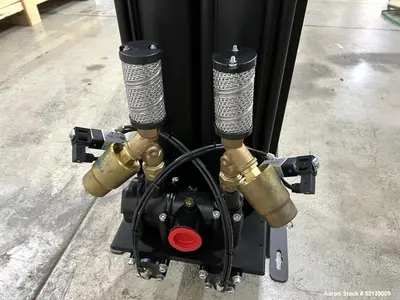

Purge Exhaust Muffler: 3/4"

Inlet-Outlet Connection: 1 1/2" NPT

Relief Valve Setting: 200 psi

Bed Velocity: 60 fpm

Max Sound Level: 85 dBA

Performance Data:

Max Ambient Temperature: 122°F (50°C)

Min Ambient Temperature: 34°F (1.6°C)

Max Inlet Temperature: 122°F (50°C)

Max Rated Air Flow at 100°F (38°C), 100 psig (7 barg): 40 CFM

Dryer Pressure Drop (Delta P): 2 psi

Min Operating Pressure: 58 psi (4.0 bar)

Max Operating Pressure: 200 psi (16 bar)

Average Purge Rate (-40°F Dew Point): 15%

Average Purge Rate (-100°F Dew Point): 20%

Regeneration & Cycle Timing:

NEMA Cycle Time: 5 minutes

Drying Time: 2.5 minutes

Regeneration Time: 2 minutes

Repressurization Time: 30 seconds

Purge Source: Dry Air

Purge Adjust: Check Valve

Electrical Data:

Standard Voltage: 80-240V / 50-60Hz

Full Load Amps: 1A

Min. Circuit Ampacity: 2A

Input Power: 0.075 kW

Unit Average Power Consumption: 0.06 kW

Dimensions & Weight:

Unit Weight: 143 lbs

Shipping Weight: 164.5 lbs

Single Vessel Desiccant Weight: 20.9 lbs

Total Desiccant Weight: 41.8 lbs

Length: 16.1 inches

Width: 17.7 inches

Height: 49.2 inches

Applications:

Compressed Air Systems in Industrial & Manufacturing
Electronics & Semiconductor Manufacturing
Food & Beverage Processing
Pharmaceutical & Medical Air Drying
Automotive Paint Booths & Coatings
Aerospace & Defense Applications
Petrochemical & Refinery Air Treatment
Laboratory & Research Facility Air Drying
HVAC & Refrigeration Air Purification
Water & Wastewater Treatment Facilities
