Used

USED ALFA LAVAL 204S-24-60

Illinois, United States
3,028Listings|366Followers
Overview
Disc Batch Centrifuges

Manufacturer Information

Brand: Alfa Laval

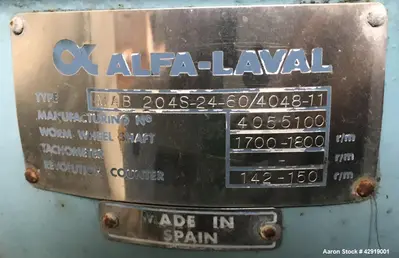

Model: MAB-204S-24-60

Condition: Used

Description

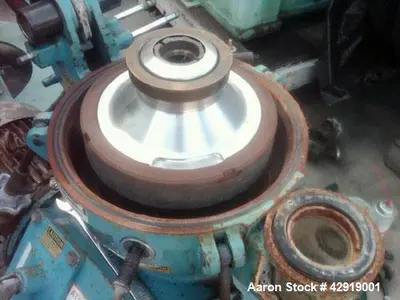

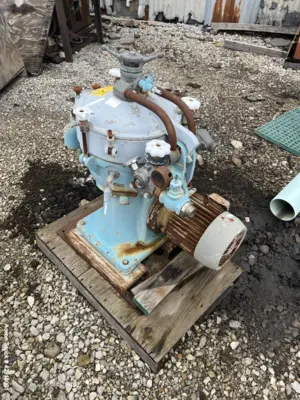

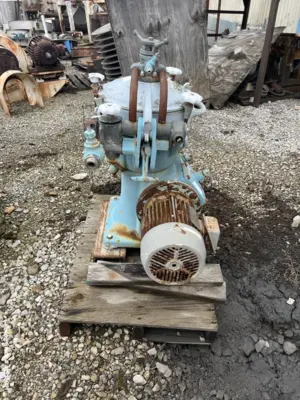

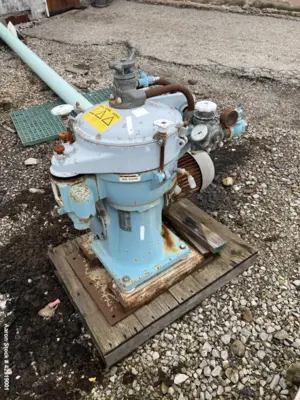

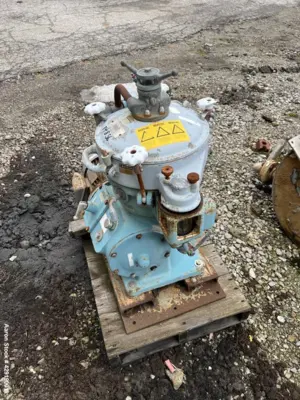

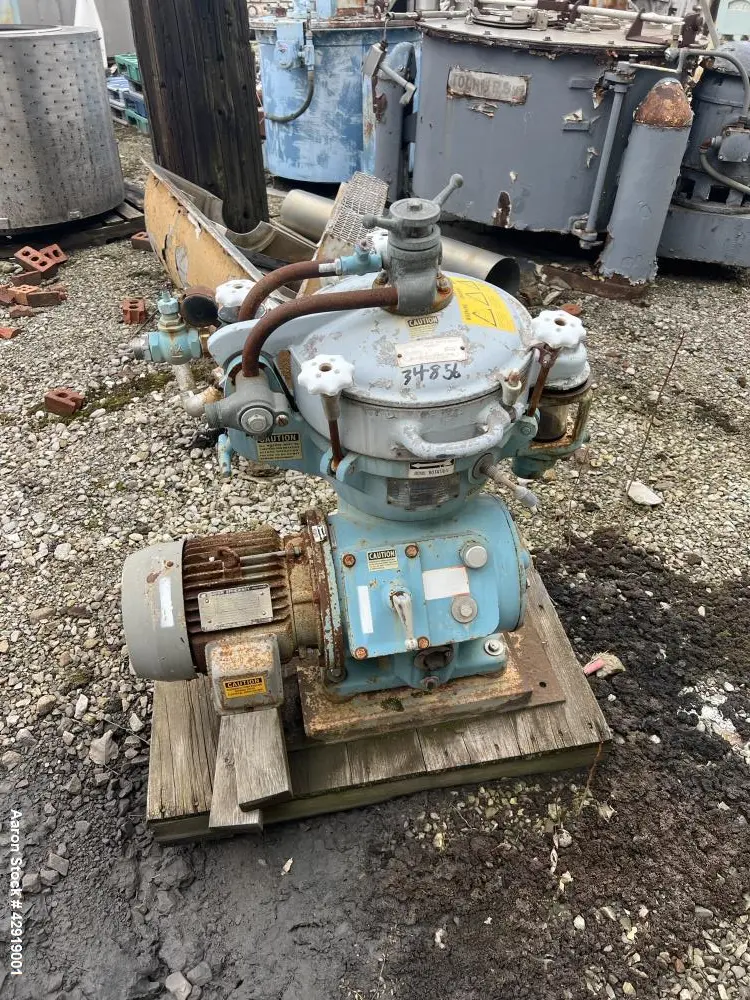

The Alfa Laval MAB-204S-24-60 Solid Bowl Disc Centrifuge is a high-speed separation system, designed for efficient solid-liquid separation in industrial and lubrication oil applications.
Featuring a stainless steel bowl and aluminum cover, this centrifuge is durable, corrosion-resistant, and lightweight. It operates at a maximum bowl speed of 8,500 RPM, with a sludge capacity of 0.4 gallons. The unit is rated at 1,140 GPH maximum flow rate on SAE10 lube oil, making it ideal for oil purification and industrial fluid recovery.

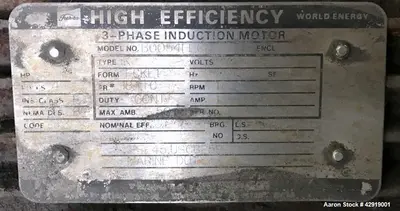

Powered by a 5 HP motor (230/460V, 3-phase), this centrifuge ensures high-efficiency operation for continuous-duty applications.
Specifications

Type: Solid Bowl Disc Centrifuge

Bowl Material: Stainless Steel

Cover Material: Aluminum

Maximum Bowl Speed: 8,500 RPM

Sludge Capacity: 0.4 Gallons

Flow Rate: 1,140 GPH Max (SAE10 Lube Oil)

Motor:

Power: 5 HP

Voltage: 230/460V, 3-Phase

Applications
This Alfa Laval MAB-204S-24-60 Centrifuge is ideal for:

Lube Oil Purification – Cleaning and recovery of used lubricating oils

Marine & Power Generation – Fuel and oil filtration for engines and turbines

Waste Oil Recovery – Industrial waste oil processing and recycling

Industrial Fluid Separation – Removal of solid contaminants from process fluids

Hydraulic & Gear Oil Filtration – Extending the lifespan of lubricants and machinery

Specs

Type: Solid Bowl Disc Centrifuge
Bowl Material: Stainless Steel
Cover Material: Aluminum
Maximum Bowl Speed: 8,500 RPM
Sludge Capacity: 0.4 Gallons
Flow Rate: 1,140 GPH Max (SAE10 Lube Oil)
Motor:

Power: 5 HP

Voltage: 230/460V, 3-Phase
