Used

USED ALFA LAVAL BTPX 205 S

Illinois, United States
3,024Listings|366Followers
Overview
Disc Automatic Centrifuges

Description

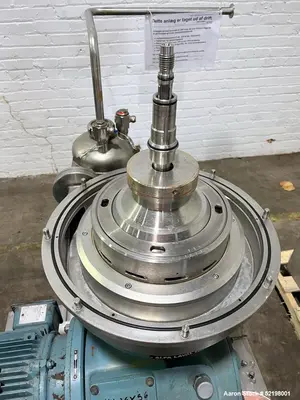

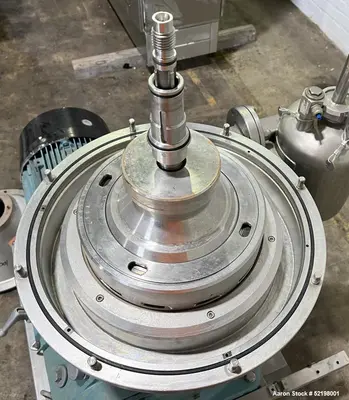

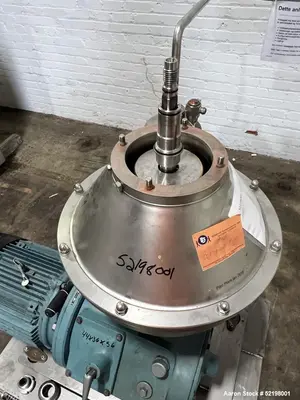

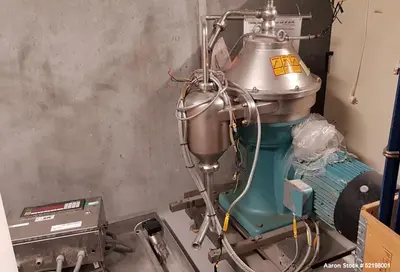

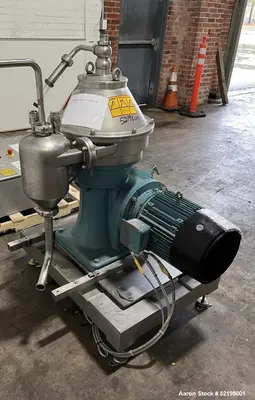

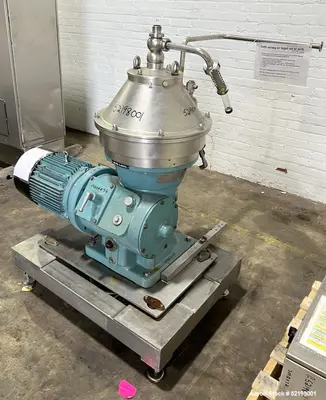

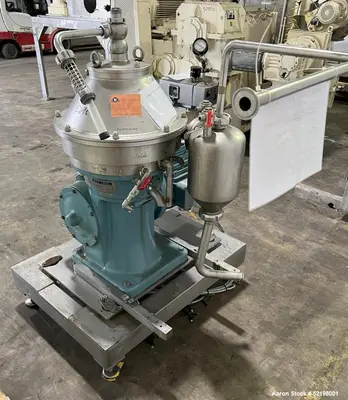

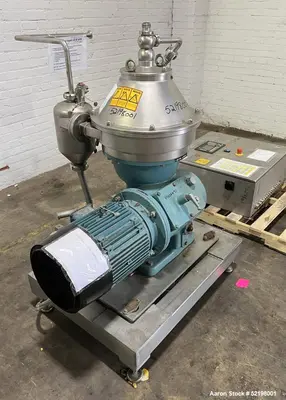

Used Alfa Laval Model BTPX 205 SGD-34CDP-50 automatic desludging disc stack centrifuge with 316 stainless steel product contact surfaces. Features an approximately 14" diameter bowl, maximum bowl speed of 9,631 RPM and maximum centrifugal force of 12,800 x G. Designed for separating suspended solids from compatible liquid process streams, with solids discharge and centripetal pump discharge for clarified liquid. Driven by a 6.5 kW AC motor rated at 2,900 RPM, 380/660 volts, 3-phase, 50 Hz. Includes a control panel equipped with a Siemens SIMATIC C7 HMI and Siemens PLC. Mounted on a stainless steel platform and previously used in a university technical research and development laboratory. Possible uses include pilot-scale clarification and cell or cell-debris separation, subject to application requirements and material compatibility. Serial number 4036735.
Product Details

Specification
Details

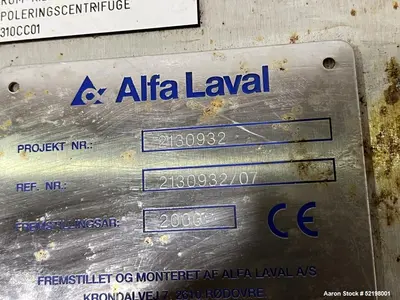

Manufacturer
Alfa Laval

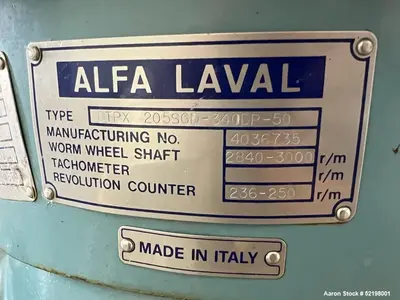

Model
BTPX 205 SGD-34CDP-50

Stock Number
52198001

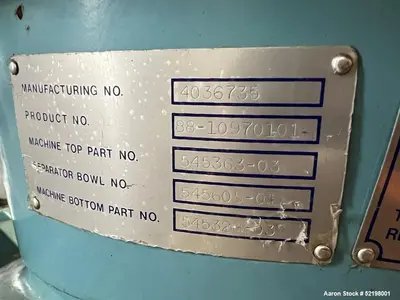

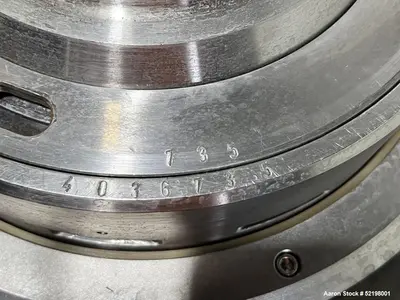

Serial Number
4036735

Equipment Type
Automatic desludging disc stack centrifuge

Separation Application
Liquid/solids

Product Contact Surfaces
316 stainless steel

Bowl Diameter
Approximately 14"

Maximum Bowl Speed
9,631 RPM

Maximum Centrifugal Force
12,800 x G

Solids Handling
Solids discharge

Clarified Liquid Discharge
Centripetal pump

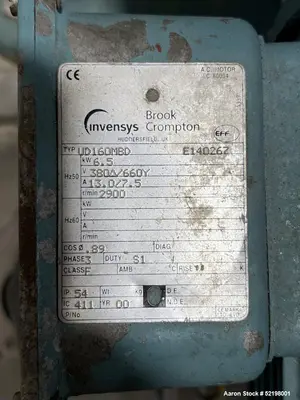

Drive Motor
6.5 kW AC

Motor Speed
2,900 RPM

Motor Electrical Rating
380/660 volts, 3-phase, 50 Hz

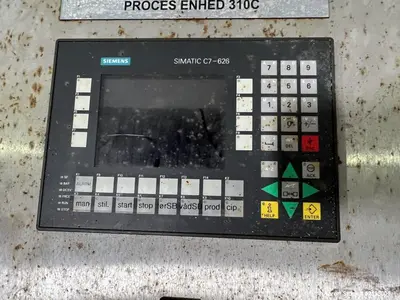

Operator Interface
Siemens SIMATIC C7 HMI

Controller
Siemens PLC

Mounting
Stainless steel platform

Previous Use
University technical research and development laboratory

Condition
Used

Potential Applications

Pilot plant liquid/solids separation studies.
Process development trials involving suspended solids removal.
Cell and cell-debris separation.
Clarification trials for compatible fermentation and cell culture process streams.

Application suitability depends on feed characteristics, separation targets, required throughput and the installed equipment configuration.
What Products Would This Be Used For?
Potential feed materials, subject to application review, include:

Fermentation broths containing cells or suspended biological solids.
Mammalian cell culture suspensions.
Process liquids containing cell debris.
Protein-containing process streams requiring removal of cells or suspended solids.
Compatible aqueous suspensions used in pilot plant and research trials.

These examples describe potential separation duties. They do not establish sterile processing capability, pharmaceutical qualification or suitability for a particular biological product.
Frequently Asked Questions

What type of separation does this centrifuge perform?
This disc stack centrifuge is intended for separating suspended solids from compatible liquid streams, with solids discharge and centripetal pump liquid discharge.

What are the maximum bowl speed and centrifugal force?
The listed maximum bowl speed is 9,631 RPM, with a maximum centrifugal force of 12,800 x G.

What is the bowl diameter?
The bowl diameter is approximately 14".

What materials contact the product?
The listed product contact surfaces are 316 stainless steel.

What electrical service does the motor require?

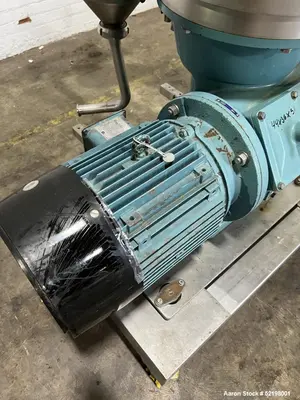

The 6.5 kW AC motor is rated at 380/660 volts, 3-phase, 50 Hz. Confirm the installed wiring and complete system utility requirements before installation.

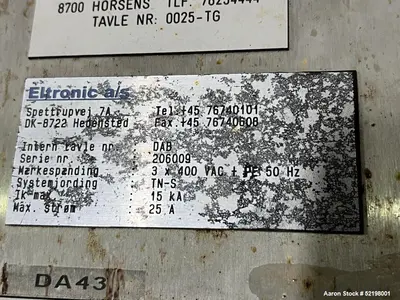

What controls are included?

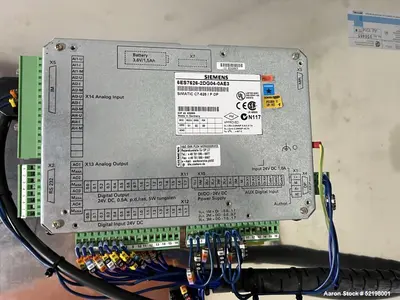

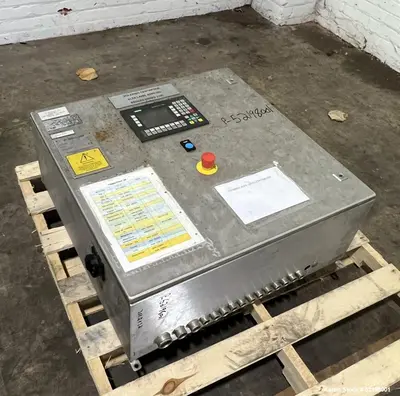

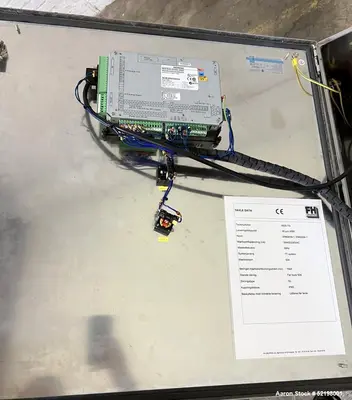

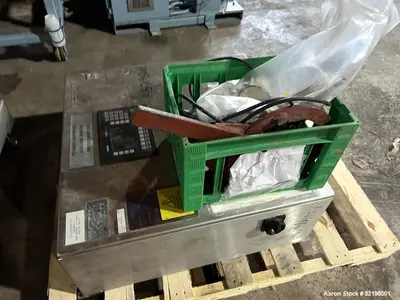

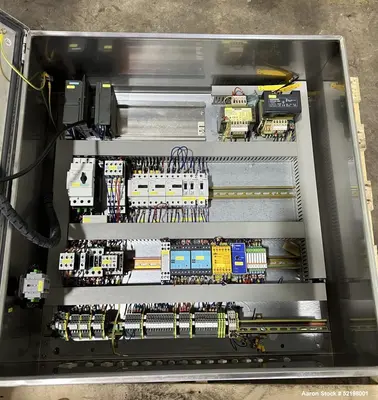

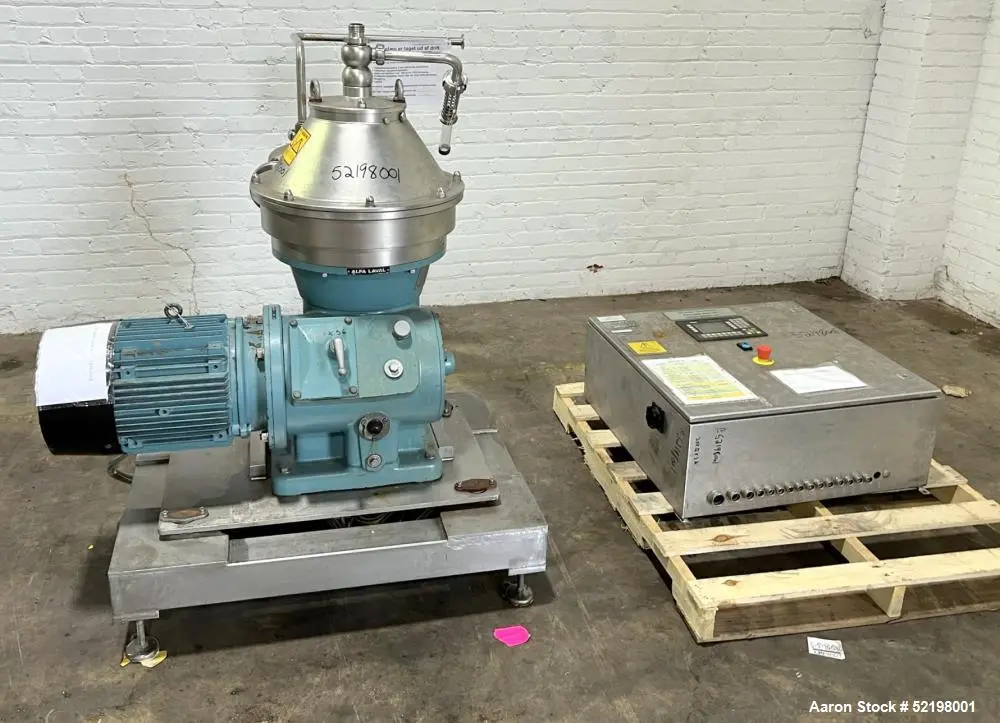

The unit includes a control panel with a Siemens SIMATIC C7 HMI and Siemens PLC.

Can this centrifuge be considered for fermentation broth or cell culture clarification?
These are potential applications, subject to review of cell characteristics, solids concentration, viscosity, temperature, throughput and required separation performance.

What processing capacity should I expect?
Actual throughput depends on the feed and separation target. Request an application review and confirmation of the installed configuration before establishing a production rate.

Where was this centrifuge previously used?
The unit was previously used in a university technical research and development laboratory.

What information is needed for shipping?
Request confirmed shipping dimensions, total shipping weight, pickup location and loading requirements for stock 52198001.

How can Aaron help evaluate this centrifuge for my process?
Contact Aaron with your feed composition, solids characteristics, process temperature, required throughput and clarification target to discuss the equipment and available documentation.
