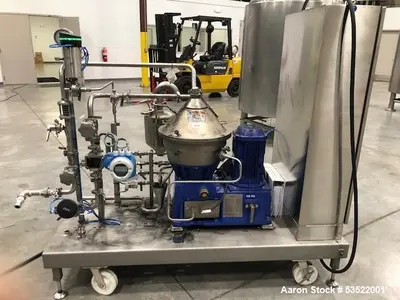

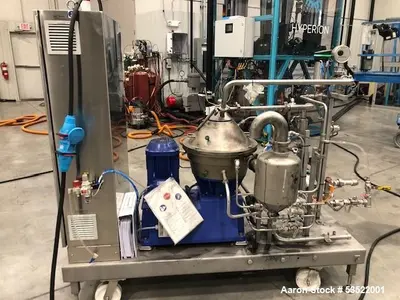

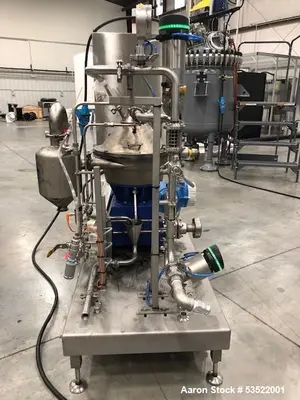

USED ALFA LAVAL LAPX 404SGP-31G/CG

🏭 Manufacturer Information

Brand: Alfa Laval

Model: LAPX 404SGP-31G/CG

Type: Disc Stack Clarifier Centrifuge

Build Year: 2021

Construction: 316 Stainless Steel (product contact areas)

Motor: 3.7 kW, 460V / 3 Phase / 60 Hz, 3600 RPM

📃 Description

The Alfa Laval LAPX 404SGP-31G/CG is a high-speed disc centrifuge clarifier, designed for precision solid-liquid separation with low product shear and high G-force efficiency. Constructed with 316 stainless steel for corrosion resistance and sanitary processing, this model is ideal for applications in biotech, pharma, food & beverage, and chemical processing.
Operating at a maximum bowl speed of 9600 RPM and generating 11,000 x G, the LAPX 404 delivers up to 4000 liters per hour (LPH) of clarified liquid throughput. With a maximum solids capacity of 33 LPH, a temperature operating range of 0–100°C, and pressurized liquid discharge, it ensures hygienic and efficient separation even in temperature-variable environments.
The unit features a low shear disc inlet design for gentle product handling and includes a sludge tank, piping, tool kit, and accessories for turnkey installation. Manufactured in 2021, this unit offers modern technology in near-new condition.

📏 Specifications

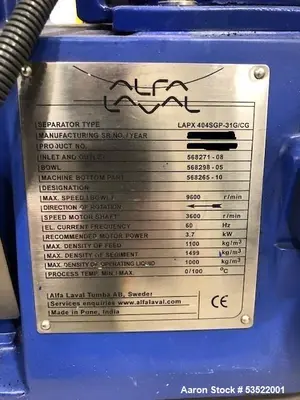

Model: LAPX 404SGP-31G/CG

Function: Clarifier (liquid/solids separation)

Construction: 316 Stainless Steel

Max Bowl Speed: 9600 RPM

Centrifugal Force: 11,000 × G

Rated Capacity: 4000 LPH

Solids Capacity: 33 LPH

Temperature Range: 0–100°C

Discharge Type: Liquid discharged under pressure

Inlet Design: Low shear disc inlet

Motor: 3.7 kW, 460V, 3 Phase, 60 Hz, 3600 RPM

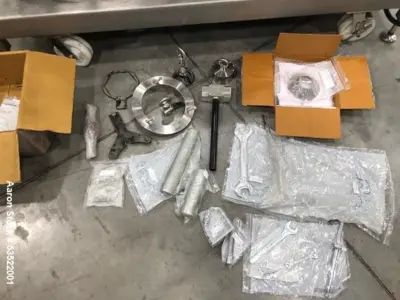

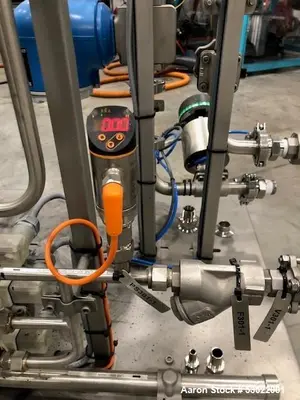

Included: Sludge tank, piping, tools

Year Built: 2021

Condition: Used (Excellent)

🛠️ Applications

Perfect for:

Biopharmaceutical fermentation clarification

Cell harvesting and protein separation

Food & beverage product polishing (juices, milk, beer)

Fine chemical and catalyst recovery

Botanical extraction filtration

Dairy cream/whey clarification

Nutraceutical product separation

Industrial process water polishing

Liquid-solid separation in laboratory or pilot scale

Temperature-sensitive bio-process streams

📦 What Products Would This Be Used For?

Bacterial cell mass

Yeast slurries

Fermentation broths

Fruit juice clarification

Herbal extract sludges

Protein isolates

Dairy cream or skim milk

Fine pigments or dyes

Beverage filtration

Low-viscosity chemical emulsions
