USED SHARPLES PM-40000

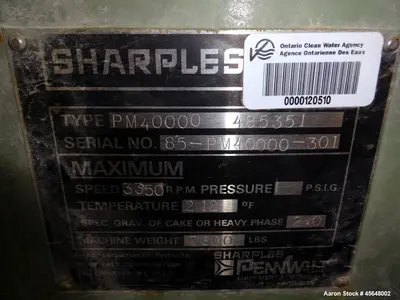

Manufacturer Information

Manufacturer: Alfa Laval / Sharples

Model: PM-40000 (Equivalent to P-4600)

Material: 316 Stainless Steel (Product Contact Areas)

Description

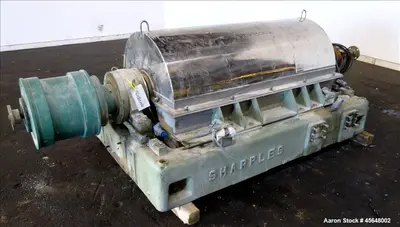

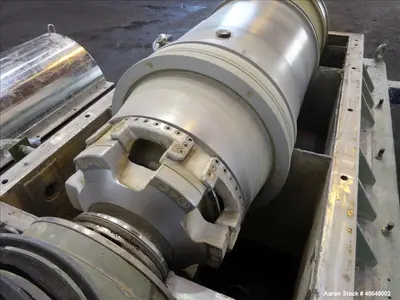

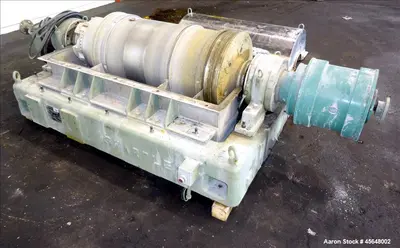

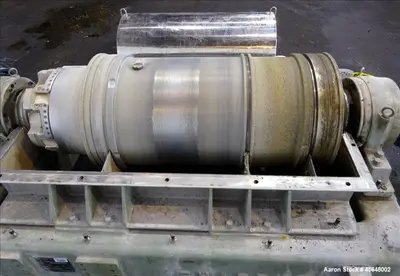

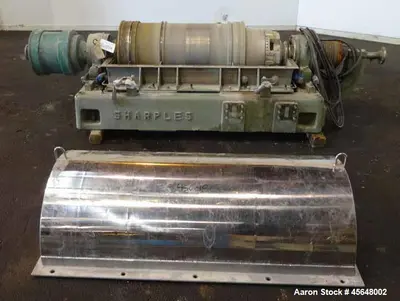

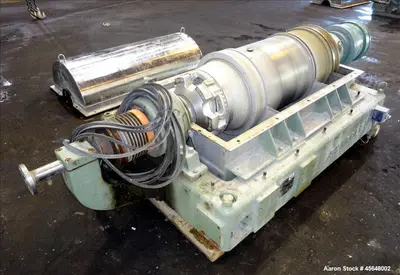

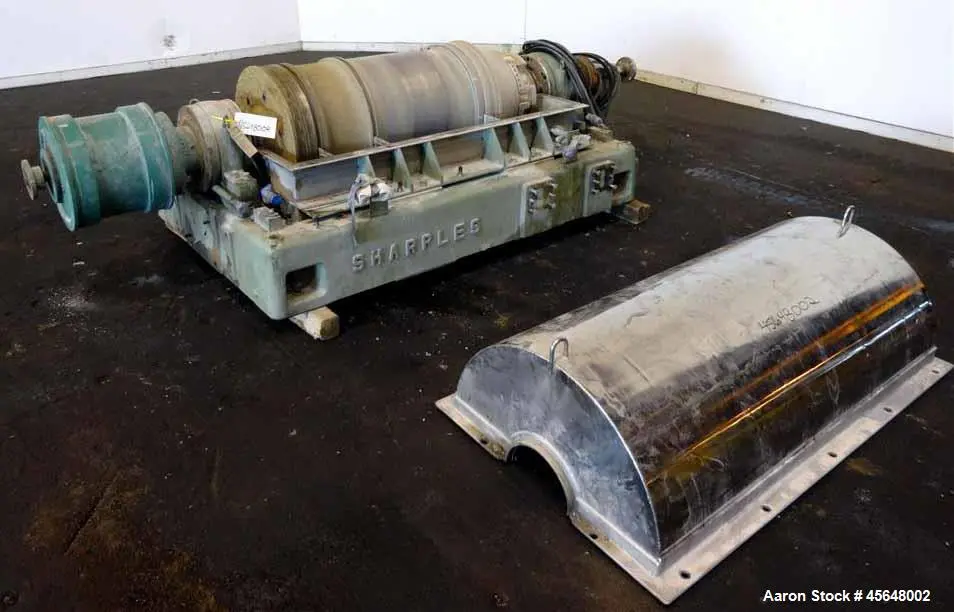

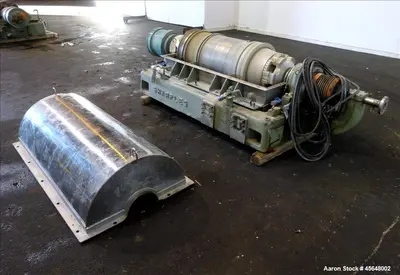

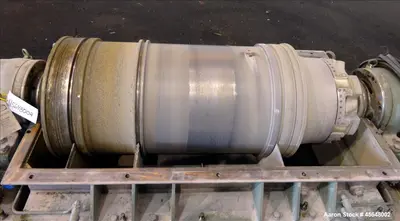

This used Alfa Laval / Sharples Model PM-40000 Super-D-Canter centrifuge is designed for high-performance separation applications in industrial processes. It features a 316 stainless steel bowl, a maximum bowl speed of 3350 RPM, and a 5.5" single lead conveyor with sintered tungsten carbide wear protection tiles for enhanced durability. The unit includes hogged-out cake discharge ports with replaceable wear liners, P90 gearbox with a 98:1 ratio, and an Eddy current back drive. The system comes fully equipped with a 60 HP drive motor (575V/3PH/60Hz), lube system, vibration isolators, safety guards, and a Danfoss electronic drive control panel.
Specifications

Bowl Speed: 3,350 RPM

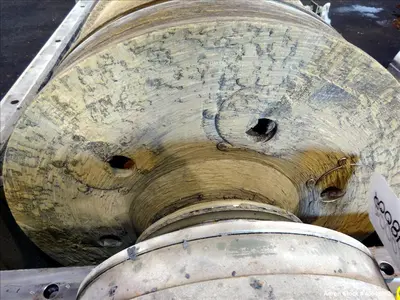

Conveyor: 5.5" single lead with sintered tungsten carbide wear protection tiles

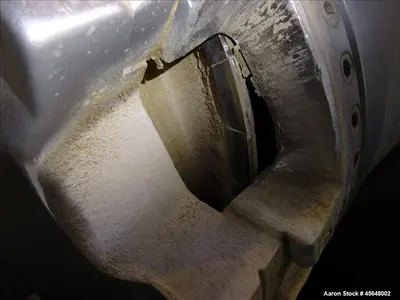

Cake Discharge Ports: Hogged-out with replaceable wear liners

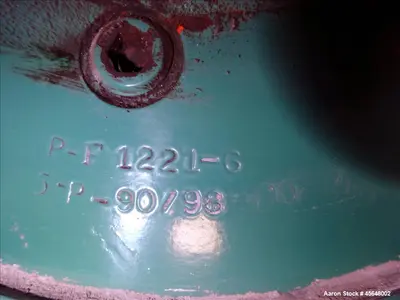

Gearbox: P90, 98:1 ratio

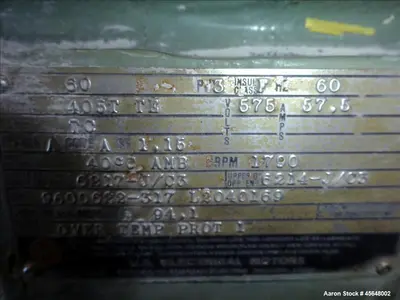

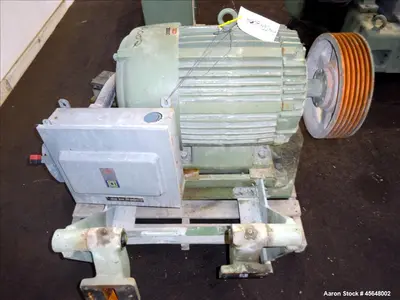

Main Drive: 60 HP motor, 575V, 3-phase, 60 Hz

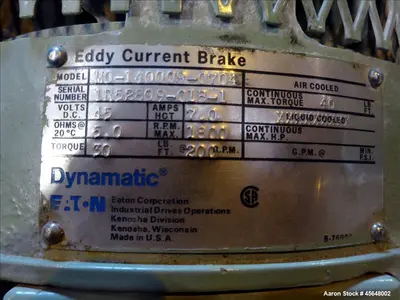

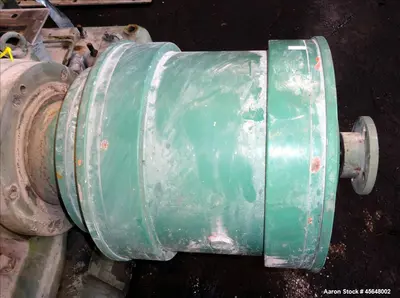

Back Drive: Eddy current system

Construction: 316 Stainless Steel (product contact areas)

Mounting: Main drive sub-base

Additional Features:

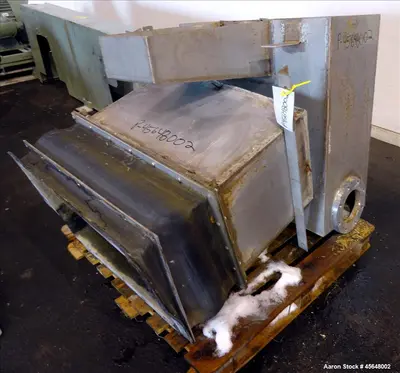

Base and casing
Feed pipe

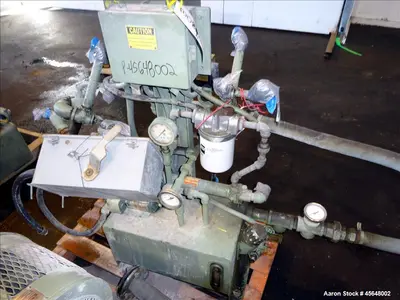

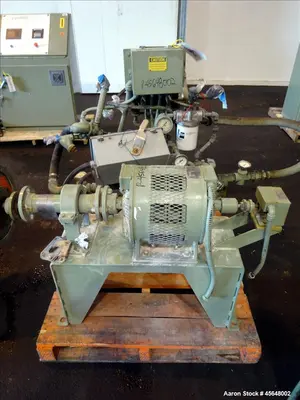

Lube system
Vibration isolators

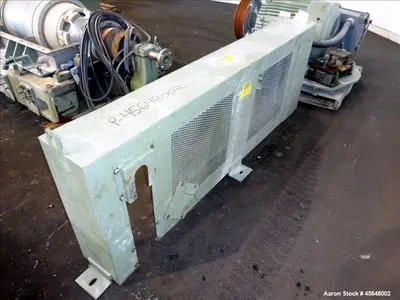

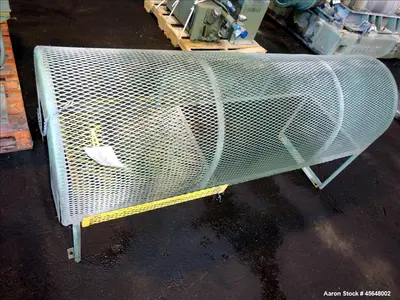

Safety guards

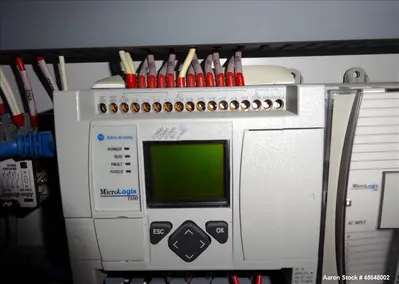

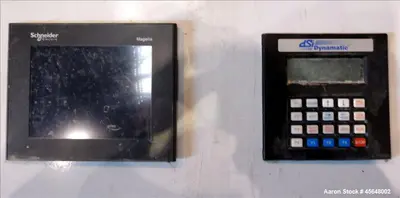

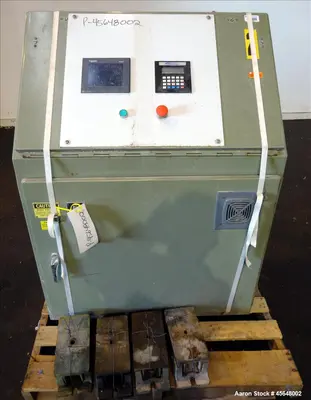

Control Panel: Danfoss electronic drive

Applications
This centrifuge is ideal for a wide range of industrial separation processes, including:

Oil and gas processing
Wastewater treatment
Food and beverage processing
Pharmaceutical and biotech industries
Chemical and petrochemical refining
Biodiesel and renewable energy production
Mining and mineral processing

What Products Would This Be Used For?

Dewatering sludge in wastewater treatment plants
Separation of solids from liquids in chemical and food processing
Oil recovery in petroleum refining
Clarification of juice, wine, and other beverages
High-speed separation of fine particles in industrial processes
