USED US FILTER JS1500ED
Overview
🏭 Manufacturer Information
Brand: US Filter / Hiller
Model: JS1500ED
Type: Solid Bowl Decanter Centrifuge
Construction: Stainless Steel (product contact areas)
Built: 2004
Reported Condition: Reconditioned by US Filter
📃 Description

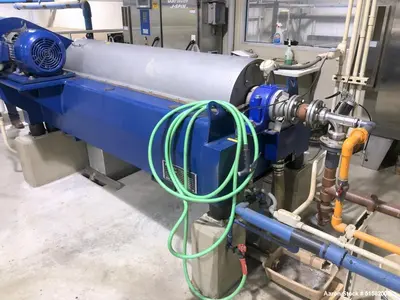

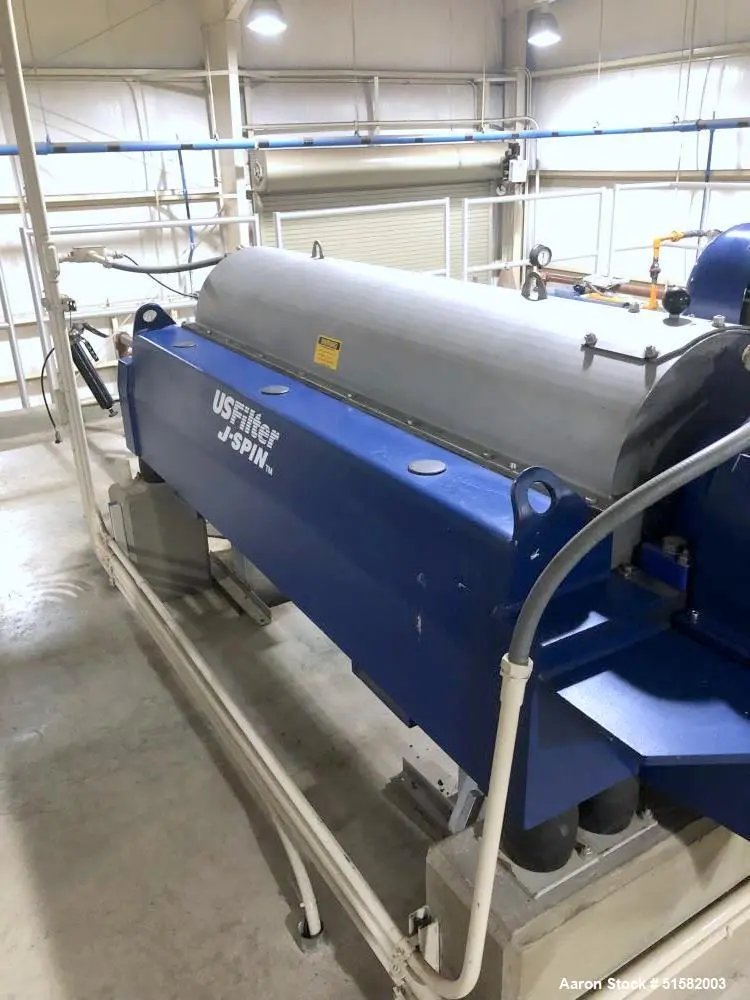

This Used Hiller JS1500ED Solid Bowl Decanter Centrifuge is a heavy-duty, high-performance unit designed for continuous solid-liquid separation in demanding environments such as wastewater treatment. Manufactured in 2004 and reconditioned by US Filter, this unit features stainless steel product contact surfaces, making it corrosion-resistant and suitable for extended use in sludge and slurry applications.
It operates at a maximum bowl speed of 4200 RPM and is driven by a 25 HP motor (3/60/408V) running at 3530 RPM. The centrifuge is designed to handle up to 122°F operating temperature and material densities up to 81 cu. ft. permissible density. The large 14.57" diameter x 64.33" length bowl offers efficient dewatering capabilities, while the robust construction and reconditioning ensure long-term reliability.

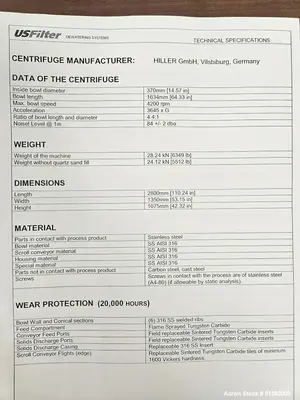

📏 Specifications
Model: JS1500ED
Construction: Stainless Steel (product contact areas)
Max Bowl Speed: 4200 RPM
Max Operating Speed: 4000 RPM
Operating Temp: Up to 122°F
Permissible Density: 81 cu. ft.
Bowl Diameter: 14.57" (370 mm)
Bowl Length: 64.33" (1634 mm)
Bowl Thickness: 0.39"
Motor: 25 HP, 3 Phase, 60 Hz, 408V, 3530 RPM
Overall Dimensions (OAD): Approx. 111" L x 54" W x 43" H
Year Built: 2004
Condition: Reconditioned by US Filter
Previous Use: Wastewater Treatment
🛠️ Applications
Ideal for:
Municipal wastewater treatment
Industrial sludge dewatering
Chemical slurry processing
Biological or anaerobic digestate separation
Pulp & paper effluent treatment
Food processing waste management
Oil and fuel industry solids handling
Mining and mineral separation
Biogas system waste stream treatment
General plant solids removal
📦 What Products Would This Be Used For?
Wastewater biosolids
Dewatered sludge cake
Industrial chemical waste
Anaerobic digester solids
Fermentation or biotech residues
Oil separation byproduct
Fruit or vegetable processing waste
Mining slurry
Paint or pigment sludge
Food or dairy production waste
Specs
Model: JS1500ED
Construction: Stainless Steel (product contact areas)
Max Bowl Speed: 4200 RPM
Max Operating Speed: 4000 RPM
Operating Temp: Up to 122°F
Permissible Density: 81 cu. ft.
Bowl Diameter: 14.57" (370 mm)
Bowl Length: 64.33" (1634 mm)
Bowl Thickness: 0.39"
Motor: 25 HP, 3 Phase, 60 Hz, 408V, 3530 RPM
Overall Dimensions (OAD): Approx. 111" L x 54" W x 43" H
Year Built: 2004
Condition: Reconditioned by US Filter
Previous Use: Wastewater Treatment
