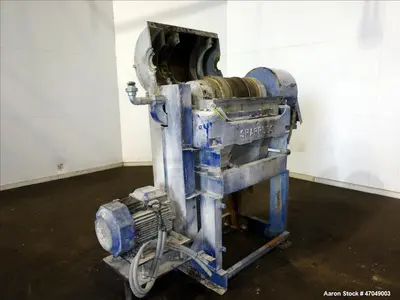

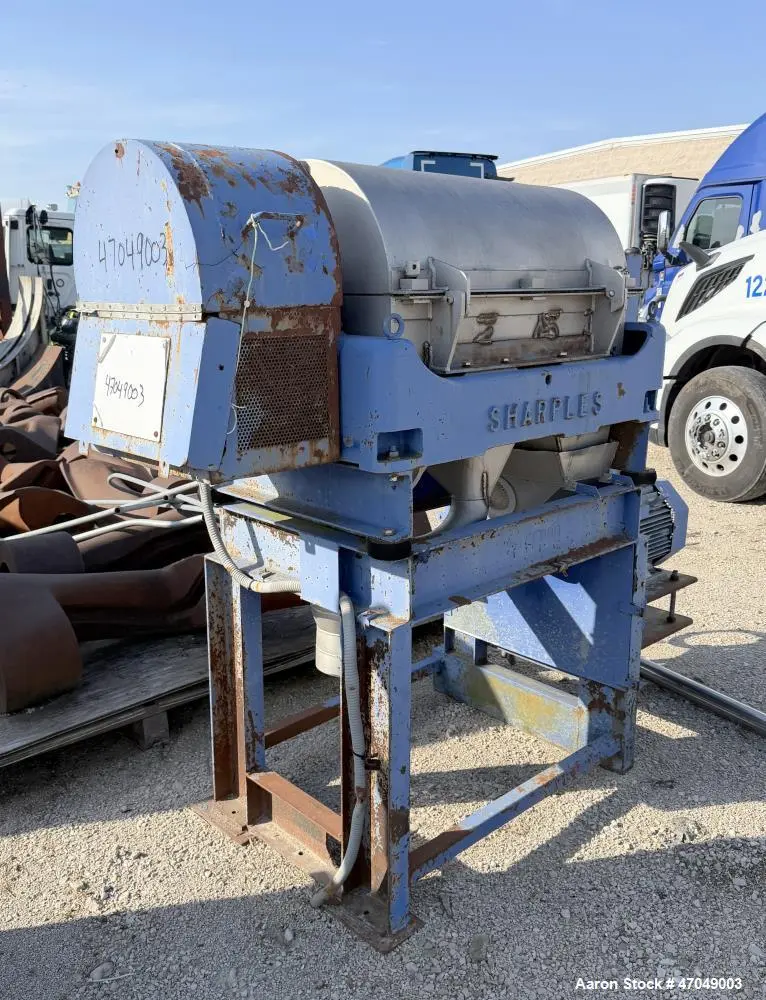

USED SHARPLES P3000

Manufacturer Information

Brand: Alfa Laval / Sharples

Model: P-3000 Super-D-Canter

Condition: Used

Description

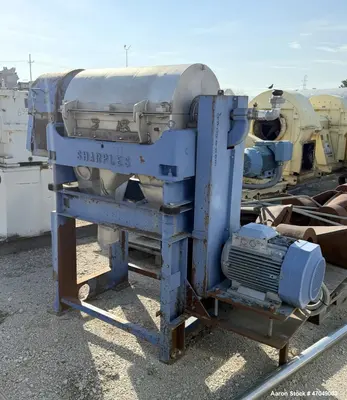

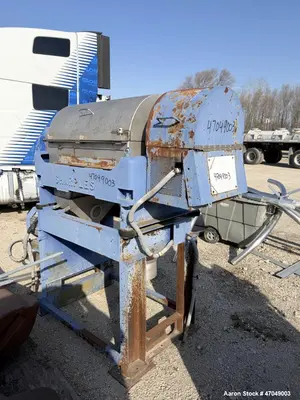

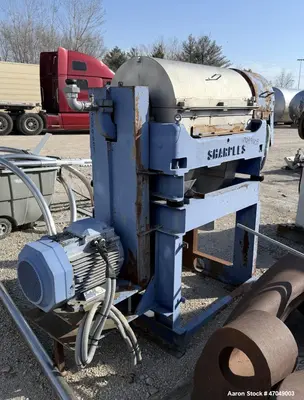

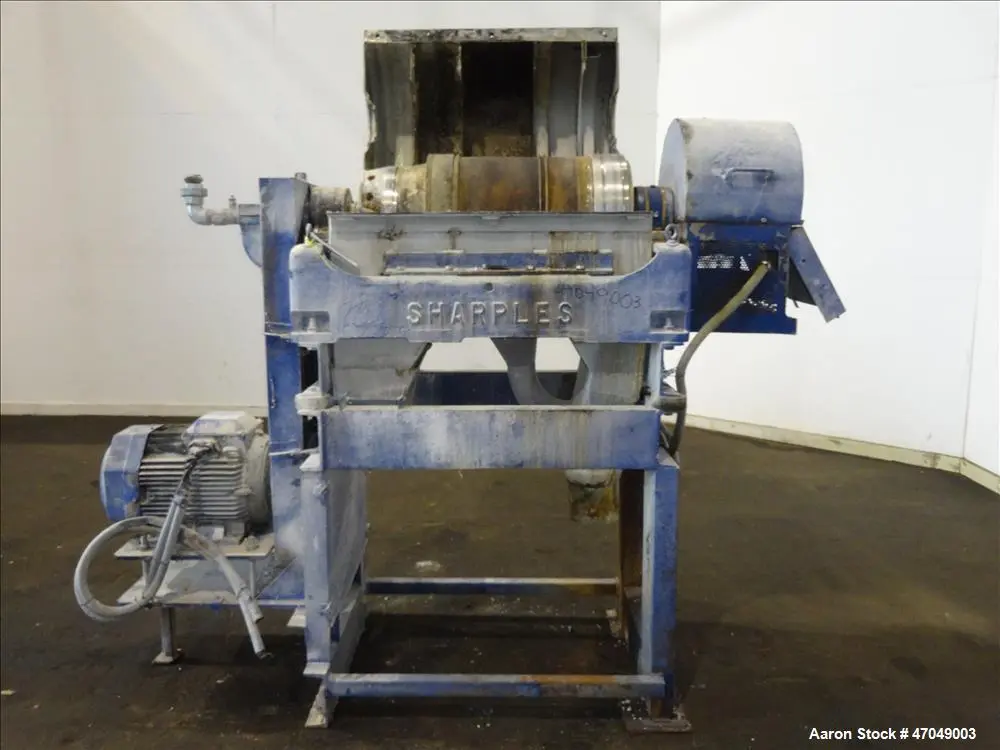

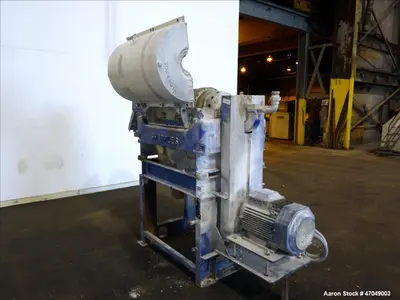

The Alfa Laval / Sharples P-3000 Super-D-Canter Centrifuge is a high-performance solid-liquid separation system, designed for industrial and wastewater applications. Constructed with 316 stainless steel product contact areas, this centrifuge ensures durability and corrosion resistance for demanding environments.

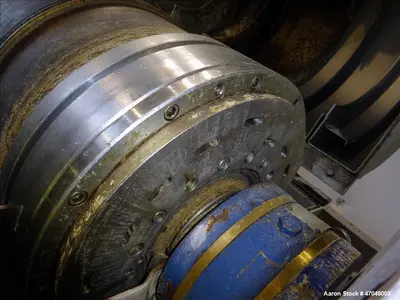

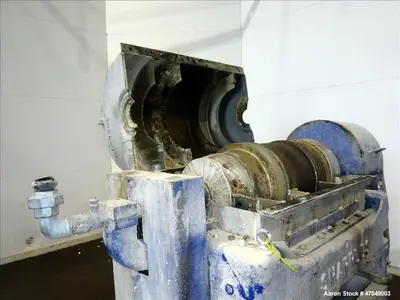

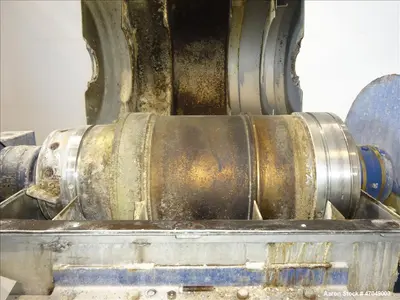

With a maximum bowl speed of 4000 RPM, the unit features a 4" single lead conveyor with welded hardfacing for enhanced wear resistance. The single-row lined cake discharge with cake flingers and liquid plate dams provide efficient solids separation and disposal.

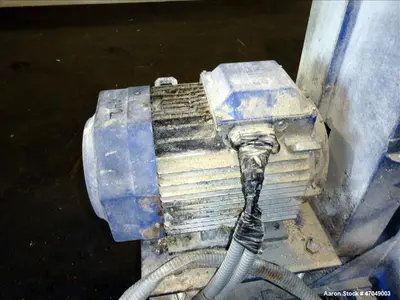

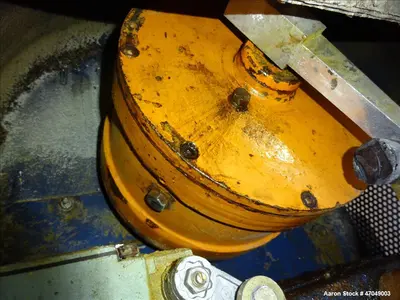

The centrifuge is equipped with a gearbox with a torque arm assembly, a feed pipe, vibration isolators, and a sturdy base and casing for stability and operational reliability. It is powered by a 28.5 HP (21.3 kW) main drive motor (3-phase, 60 Hz, 460V) running at 1765 RPM.
Specifications

Type: Super-D-Canter Centrifuge

Material: 316 Stainless Steel (Product Contact Areas)

Maximum Bowl Speed: 4000 RPM

Conveyor: 4" Single Lead with Welded Hardfacing

Discharge System:

Single-Row Lined Cake Discharge with Cake Flingers
Liquid Plate Dams

Gearbox: With Torque Arm Assembly

Additional Features:

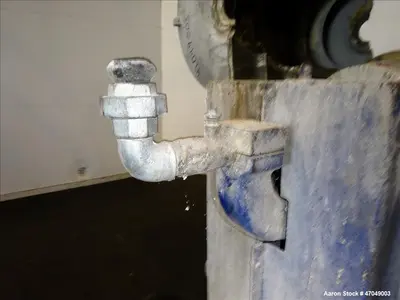

Feed Pipe
Vibration Isolators
Base & Casing

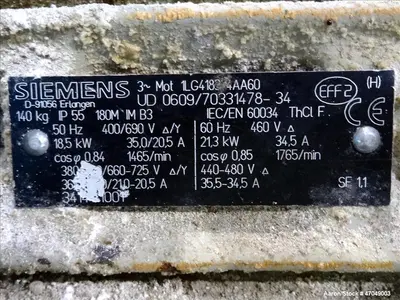

Motor:

Power: 28.5 HP (21.3 kW)

Voltage: 3-Phase, 60 Hz, 460V

Speed: 1765 RPM

Applications
This Alfa Laval / Sharples P-3000 Super-D-Canter Centrifuge is ideal for:

Wastewater Treatment – Sludge dewatering and industrial effluent processing

Chemical Processing – Fine particle separation and industrial solvent recovery

Food & Beverage Processing – Clarification of liquids and edible oil purification

Oil & Gas Industry – Drilling mud separation and crude oil treatment

Pharmaceutical & Biotech – High-purity ingredient separation

Mining & Minerals Processing – Dewatering of mineral slurries

Renewable Energy & Biofuels – Biomass separation and ethanol processing
