USED ALFA LAVAL AVNX-4045/AVNX 919B-31G

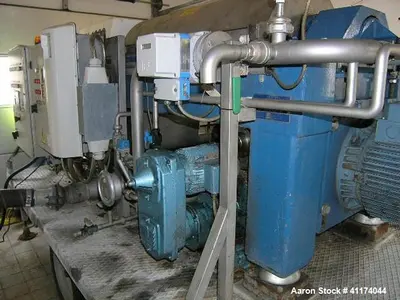

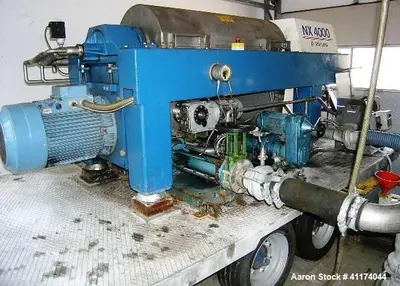

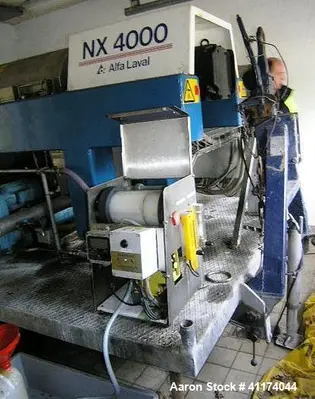

Used Mobile Waste Water Treatment Decanter System consisting of (1) used Alfa Laval AVNX-4045/AVNX 919B-31G Solid Bowl Decanter Centrifuge. 316 Stainless Steel construction (product contact areas). Maximum bowl speed 3250 rpm. Capacity; approximately 150 kg dry solids/hour; 6 m3/hour with 2.5 % dry solids. Single row of lined cake discharge ports, single lead conveyor, base, casing, gearbox with feed pipe, approx. 30 kw main drive motor, back drive. On 4 legs. Incl. (2) control panels, pump, piping, sensors, valves and additional infrastructure. Mounted on trailer. New year 1994. Trailer dimensions: L x W x H: 3500 mm Long x 2000 mm Width x 2140 mm high. Weight 3 tonnes. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturers Info:

Manufacturer: Alfa Laval

Model: AVNX-4045 / AVNX 919B-31G

Year Built: 1994

Construction: 316 Stainless Steel (Product Contact Areas)

Condition: Used

Mounting: Trailer-Mounted Mobile System

Description:
This used mobile wastewater treatment decanter system is a self-contained, high-efficiency solution for wastewater treatment and sludge dewatering. It features a used Alfa Laval AVNX-4045 / AVNX 919B-31G Solid Bowl Decanter Centrifuge, designed for continuous solid-liquid separation with a maximum bowl speed of 3,250 RPM. The system has a processing capacity of approximately 150 kg dry solids per hour or 6 m³ per hour at 2.5% dry solids. Built with 316 stainless steel product contact surfaces, this decanter centrifuge ensures durability and corrosion resistance. The unit is fully equipped with control panels, pumps, sensors, valves, and piping, and is mounted on a mobile trailer for easy deployment.
Specifications:

Centrifuge Model: Alfa Laval AVNX-4045 / AVNX 919B-31G

Construction: 316 Stainless Steel (Product Contact Areas)

Bowl Maximum Speed: 3,250 RPM

Processing Capacity: 150 kg dry solids/hour, 6 m³/hour at 2.5% dry solids

Discharge System: Single row of lined cake discharge ports, single lead conveyor

Motor Power: 30 kW main drive motor, back drive included

Additional Equipment:

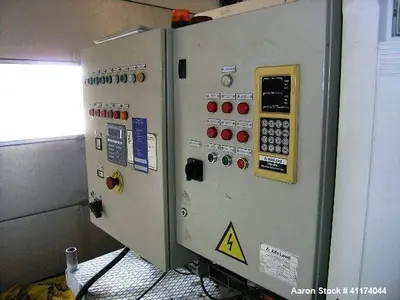

(2) Control Panels

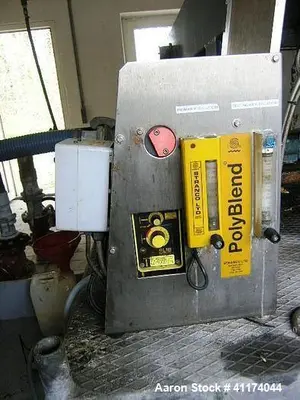

Pump, Piping, Sensors, Valves, Infrastructure

Trailer Dimensions: 3,500 mm (L) x 2,000 mm (W) x 2,140 mm (H)

Weight: 3 Tonnes

Mounting: Trailer-mounted on 4 legs

Applications:

Municipal & Industrial Wastewater Treatment
Sludge Dewatering & Liquid-Solid Separation
Oil & Gas Drilling Mud Processing
Mining & Mineral Waste Management
Food & Beverage Waste Processing
Environmental Remediation & Mobile Water Treatment

Common Products Processed With This Decanter System:

Municipal & Industrial Wastewater Sludge
Drilling Mud & Oilfield Wastewater
Chemical & Pharmaceutical Byproducts
Food & Beverage Processing Residues
Renewable Energy Biomass Processing
