Alfa Laval Fermenter / Reactor, Approximate 40 Liter (10.5 Gallon), 316L-Unused-

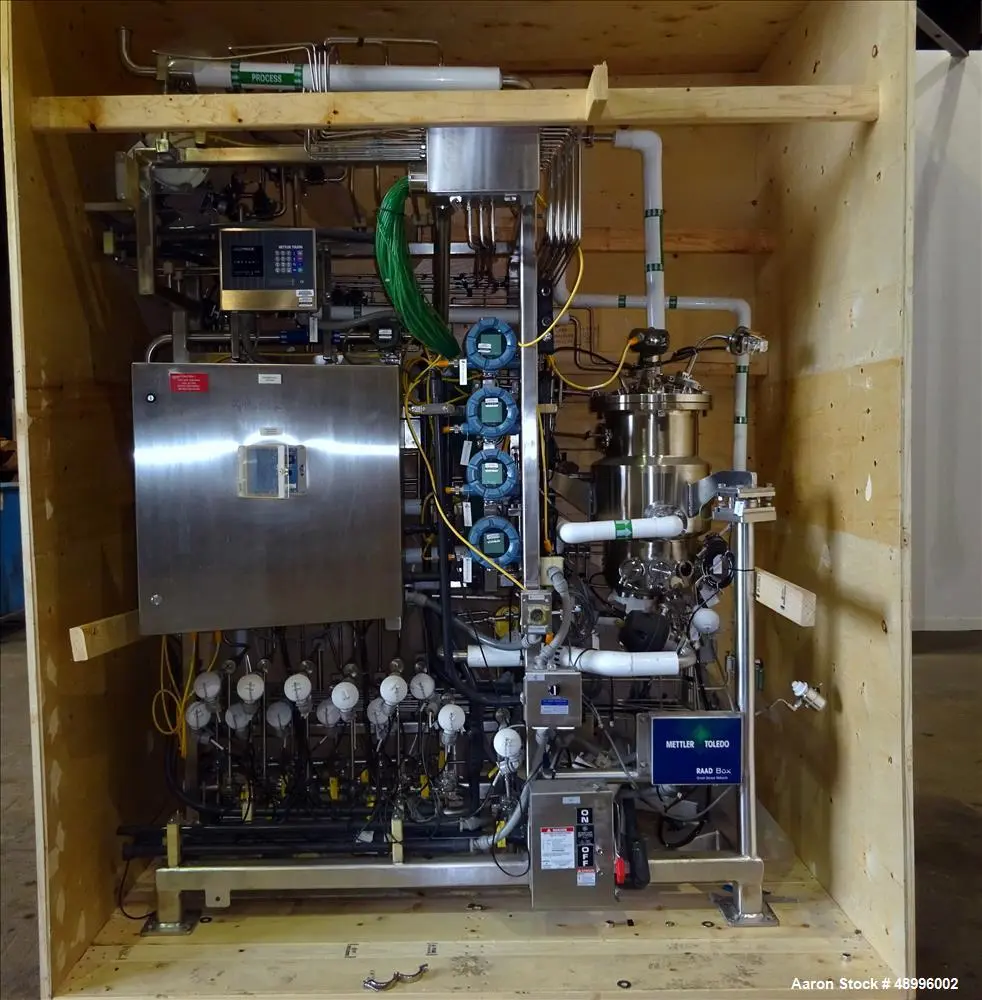

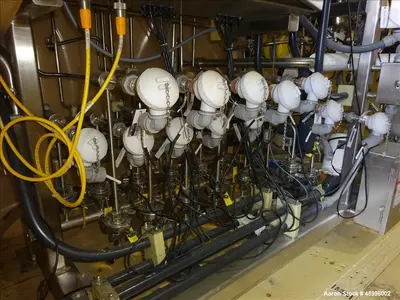

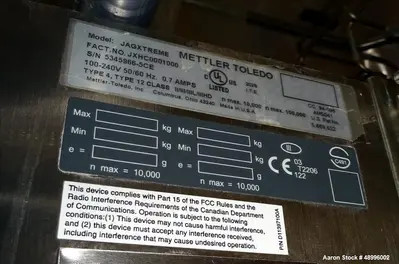

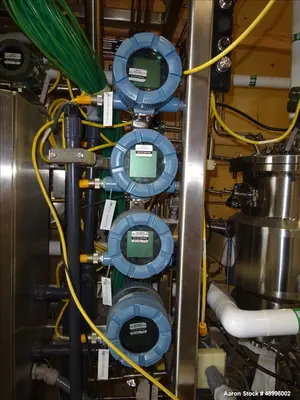

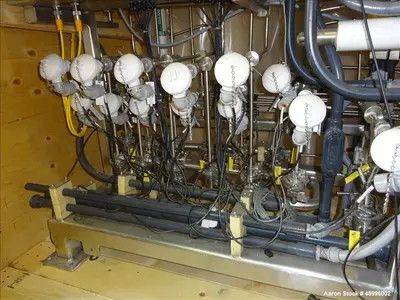

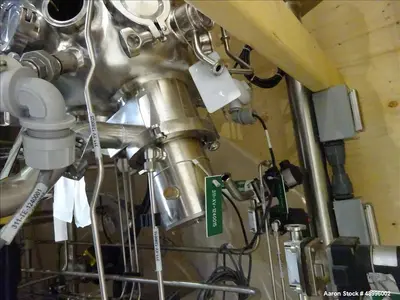

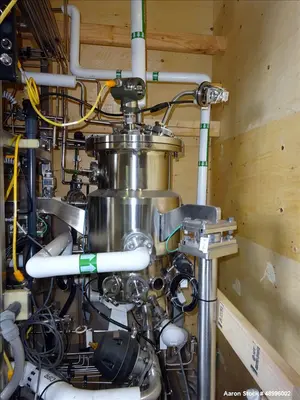

Unused- Alfa Laval Fermenter / Reactor, Approximate 40 Liter (10.5 Gallon), 316L Stainless Steel, Vertical. Approximate 12" diameter x 22" straight side, bolt-on flat top, dished bottom. Internal rated 45 PSI/FV at -20 to 400 degree F. 316L Stainless steel Jacket rated 150 psi/FV at -20 to 400 degree F. Bottom entering agitation 1/2hp drive, missing agitator. (1) Spray ball. Side lug mounted with load cells. National Board #264. Serial #786-100/17. Built 2004. Includes control panel with Wedgewood technology model 653 absorbance monitor, Mettler toledo Jag xtreme digital read out, (4) metering valves. All mounted on stainless steel frame.

Used Equipment Facts About This Machine
Manufacturer: Alfa Laval
Capacity: Approx. 40 Liters (10.5 Gallons)
Material: 316L Stainless Steel
Year Built: 2004
Condition: Unused

Description:

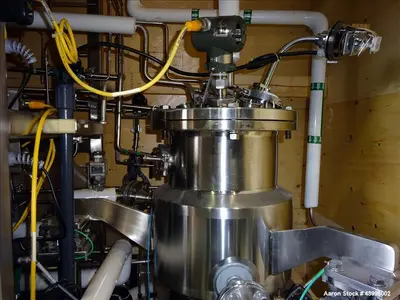

This Unused Alfa Laval Fermenter / Reactor is constructed from high-grade 316L stainless steel, designed for precision fermentation and chemical processing. With an approximate 40-liter (10.5-gallon) capacity, it features a vertical orientation with a 12" diameter and 22" straight side, a bolt-on flat top, and a dished bottom. The internal vessel is rated for 45 PSI/FV at temperatures ranging from -20°F to 400°F, while the 316L stainless steel jacket is rated for 150 PSI/FV within the same temperature range. It includes a bottom-entering agitation system with a 1/2 HP drive (agitator missing), a spray ball for CIP, and is side-lug mounted with load cells. This fermenter comes complete with a control panel featuring Wedgewood pH and temperature controls.

Specifications:

Capacity: Approx. 40 Liters (10.5 Gallons)

Material: 316L Stainless Steel (product contact areas and jacket)

Vessel Dimensions: Approx. 12" diameter x 22" straight side

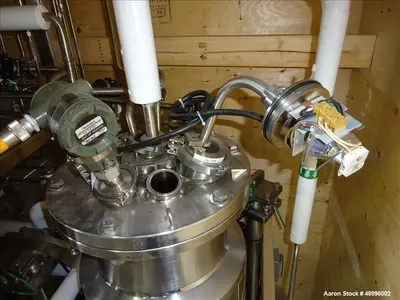

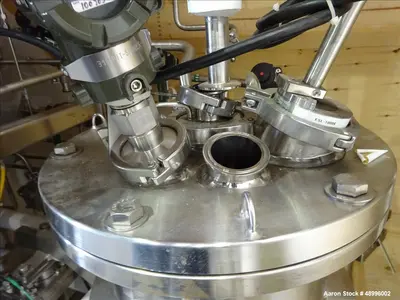

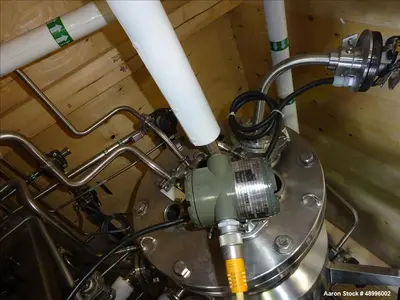

Top: Bolt-on flat top

Bottom: Dished bottom

Internal Pressure Rating: 45 PSI/FV @ -20°F to 400°F

Jacket Pressure Rating: 150 PSI/FV @ -20°F to 400°F

Agitation: Bottom-entering with 1/2 HP drive (agitator missing)

Features:

(1) Spray ball for CIP
Side-lug mounted with load cells

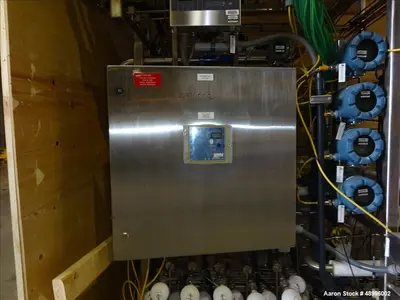

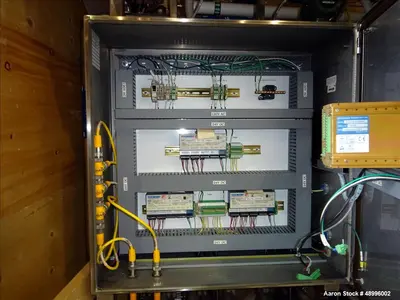

Control panel with Wedgewood pH and temperature controls

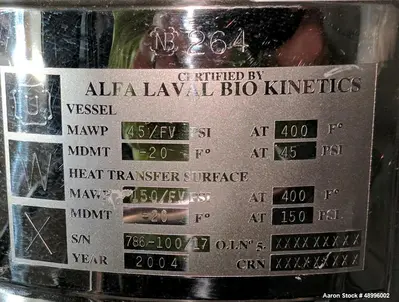

Certifications: National Board #264

Serial Number: 786-100/17

Year Built: 2004

Condition: Unused

Applications:

Fermentation processes
Biopharmaceutical production
Chemical reactions and mixing
Food and beverage fermentation
Laboratory and pilot-scale testing

Common Uses in Industries:

Biotech & Pharmaceutical – fermentation and cell culture

Food & Beverage – brewing, dairy fermentation, and flavor production

Chemical Processing – small-scale chemical reactions

Cosmetics – mixing and formulation of creams and gels

Laboratories & R&D – pilot-scale fermentation and testing
