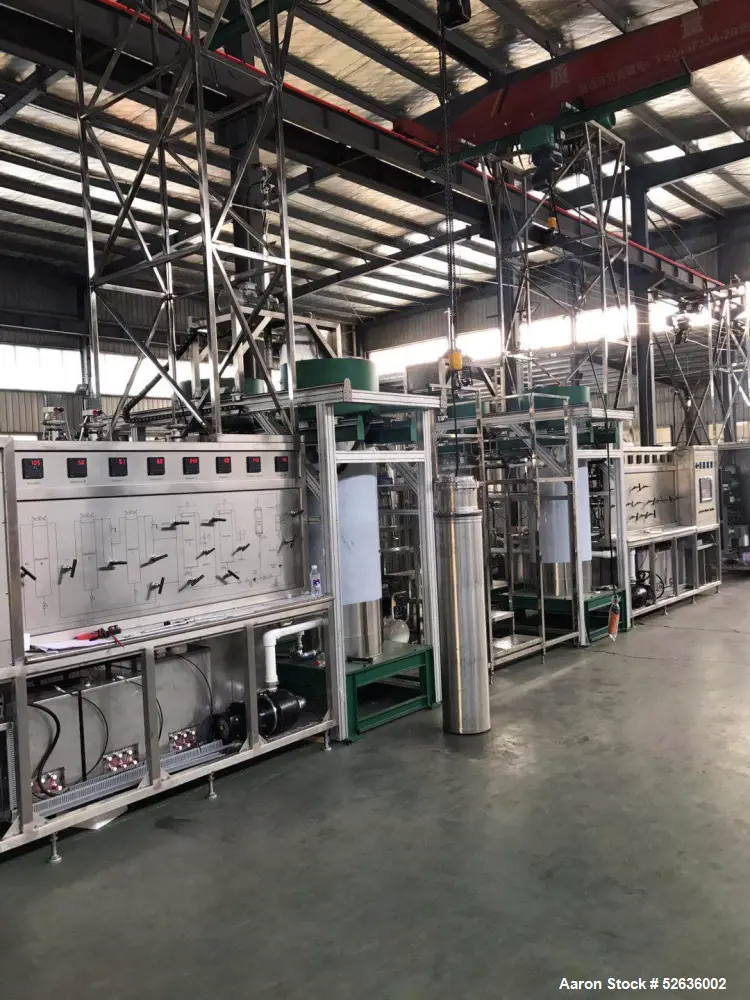

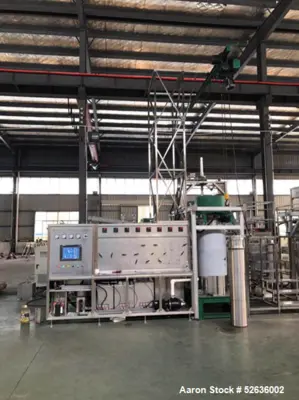

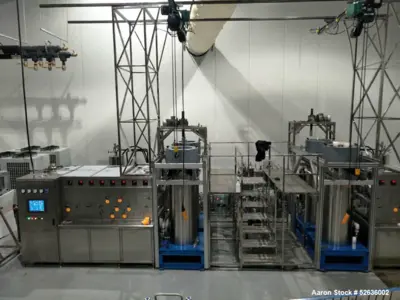

Unused Supercritical CO2 Fluid Extraction Machine – Industrial Cannabis/THC Extractor

Unused- industrial Supercritical CO2 Extraction (SCFE) system designed to extract high-value compounds from natural raw materials such as plants, biomass, and oils using carbon dioxide in its supercritical state, ensuring a clean, solvent-free, and highly efficient process. The system is configured with one extractor and two separators, allowing operation in both batch and continuous modes, with the option to incorporate co-solvents when required. It is manufactured entirely in 304 stainless steel and equipped with a PLC-based automatic and manual control system, enabling precise monitoring and control of pressure, temperature, and flow throughout the process. The unit operates at pressures up to 5055 MPa and temperatures up to 8590C, and includes integrated safety features such as overpressure protection and safety valves, ensuring reliable and secure operation. In terms of capacity, this configuration corresponds to a large-scale industrial solution, featuring dual extraction vessels of approximately 150L each (150L 2), making it capable of processing significant volumes of raw material per batch or in continuous production. Additionally, the system incorporates electro-heating, CO2 recovery systems, high-pressure valves, and specialized sealing components, providing durability, operational efficiency, and consistency. This makes it an ideal solution for pharmaceutical, food, nutraceutical, and cosmetic applications, where high purity and process control are essential

Used Equipment Facts About This Machine
Manufacturer Information:

Condition: Unused

System Status: Crated and ready for shipment

Manufacturing Data:

Maximum Extraction Pressure: 40MPa

Maximum Separation Pressure: 20MPa

Extraction Kettle Volume: 150L x 2 (Total 300L)

Extraction Temperature Range: Normal temperature ~ 75°C

Maximum CO2 Flow Rate: 1000L/h (Adjustable)

Plunger Pump Flow Rate: 1000L/h and 10L/h

Included System Components:

Refrigeration Device – Maintains optimal CO2 temperature

Temperature Control Display System – Ensures precise heat regulation

Pressure Control Display System – Real-time monitoring of extraction pressure

Safety Protection Device – Built-in safety measures for high-pressure operation

Carrier Tank – Supports CO2 circulation and storage

Purifier – Ensures high-purity extraction

Mixer – Enhances compound separation efficiency

Heat Exchange Device – Optimizes thermal energy use

Storage Tank – Holds extracted materials before further processing

Plunger Pump – Dual flow rate of 1000L/h and 10L/h for extraction control

Extraction Tank – Main chamber for supercritical CO2 extraction

Separator – Facilitates component isolation and fractionation

Electric Control Cabinet – Centralized operational controls

Valve & Pipe Fittings – High-pressure-resistant piping and flow regulation

Cabinet Rack – Structural support for organized system setup

Description:
The Supercritical CO2 Fluid Extraction Machine is a high-capacity industrial extraction system designed for large-scale cannabis, THC, and botanical oil extraction. With dual 150L extraction kettles, this system provides high-throughput processing at a maximum extraction pressure of 40MPa.
This fully automated CO2 extraction system includes advanced temperature and pressure control displays, a purification system, and high-efficiency heat exchange to ensure precise, high-purity extraction. Equipped with a safety protection system and high-pressure CO2 pump, this extractor is optimized for pharmaceutical-grade cannabis and THC processing.
This unused system is crated and ready for shipment, making it ideal for businesses seeking a turnkey industrial extraction solution.
Specifications:

Extraction Kettle Volume: 150L x 2 (Total 300L)

Maximum Extraction Pressure: 40MPa

Maximum Separation Pressure: 20MPa

Extraction Temperature Range: Normal temperature ~ 75°C

Maximum CO2 Flow Rate: 1000L/h (Adjustable)

Plunger Pump Flow Rate: 1000L/h & 10L/h

System Status: Crated and ready for shipment

Applications:

Cannabis and THC extraction
CBD oil production
Full-spectrum and broad-spectrum cannabinoid extraction
Botanical and herbal oil extraction
Nutraceutical and pharmaceutical compound separation
Essential oil and terpene extraction

Potential Products for Extraction:

Full-spectrum THC and CBD oil
Terpene-rich cannabis extracts
Hemp-derived cannabinoid concentrates
Herbal medicine extracts
Essential oils for cosmetics and aromatherapy
