Industrial Hemp Biomass Drying System – Guoxin GX2-12-4, 24m Line, 0–120°C Range

Manufacturer Information:
Manufacturer: Guoxin Machinery
Model: GX2-12-4
Type: Continuous Hemp Drying Line
Condition: Used
Country of Origin: China
Year Built: Not specified

Description:

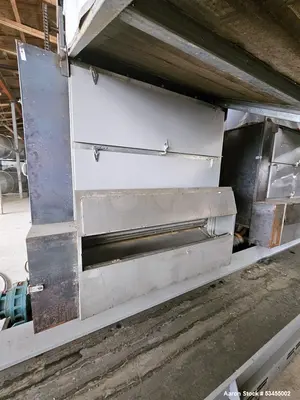

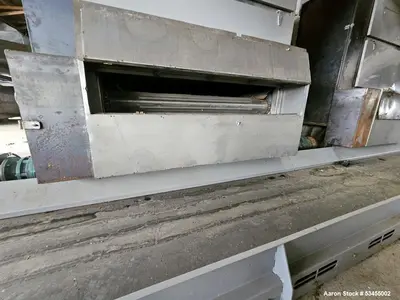

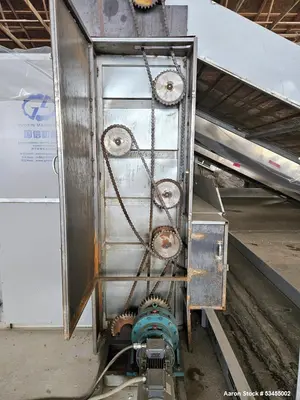

Used Guoxin Model GX2-12-4 Hemp Drying Line designed for industrial-scale hemp and biomass drying applications. With a 775 sq. ft. (72 sq. meters) drying area, this system can process 400–1000 lbs (180–450 kg) of wet biomass and produce 90–220 lbs (40–100 kg) of dried output per cycle. The system supports adjustable working temperatures between 0–120°C (32–248°F) and drying times between 0.1–5 hours, depending on material and spread thickness. The line includes all critical components: feeding conveyor, drying room, burner, heat exchanger, blower, exhaust fan, and discharge conveyor. Ideal for high-throughput, low-labor hemp or botanical processing.

Specifications:

Model: GX2-12-4

Manufacturer: Guoxin Machinery

Drying Area: 72 sq meters / 775 sq ft

Wet Biomass Input Capacity: 180–450 kg (400–1000 lbs)

Dried Biomass Output Capacity: 40–100 kg (90–220 lbs)

Material Spread Thickness: 50–200 mm (2–8 inches)

Working Temperature Range: 0–120°C (32–248°F)

Drying Time Range: 0.1–5 hours

Heat Exchanger Furnace Size: 4.7 x 1.5 x 3 meters

Overall Dimensions (OAD):

24m L x 6.5m W x 2.8m H (79' L x 21' W x 9' H)

Line Components Included:

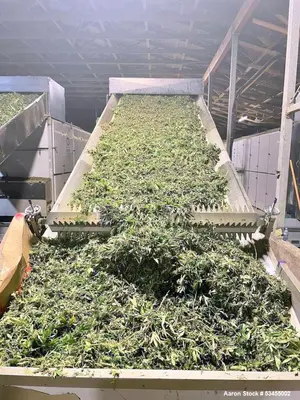

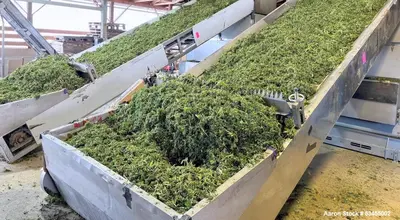

Feeding Conveyor – Uniform material loading

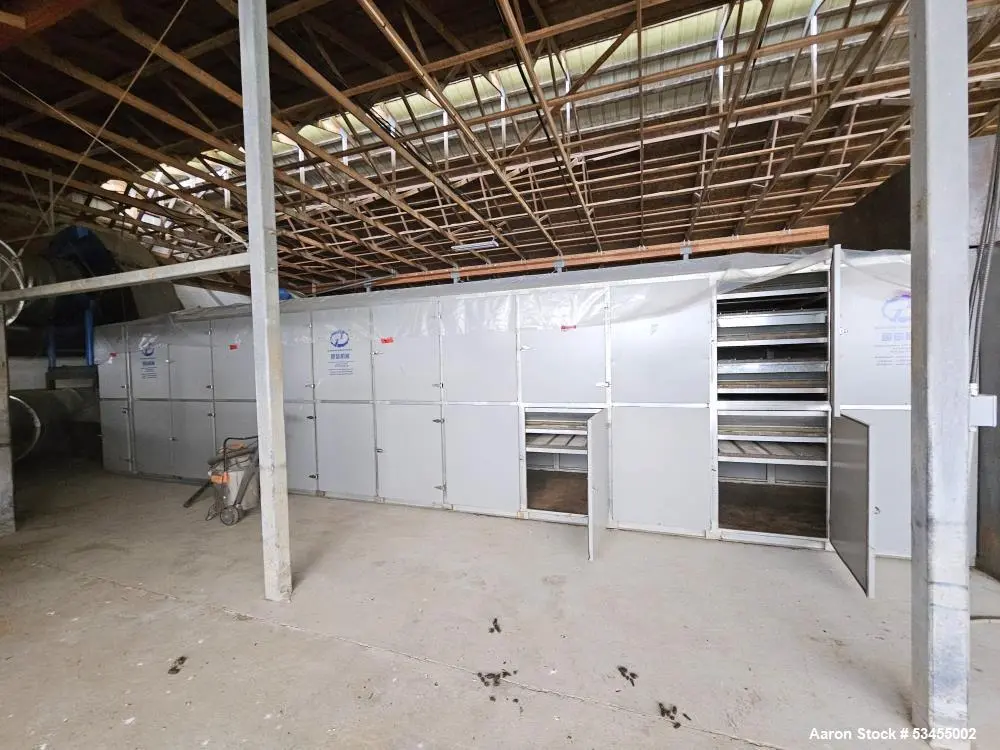

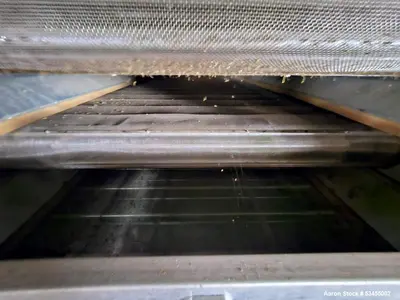

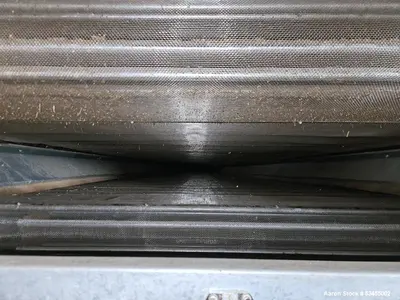

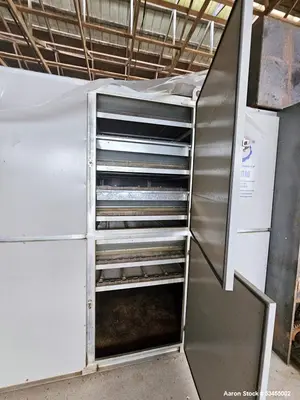

Drying Room – Main chamber with multi-layer drying belts

Burner – Compatible with wood, gas, or biomass fuels

Heat Exchanger – Transfers heat safely and efficiently

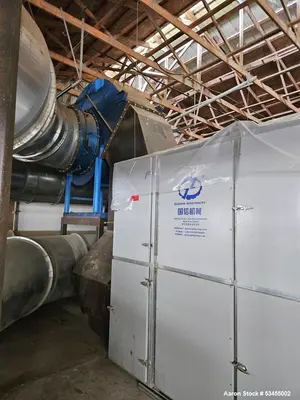

Blower – Circulates hot air within drying chamber

Exhaust Fan – Removes moisture-laden air

Discharge Conveyor – Continuous output for easy material handling

Applications:

Hemp flower and biomass drying

Cannabis post-harvest processing

Agricultural crop dehydration

Herbal drying (moringa, mint, chamomile)

Leafy greens, roots, and vegetables

Industrial botanical processing

Nutraceutical ingredient preparation

Functional food ingredient drying

Organic material moisture removal

Natural product supply chain prep

What products would this be used for:

CBD-rich hemp biomass

Hemp flower for extraction

Herbal leaves and flowers

Dry root crops and medicinal herbs

Cannabis feedstock for oil

Agricultural byproducts

Superfoods and botanicals

Spices and seasoning plants

Compost and plant waste drying

Organic biomass conditioning
