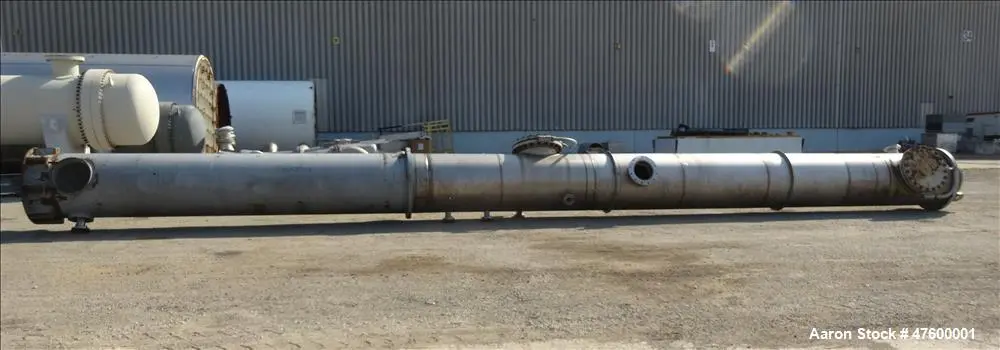

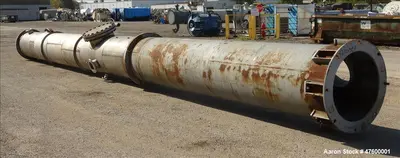

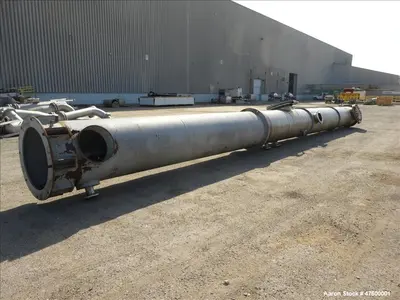

Used DCR Construction Acid Reduction Column, 304 Stainless Steel, Vertical. 36" Diameter x 297" straight side, 2:1 elliptical top and bottom. Approximate 49' overall height. Internal rated 50 psi at -20 to 250 degrees F. Openings top 18" vapor outlet, side 6" liquid inlet, side top 24" man way with cover & davit arm, 12" packing dump, 8" vapor inlet, (4) 3", side bottom 24" man way with cover & davit arm, 4" liquid bottom outlet. Mounted on an approximate 183" tall carbon steel skirt. Serial# 4411-7798, National Board# 216, built 2007.
Used Equipment Facts About This Machine
Manufacturer Information:
Brand: DCR Construction
Type: Acid Reduction Column
Material: 304 Stainless Steel

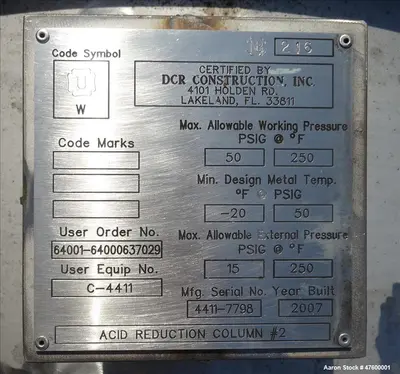

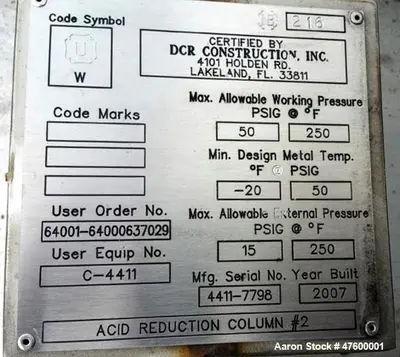

Serial #: 4411-7798
National Board #: 216
Year Built: 2007
Description:
This used DCR Construction Acid Reduction Column is a high-capacity industrial processing vessel, designed for acid neutralization, distillation, and chemical processing applications.
Constructed from 304 stainless steel, this column features a vertical design with a 36” diameter and 297” straight side, along with a 2:1 elliptical top and bottom. With an approximate overall height of 49 feet, it provides large-scale processing capabilities for chemical, pharmaceutical, and industrial applications.
The internal rating of 50 PSI at -20 to 250°F ensures reliable performance under varying pressure and temperature conditions. It is equipped with multiple process openings, including a top 18” vapor outlet, side 6” liquid inlet, two 24” manways with davit arms, a 12” packing dump, and an 8” vapor inlet.
Mounted on a 183” tall carbon steel skirt, this unit is designed for stability and durability in demanding industrial environments.
Key Features:
304 Stainless Steel Construction for Corrosion Resistance
36” Diameter x 297” Straight Side, 2:1 Elliptical Top & Bottom
49’ Overall Height for Large-Scale Acid Reduction & Processing
Internal Rating: 50 PSI at -20 to 250°F
Multiple Openings for Process Integration & Maintenance Access
18” Vapor Outlet (Top)
6” Liquid Inlet (Side)
24” Manways with Covers & Davit Arms (Side Top & Bottom)
12” Packing Dump
8” Vapor Inlet
(4) 3” Openings
4” Liquid Bottom Outlet
Mounted on a 183” Tall Carbon Steel Skirt for Stability
Ideal for Chemical, Acid Neutralization, and Distillation Applications
Serial #: 4411-7798 | National Board #: 216 | Built 2007
Specifications:
Material: 304 Stainless Steel
Design: Vertical Acid Reduction Column
Diameter: 36”
Straight Side Height: 297”
Overall Height: 49’
Elliptical Top & Bottom: 2:1 Ratio
Pressure Rating: 50 PSI
Temperature Range: -20 to 250°F
Mounting: 183” Tall Carbon Steel Skirt
Serial #: 4411-7798
National Board #: 216
Year Built: 2007
Applications:
Acid Reduction & Neutralization – Chemical treatment and pH adjustment
Chemical Processing & Distillation – Separation and refining processes
Pharmaceutical Manufacturing – Controlled reaction and purification systems
Petrochemical & Refining – Acid gas treatment and vapor/liquid separation
Industrial Waste Treatment – Neutralization of acidic byproducts
What Products Would This Be Used For?
Acid waste treatment and neutralization
Chemical refining and separation
Vapor and gas processing systems
Petrochemical and distillation applications
Industrial waste management and fluid processing
