USED KOMAREK GREAVES MS 150

Manufacturer Info:

Manufacturer: Komarek Greaves (now part of BEPEX)

Model: MS 150

Type: Briquetter / Roller Compactor

Drive Type: Hydraulic

Condition: Used

Description:

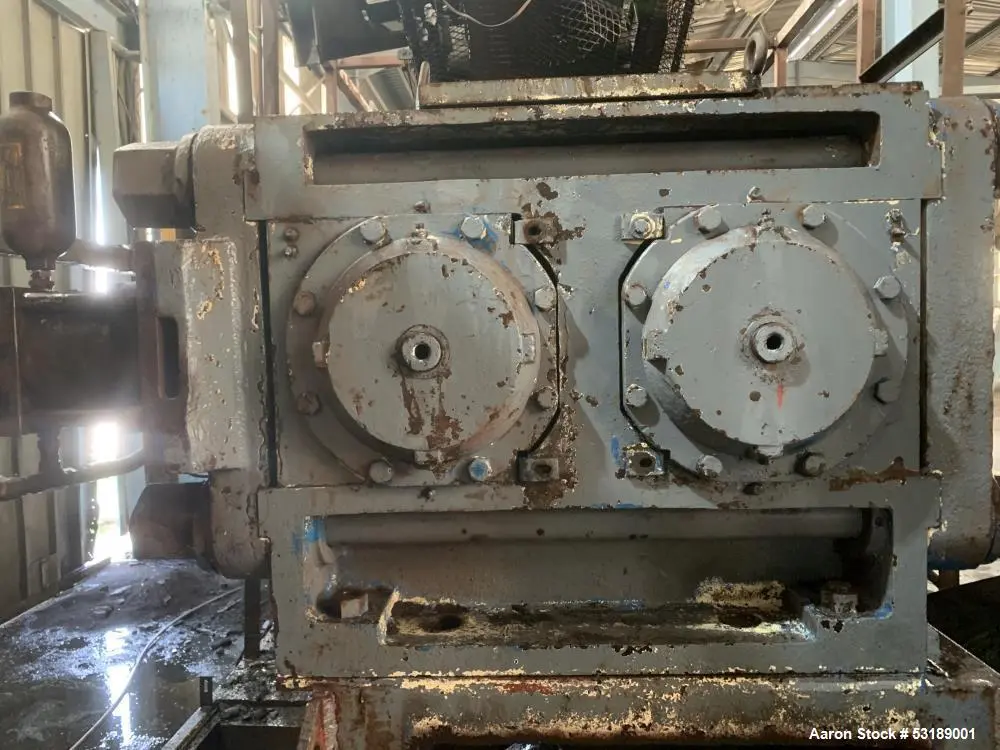

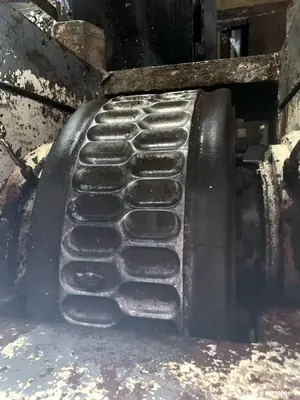

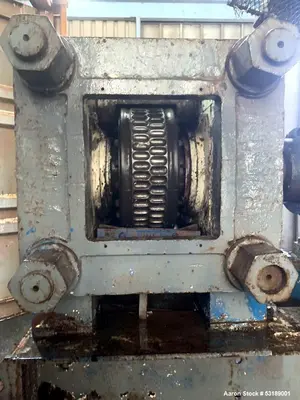

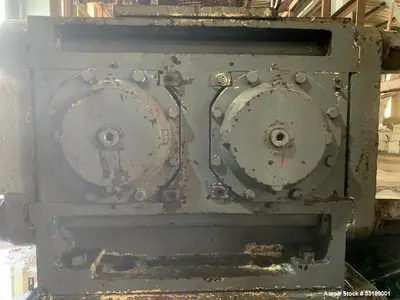

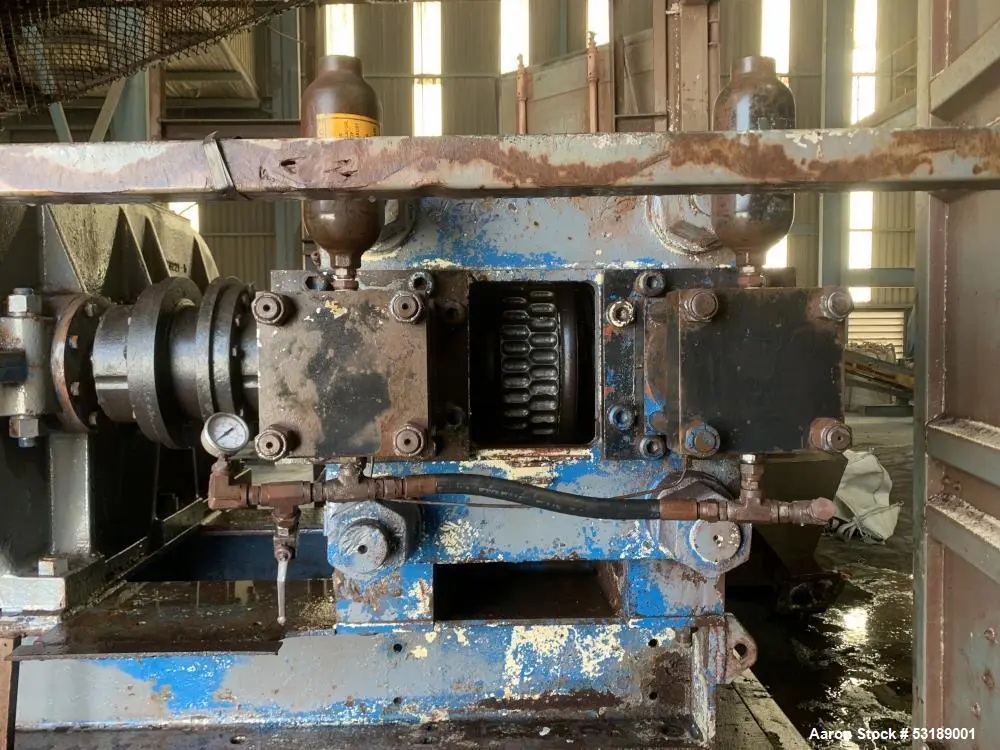

This is a used Komarek Greaves (BEPEX) MS 150 Briquetter Compactor, featuring 11.25” wide x 20” diameter briquetting rolls with two rows of pockets measuring approximately 5 1/8" long x 5/8" wide. The system includes a 125 HP hydraulic drive with variable roll speed and a 25 HP hydraulic auger feeder on a vertical shaft for consistent material flow.

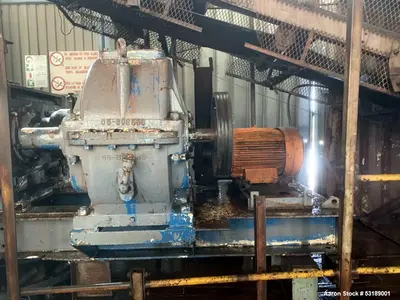

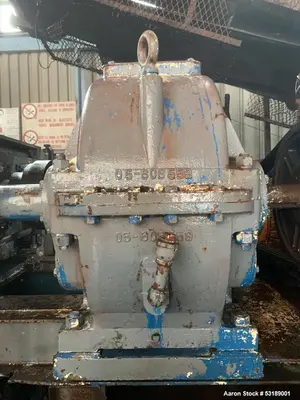

A large KG Gear Reducer is included with 1188 RPM input and 33:1 reduction ratio. The feed hopper is 48" in diameter with a 34" straight wall and 34" conical section. The entrance chute is lined for wear resistance.
Previously used for carbon, coke, coal, and graphite, this robust unit is ideal for producing high-density briquettes from fine particulate feedstocks.

Specifications:

Briquetting Rolls: 11.25" wide x 20" diameter

Pocket Configuration: 2 rows of pockets, approx. 5 1/8" L x 5/8" W

Main Drive: 125 HP hydraulic, variable speed

Feed Auger Drive: 25 HP hydraulic, vertical shaft

Gear Reducer: KG Gear Reducer, 1188 RPM input, 33:1 ratio

Feed Hopper Dimensions: 48" diameter x 34" straight wall x 34" cone

Chute: Wear-lined entrance chute

Overall Dimensions (excluding drives): 12' L x 80" W x 60" H

Previous Materials: Carbon, Coke, Coal, Graphite

Applications:

Briquetting of carbon-based powders

Coal fines compaction

Graphite granulation

Metallurgical coke shaping

Dry powder densification

Biomass or alternative fuel production

Recycled carbon processing

Chemical and mineral compacting

Foundry additive manufacturing

Refractory binder formation

What might this be used for?:
This machine is designed for high-pressure briquetting of fine, dusty, or abrasive carbonaceous materials, such as coal, graphite, coke, or carbon blends. Ideal for operations requiring consistent, durable briquettes for fuel, smelting, or material recycling. Its heavy-duty build supports use in mining, metallurgy, and energy industries.
