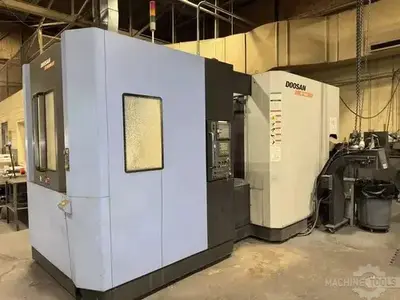

CNC Horizontal Machining Center
| X | 33.5" | 850.9 mm |
| Y | 27.6" | 701.04 mm |
| Z | 29.5" | 749.3 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 14,000 RPM | 14,000 RPM |
| # ATC | 40 | 40 |
| Taper | BT-40 | BT-40 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 3 | 3 |
Request a Quote
Add to Cart
Pallet Size (Millimeters): 500
Pallet Size: 19.7" x 19.7"
X-Axis Travel: 33.5"
Y-Axis Travel: 27.6"
Z-Axis Travel: 29.5"

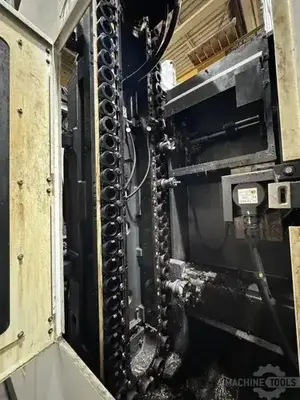

Tool Magazine Capacity: 60 ATC
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40

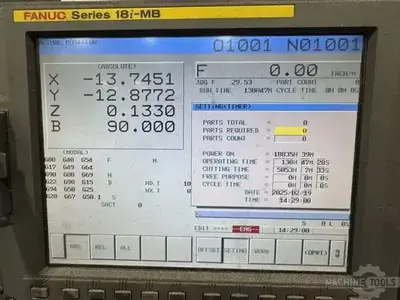

Control: Fanuc

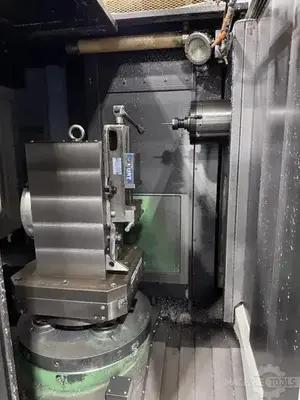

Pallet Indexing: Full 4th Axis
Chip Removal: Chip Conveyor
Coolant: Through-Spindle Coolant
