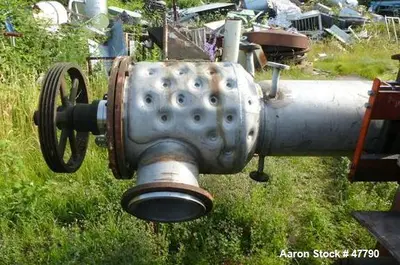

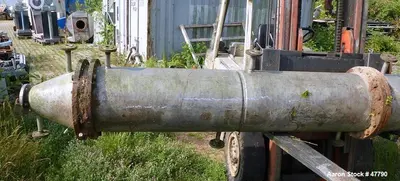

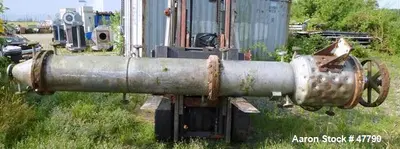

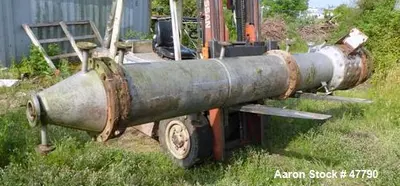

USED BUSS-SMS B400

Manufacturer Information:

Brand: Buss-SMS

Type: Evaporator

Model: B400

Material: 316 Stainless Steel

Description:
This used Buss-SMS B400 Evaporator is a high-performance evaporation system, designed for chemical, pharmaceutical, and industrial applications that require vacuum and pressure-controlled evaporation.
Constructed from 316 stainless steel, the evaporator features a 13' long straight side with a 1'6" diameter, providing efficient heat transfer and vapor separation. The jacketed design is rated for 45 psi (3 bar) and vacuum operation, ensuring precise temperature and pressure control during the evaporation process.
Equipped with a 1" diameter product inlet and a conical 3.5" diameter bottom product outlet, this system allows for efficient material flow and controlled product discharge. The unit is belt-driven but does not include a motor, allowing for customization based on application needs.
Key Features:

316 Stainless Steel Construction for Corrosion Resistance
13' Long Straight Side, 1'6" Diameter for Efficient Evaporation
Jacketed & Rated for 45 PSI (3 Bar) and Vacuum Operation
1” Diameter Product Inlet for Controlled Feed
Conical 3.5” Diameter Bottom Product Outlet for Efficient Discharge
Belt-Driven System (Motor Not Included)
Ideal for Chemical, Pharmaceutical, and Industrial Applications

Specifications:

Model: B400

Material: 316 Stainless Steel

Design: Jacketed Evaporator

Straight Side Length: 13'

Diameter: 1'6"

Jacket Pressure Rating: 45 PSI (3 Bar) & Vacuum

Inlet: 1" Diameter Product Feed

Outlet: Conical 3.5" Diameter Bottom Discharge

Drive System: Belt-Driven (Motor Not Included)

Applications:

Chemical Processing – Concentration and separation of chemical compounds

Pharmaceutical Production – Solvent evaporation and active ingredient concentration

Food & Beverage Industry – Concentration of liquid products and extracts

Industrial Solvent Recovery – Efficient removal of solvents from process streams

Biotechnology & Research – Purification and recovery of valuable compounds

What Products Would This Be Used For?

Chemical and pharmaceutical ingredient concentration
Evaporation of heat-sensitive liquids and solvents
Food and beverage concentrate production
Industrial solvent recovery and purification
Waste reduction in liquid processing
