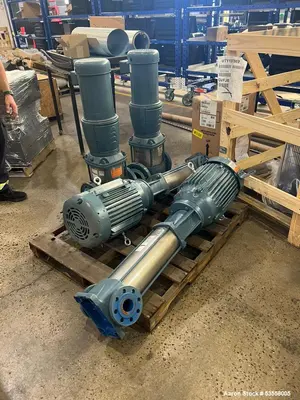

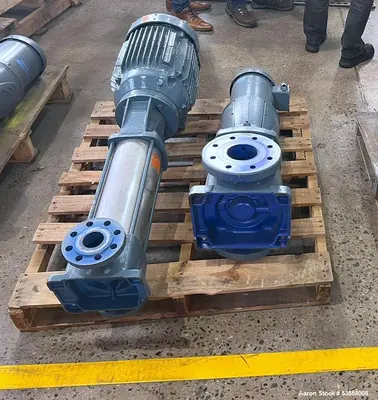

USED GOULDS 10SV13GK4F66N

Manufacturer Information:

Brand: Goulds

Model: 10SV13GK4F66N

Series: e-SV Stainless Steel Vertical Multi-Stage Pumps

Configuration: CI-304 (Cast Iron & 304 Stainless Steel)

Description:
The Goulds 10SV13GK4F66N e-SV Vertical Multi-Stage Pump is a high-performance stainless steel pump designed for low NPSH applications with a nominal flow rate of 53 GPM. It features 13 stages for high-pressure applications and is equipped with a 15 HP, 208-230/460V, 60 Hz, three-phase, 2-pole motor running at 3500 RPM. The motor is enclosed in a TEFC PE (Totally Enclosed Fan Cooled, Premium Efficient) housing, ensuring energy efficiency and durability. It comes with an EPR (Ethylene Propylene) shaft seal and 2-inch inlet and outlet connections, making it ideal for demanding industrial applications requiring high pressure and low net positive suction head (NPSH).
Specifications:

Model: 10SV13GK4F66N

Series: e-SV Stainless Steel Vertical Multi-Stage Pump

Material: Cast Iron - 304 Stainless Steel (CI-304)

Flow Rate: 53 GPM (Nominal)

Stages: 13

Connection Size: 2"

Motor Power: 15 HP

Voltage: 208-230/460V, 60 Hz

Motor Type: 2 Pole, Three-Phase

Motor Speed: 3500 RPM

Motor Enclosure: TEFC PE (Totally Enclosed Fan Cooled, Premium Efficient)

Shaft Seal: EPR (Ethylene Propylene)

NPSH Requirement: Low

Applications:

High-Pressure Industrial Water Supply
Boiler Feed & Condensate Return Systems
HVAC & Cooling Tower Systems
Chemical & Pharmaceutical Processing
Reverse Osmosis & Water Filtration
Food & Beverage Processing
Municipal & Wastewater Treatment
Irrigation & Agricultural Pumping
High-Pressure Washing & Cleaning Systems
General Industrial Liquid Transfer
