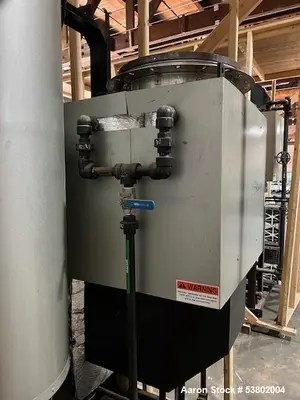

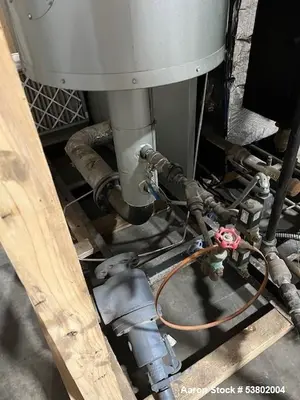

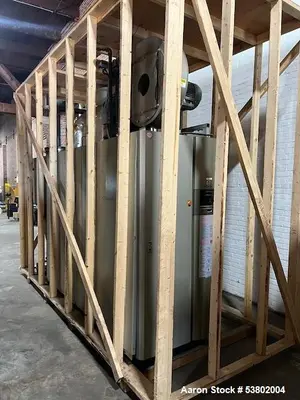

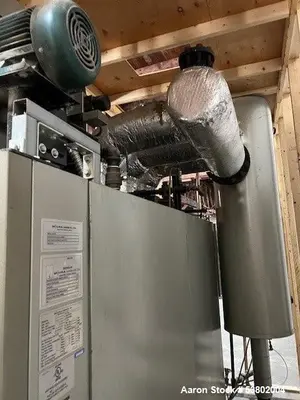

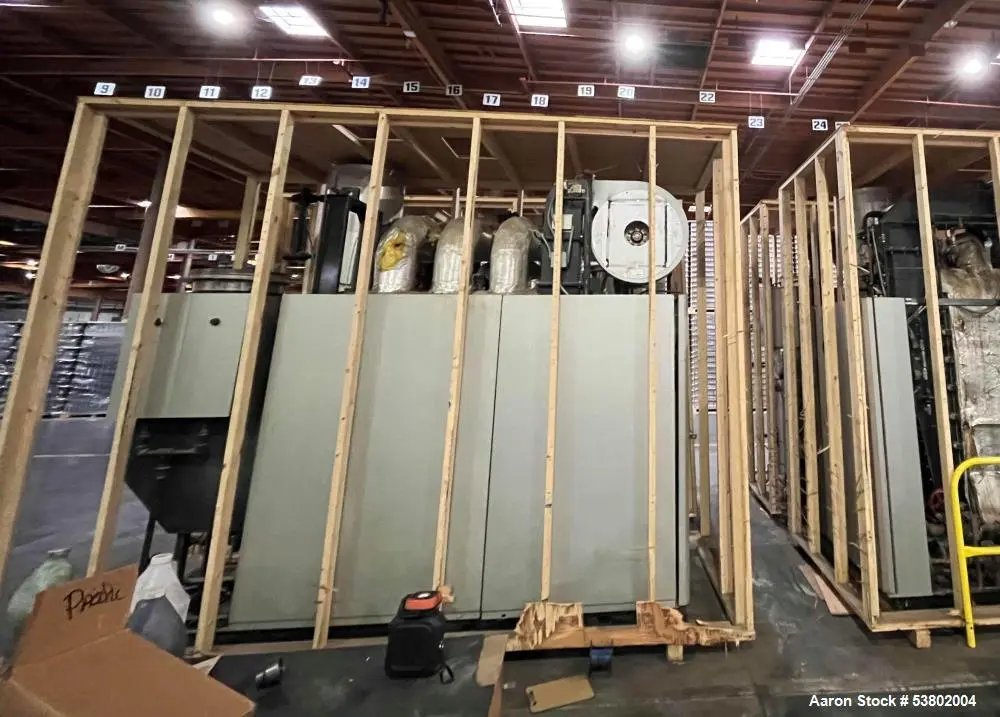

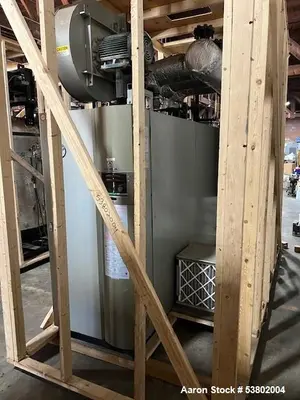

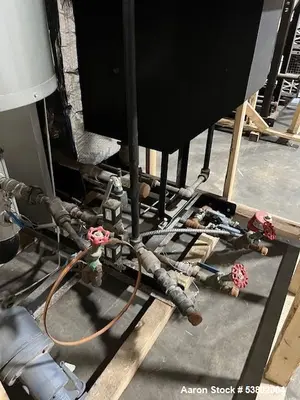

USED MIURA LXL-200SG-12

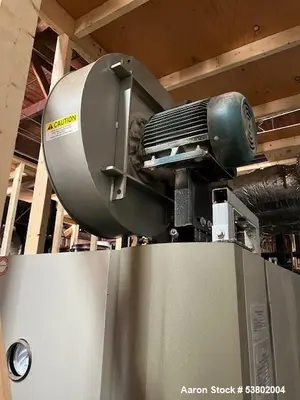

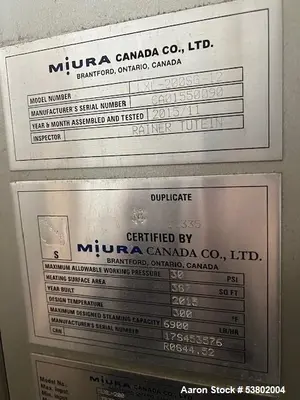

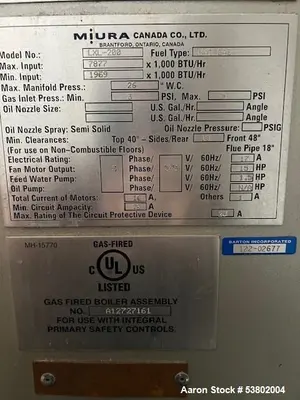

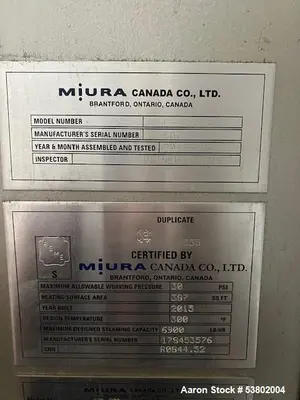

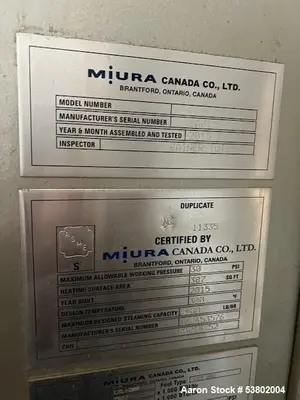

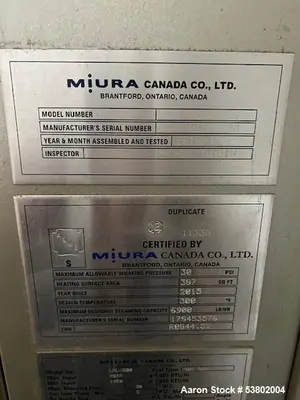

Used Miura LX Natural Gas Fired Steam Boiler, Model LXL-200SG-12. 200HP Capacity. Maximum allowable working pressure 30 psi. Heating surface area 367 square feet. Design temperature 300 degrees F. Maximum designed steaming capacity 6,900 LB/HR. Input 1,969 minimum to 7,877 maximum x 1,000 BTU/Hr. Maximum manifold press 26" W.C. Gas inlet pressure minimum 3 psi to maximum 5 psi. 15HP blower. 1.5HP feed pump. National Board# 11335, Serial# CA01550090, Built 2015. 3/60/575 Volt.

Used Equipment Facts About This Machine
Manufacturer Information
Brand: Miura
Model: LXL-200SG-12
Serial #: CA01550090
National Board #: 11335
Fuel Type: Natural Gas or Propane
Condition: Used
Boiler Type: High-Pressure, Gas-Fired, Modular Steam Boiler

Description
This Used Miura LXL-200SG-12 is a 200 BHP high-efficiency, high-pressure, gas-fired steam boiler designed for industrial-grade, continuous steam generation. Operating at 30 psi, it delivers 6,900 lb/hr of steam output with an 85% thermal efficiency. The boiler features a 387 sq. ft. heating surface, 3:1 turndown ratio, and dual fuel capability (natural gas or propane) with low emissions—NOx at 20 ppm (NG) / 25 ppm (Propane) and CO at 100 ppm. Its compact footprint and efficient combustion design make it suitable for demanding steam applications across a variety of sectors.

Specifications

Model: LXL-200SG-12

Boiler Horsepower (BHP): 200

Steam Output: 6,900 lb/hr

Operating Pressure: 30 psi

Turn-Down Ratio: 3:1 (33%)

Thermal Efficiency: 85%

Heat Input: 7,877,000 BTU/hr (7.877 MMBTU/hr)

Heating Surface Area: 387 sq. ft.

Fuel Compatibility: Natural Gas or Propane

Fuel Pressure Requirement: 3–5 PSIG

Excess Oxygen (Flue Gas): 5.0%

Flue Gas Temperature: 300°F

Emissions:

NOx: 20 ppm (NG), 25 ppm (Propane)

CO: 100 ppm

Operational Weight: 9,700 lbs

Shipping Weight: 8,900 lbs

Water Content (Operating): 95 gallons

Water Content (Flooded): 270 gallons

What Might This Be Used For?

Industrial steam heating systems

Food and beverage processing plants

Pharmaceutical steam sterilization

Textile finishing and dyeing processes

Hospital autoclaves and sterilization

Chemical and petrochemical steam requirements

Breweries and distilleries

Pulp and paper processing

Commercial laundry and dry cleaning

HVAC systems in large commercial facilities
