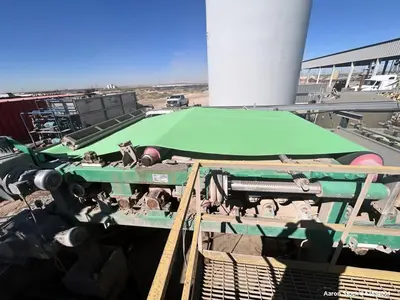

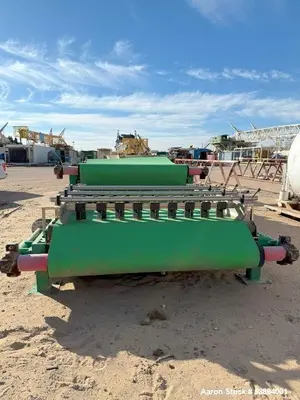

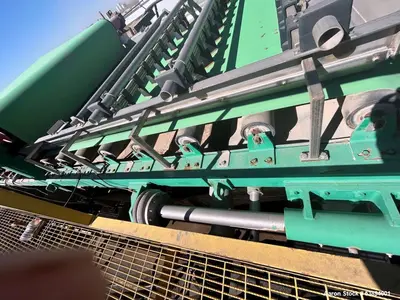

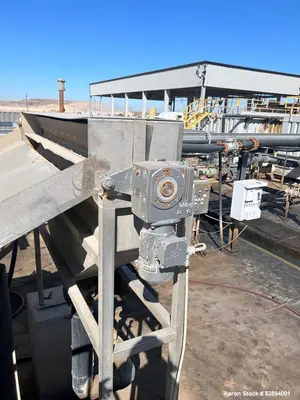

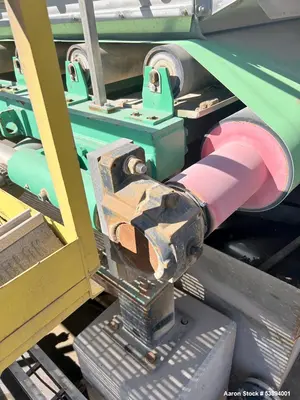

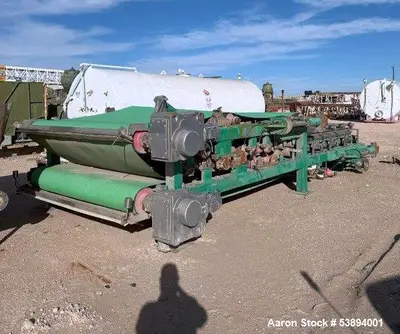

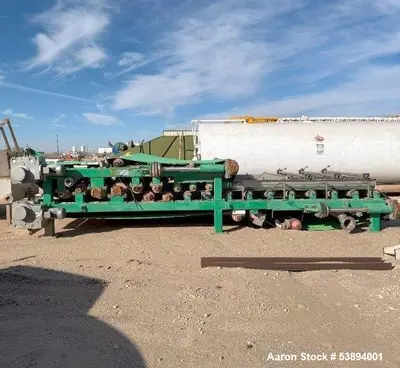

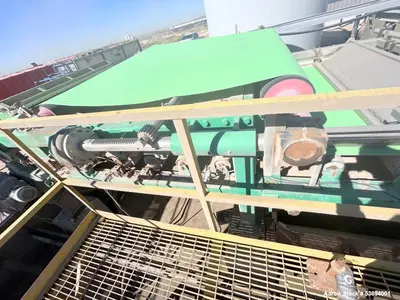

Used WSI 2.2 Meter Extended Gravity Twin Wire Mud Press, Model MM-2200-EXT

Used WSI 2.2 Meter Extended Gravity Twin Wire Mud Press, Model MM-2200-EXT Gravity. Designed and built to receive pre-processed conditioned" mud sludge flow and remove a major portion of the water (Filtrate) from the mud. The average design flow of the 2.2 meter unit is 250 gallons per minute (gpm). Unit functions to dewater sludge by entrapping a uniform thin layer of conditioned sludge between two endless, porous synthetic belts. The feed box receives conditioned mud sludge flow from the upstream sludge conditioning system and distributes it in a uniform layer over the belt as the belt moves the sludge layer forward from feed box onto the gravity zone. The sludge moving through gravity zone is initially dewatered as gravity pulls the filtrate from the sludge layer through the porous belt to the catchment pan below. The wedge zone entraps the gravity thickened sludge forming a sludge sheet between the two belts. Filtrate (liquid extracted from the sludge) is pressed from the entrapped sludge cake as it traverses the length of the wedge zone to the Doctor blades. Mechanical pressure is applied to the belts to force a major portion filtrate from the sludge as it traverses the machine experiencing ever increasing pressure along its path to the dried sludge discharge point. Dry weight is 35,000 lbs; Serial # WBP-2.2M-25.0-004, New in 2017.

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: WSI

Model: MM-2200-EXT Gravity

Serial Number: WBP-2.2M-25.0-004

Year: 2017

Description
The WSI 2.2 Meter Extended Gravity Twin Wire Mud Press is an industrial-grade dewatering system designed to remove a significant portion of water from pre-processed, conditioned mud sludge. With an average design flow rate of 250 gallons per minute (GPM), this unit operates by entrapping a uniform layer of conditioned sludge between two endless, porous synthetic belts. It utilizes gravity, mechanical pressure, and filtrate extraction to progressively dewater sludge, ensuring efficient sludge separation and reduction in moisture content before final discharge.
Specifications

Unit Type: Twin Wire Mud Press

Processing Width: 2.2 meters

Flow Rate: 250 GPM

Belts: Porous synthetic endless belts

Dewatering Process: Gravity zone, wedge zone, mechanical pressure application

Filtrate Removal: Via doctor blades and pressure application

Dry Weight: 35,000 lbs

Construction: Heavy-duty industrial-grade frame and components

Function: Water separation and sludge dewatering

Applications

Wastewater treatment plants
Industrial sludge dewatering
Mining and mineral processing
Oil and gas sludge management
Paper and pulp industry
Chemical processing waste management
Food processing wastewater treatment
Municipal sludge treatment
Agricultural waste processing
Environmental remediation projects
